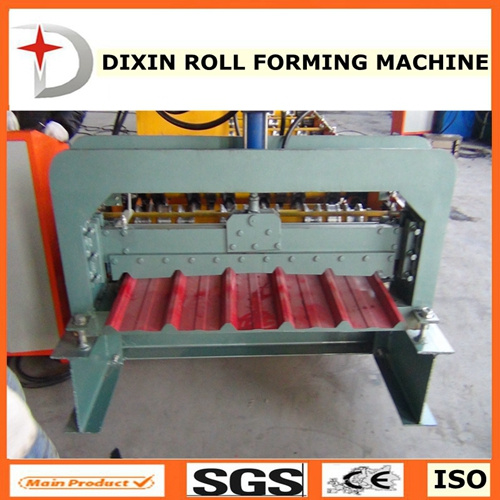

DIXIN color/galvanized steel roofing sheet roll forming machine
Why Choose us/Simple advantage in words
1 | Direct Factory in China Since 2008 |
2 | Good design and professional engineers more than 20 years experience |
3 | CE SGS BV AS--- authentication available |
4 | Overseas service available/one year quality guarantee |
5 | Good credit |
6 | Many other designs available and special design available |
Technical Parameters
1 | Name | tile making machine |
2 | Main motor power | 4kw |
3 | Hydraulic motor power | 4kw |
4 | Hydraulic Pressure | 10-12MPa |
5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) |
6 | Control System | PLC Delta Inverter |
7 | Main Frame | 300mm H-Beam |
8 | Backboard Thickness | 16mm |
9 | Chain Size | 1inch |
10 | Feeding Material | color steel coils |
11 | Feeding Thickness | 0.3-0.8mm |
12 | Feeding Width | 1200mm |
13 | Effective width | 1030mm |
14 | Productivity | 8-15m/min |
15 | Roll Station | 13rollers |
16 | Roller Diameter | 70mm |
17 | Roller material | 45# steel |
18 | Cutter material | Cr12 , quenched |
19 | Cr-Plating Size | 0.05mm |
20 | Overall Size | 6500×1400×1500mm |
21 | Total Weight | 4.0T |
22 | Components | Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set |
23 | Workflow | Manual decoiling----feeding and guiding----roll forming----cut to length----run out table |
24 | Package | Main machine is nude in the container |
25 | Minimum order quantity | 1 set |
26 | Payment terms | T/T(30% T/T pay in advance, the remaining 70% pay before ship) |
27 | Delivery time | 30 working days later after receiving the deposit |
We can design machine according to customer's panel profile.If you have any interest or question,please feel free to contact me
Online contact will get big discount!
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping and sandwich panel forming machine.
We exports to most of the world. USA, UK, Africa, Russia, Indian and many other countries.
The davantage of our factoy is that
1. Many panel profile drawing machine designs available
2. Good quality machine
3. Good communication and good after sale service
In the next five years, we provide much better quality machine at reasonable price but competitive than Other supplier. So we can earn more market in the world.
Pls contact for more business.
