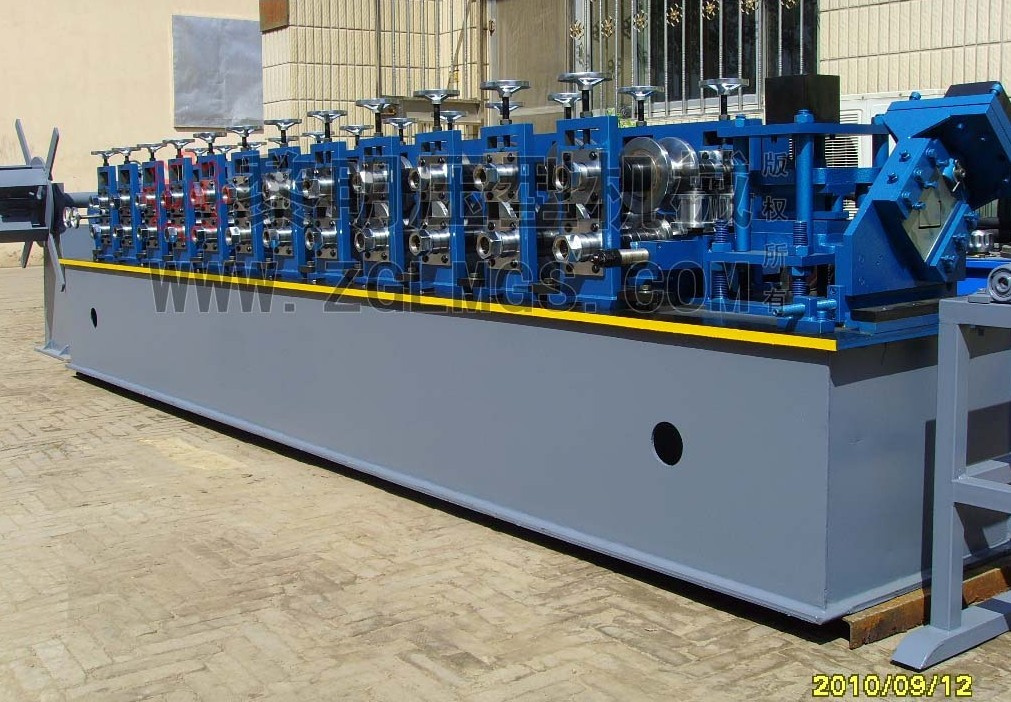

Ceiling Keel Cold Roll Forming Machine
Specification:
Suitable for process: Colored steel plate, galvanised board.
Width of plate: 1250mm
Rolling material: Forging steel 45#
Material of the cutting blade: Cr12
Power: Moulding core: 4kw+4kw; Cutting part: 4kw
Thickness: 0.3-1.0mm
Productivity: 14-18m/min
Diameter: 70-80mm
Weight: ABOUT 5680KG
Voltage: 380V 50Hz
Equipment components:
Man-uncoiler, roll forming machine, computer control system, hydraulic control system, cutting system.
The process of the production line:
Feeding table---forming machine---forming cutting device---hydraulic system---computer control system--- discharge table
The option: Manaual uncoiler or automatic uncoiler
The features of the machine:
Lower cost
High efficiency
Reliable working
Low energy consumption
The honour of the machine:
ISO9001: 2008.
Consumer-trusted Enterprise in Hebei province.
Consumer-trusted Enterprise in Cangzhou City.
3.15 quality, credibility, satisfied with the good faith commitment to the consumer units.
Liming Stamping Form Machine Manufactured Co., is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffic-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, Cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of line of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.
Liming has advanced production equipment. Engineering personnel and technicians of Bohai are rich in experience of designing, developing, and manufacturing of machineries, They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high flexibility and low production cost.
