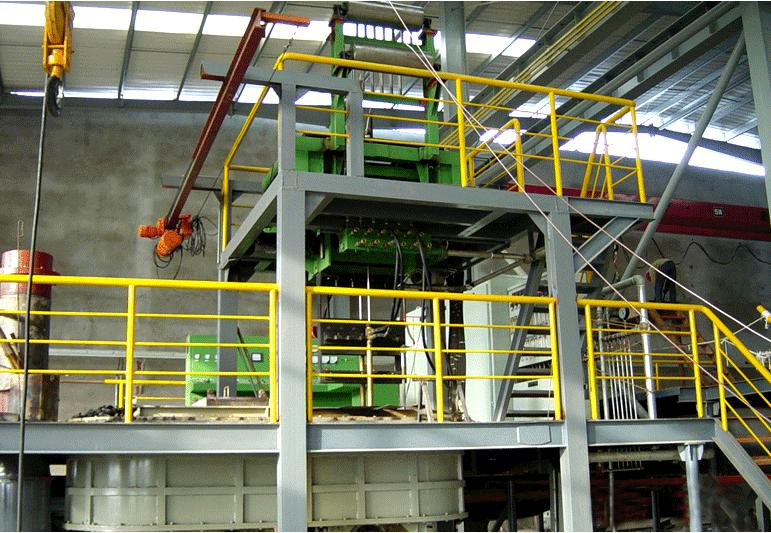

CCM Continuous Casting Machine

CCM Continuous Casting Machine
Price: Negotiable
Min Order: 1
CCM R6.5m alloy steel alloy steel casting machine

Use:
R6.5m continuous casting machine produces alloy steel, stainless steel billet and rectangular billet, is divided into two two-plane, 3-3, 4-4 flow, production section for the 150 x 150mm, 150 x 430mm, and, Arc furnace, LF refining furnace with capacity of alloy steel structure, bearing steel and spring steel, and EAF, AOD with, can produce stainless steel.

Structural Features:
A hight level of equipment, metallurgical length, broad roll, the driving force, apply a wide range of single-stream up to 15-20 million tons of annual output

Components:
Turret charter or steel
Central package
Stopper hoist device
Central charter
Central package put overflow tank
Cover and cover mold
Mold
Vibration device
The hoisting operation me support device
The cold spray device
Slab-oriented paragraph
Straightening machine
Dummy Bar
Dummy-storage devices
Track
Cooling bed
Pusher-machine
Water System
The cold pumping steam system
Electronic Control
Hydraulic static

R6.5m Casting Machine Main Technical Parameters:
Caster models: Correction models for the entire arc
Basic arc radius: 6.5M
Flow of: 2, 3, 4
Single-output: 15~20 million tons
Casting section: 150*150~200*430mm2
Metallurgical length: ~22M
Quantitative length: 3~9M
Working speed: 2m/min
The maximum speed: 4m/min
Single-hour production of steel: 15~20 tons
Correction way: Continuous correction mode
Dummy Bar: Steel(flexible) Dummy Bar
Power Consumption: 8 Degree/Ton
Prod Model: CCM R6.5m
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shanghai Electrical Machinery Group Import & Export Co., Ltd. is the largest manufacturing and export base for small & medium-sized electric Machines in China. Founded in February 1956, as China's first specialized electric machine company, SEMC is now one of the national first-class big enterprise which has the right to deal with foreign trade of itself.

SEMC at present owns 25 factories and one science & education center (including a research institute and a vocational college) in which there are 16 state enterprise, 4 joint ventures and 5 collective enterprises, occupying a total area of 615, 000m³ With the floor space of 529, 000m² And the original valuse of fixed assets being RMB yuan 518 million. SEMC has 18, 000 employees, among whcih are 1, 422 technicians and engineers and 1, 719 administrative personnel, making up almost 7, 9% and 9.5% of the total staff members respectively.

SEMC has a long history, whose most factories have seventy or eightyyear's manufacturing experience. It has formed a huge family of products with 22 categories, 390 series and over 8, 000 specifications. Besides, the company produces lots of hi-tech products such as accelerator, driving mechanism for nuclear power station and so on. It boasts diversified products and its products have not only been sold and well received in domestic marker, but also in 69 countries and regions such as USA, Japan, Russia, France, Germany, etc. SEMC has established broad business links with many world-famous companies.

SEMC warmly welcomes both domestic and foreign customers to establish and develop business relationships and will assure you of the quality products and satisfactory services.
