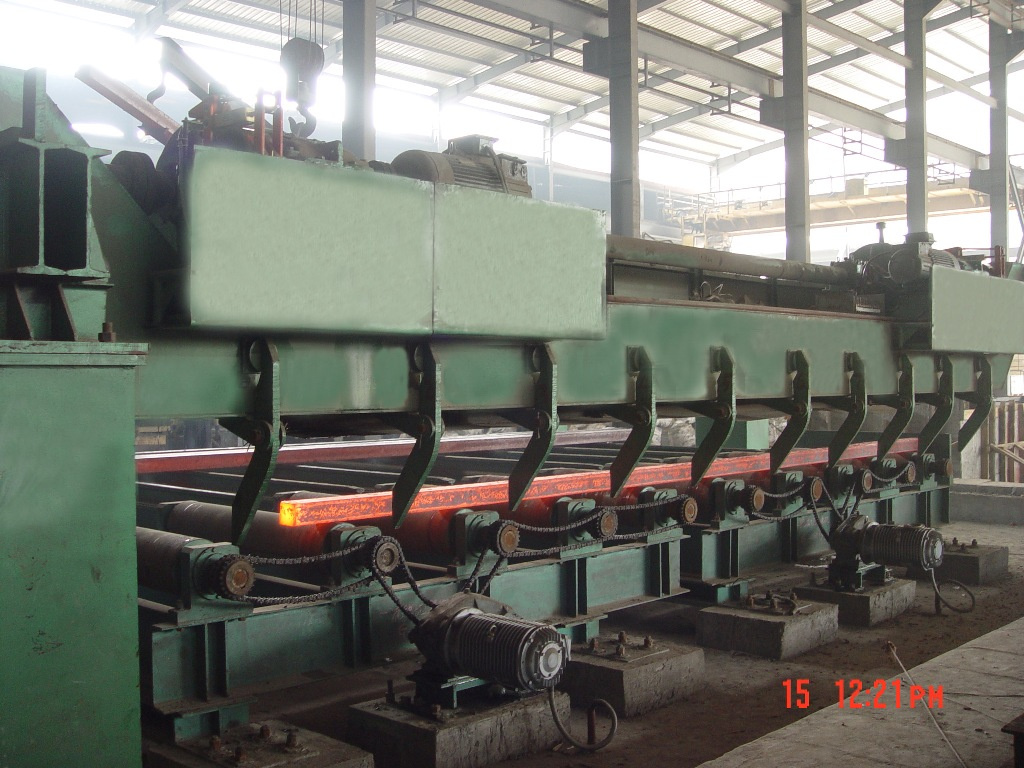

Continuous Casting Machine (Five small Caster)
Use:
This model is for small IF molded with a small furnace steel mills to meet the national industrial policy to adaptation and specialized development of a small caster. Mainly used in the production of 80 x 80, 90 x 90, 100 x 100, 120 x 120 billet.
Structural Features:
Equipment a low profile, small footprint, production cross-section of small, low production costs, less investment in equipment.
Components:
Turret charter or steel
Central package
Stopper hoist device
Central charter
Central package put overflow tank
Cover and cover mold
Mold
Vibration device
The hoisting operation me support device
The cold spray device
Slab-oriented paragraph
Straightening machine
Dummy Bar
Dummy-storage devices
Track
Cooling bed
Pusher-machine
Water System
The cold pumping steam system
Electronic Control
Hydraulic static
R5.25m Casting Machine Main Technical Parameters:
Caster models: Correction models for the entire arc
Basic arc radius: 5.25M
Folw of: 1
Single-output: 3~5 million tons
Casting section: 80*80~120*120mm2
Metallurgical length: ~10M
Quantitative length: 3M
Working speed: 1.8m/min
The maximum speed: 2.5m/min
Hour steel production capacity: 8-12 tons
Correction way: Continuous correction mode
Dummy Bar: Steel(flexible) Dummy Bar
A high degree of caster: 7m
Footprint: 5 x 20 m2
The installed capacity of: 37KW+60(Pumps)
Power Consumption: 6 Degree/Ton
