Cardan Shaft for Steel Pipe Equipment
Price: |
US $ 1650-2800/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
T/T |

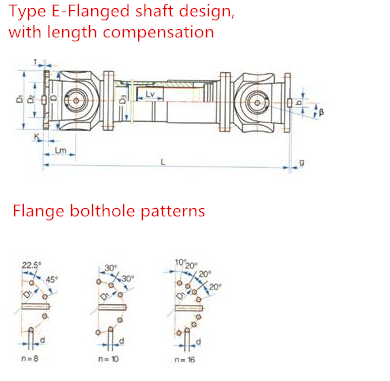

Ten years, our company has focused on the research and development, design and manufacturing of the universal shaft of the steel pipe equipment. Cardan shaft Weicheng universal shaft production is widely used in domestic large steel enterprises, such as: Tianjin Pipe Group Co. Ltd.; Jiangsu ERON Steel Tube Co. Ltd., Hubei Xinye steel company and other large domestic steel production enterprises; now it is out of the country, the products are exported to Europe, North America and Southeast Asia and other countries. Company design of universal shaft in the Assel pipe mill, three roll pipe mill, steel tube straightening machine and other equipment, such as the production of special harsh environment, anti vibration, anti impact, anti water and salt corrosion, service life is longer, do not need more maintenance, increase the maintenance cycle of the universal shaft. We can also according to customer requirements to customize the special connection mode of universal shaft, high coaxial, flexible joints, easy installation, perfect after-sales service.The following table for SWC Medium-sized Universal Shaft Parameters. DesignsData and Sizes of SWC Series Universal Joint CouplingsType | Design Data Item | SWC160 | SWC180 | SWC200 | SWC225 | SWC250 | SWC265 | SWC285 | SWC315 | SWC350 | SWC390 | SWC440 | SWC490 | SWC550 | SWC620 |
A | L | 740 | 800 | 900 | 1000 | 1060 | 1120 | 1270 | 1390 | 1520 | 1530 | 1690 | 1850 | 2060 | 2280 |
LV | 100 | 100 | 120 | 140 | 140 | 140 | 140 | 140 | 150 | 170 | 190 | 190 | 240 | 250 |
M(kg) | 65 | 83 | 115 | 152 | 219 | 260 | 311 | 432 | 610 | 804 | 1122 | 1468 | 2154 | 2830 |
B | L | 480 | 530 | 590 | 640 | 730 | 790 | 840 | 930 | 100 | 1010 | 1130 | 1340 | 1400 | 1520 |
M(kg) | 44 | 60 | 85 | 110 | 160 | 180 | 226 | 320 | 440 | 590 | 820 | 1090 | 1560 | 2100 |
C | L | 380 | 420 | 480 | 500 | 560 | 600 | 640 | 720 | 782 | 860 | 1040 | 1080 | 1220 | 1360 |
M(kg) | 35 | 48 | 66 | 90 | 130 | 160 | 189 | 270 | 355 | 510 | 780 | 970 | 1330 | 1865 |
D | L | 520 | 580 | 620 | 690 | 760 | 810 | 860 | 970 | 1030 | 1120 | 1230 | 1360 | 1550 | 1720 |
M(kg) | 48 | 65 | 90 | 120 | 173 | 220 | 250 | 355 | 485 | 665 | 920 | 1240 | 1765 | 2390 |
E | L | 800 | 850 | 940 | 1050 | 1120 | 1180 | 1320 | 1440 | 1550 | 1710 | 1880 | 2050 | 2310 | 2540 |
LV | 100 | 100 | 120 | 140 | 140 | 140 | 140 | 140 | 150 | 170 | 190 | 190 | 240 | 250 |
M(kg) | 70 | 92 | 126 | 165 | 238 | 280 | 340 | 472 | 660 | 886 | 1230 | 1625 | 2368 | 3135 |
| Tn(kN·m) | 16 | 22.4 | 31.5 | 40 | 63 | 80 | 90 | 125 | 180 | 250 | 355 | 500 | 710 | 1000 |
| TF(kN·m) | 8 | 11.2 | 16 | 20 | 31.5 | 40 | 45 | 63 | 90 | 125 | 180 | 250 | 355 | 500 |
| Β(°) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| D | 160 | 180 | 200 | 225 | 250 | 265 | 285 | 315 | 350 | 390 | 440 | 490 | 550 | 620 |
| Df | 160 | 180 | 200 | 225 | 250 | 265 | 285 | 315 | 350 | 3690 | 440 | 490 | 550 | 620 |
| D1 | 137 | 155 | 170 | 196 | 218 | 233 | 245 | 280 | 310 | 345 | 390 | 435 | 492 | 555 |
| D2(H9) | 100 | 105 | 120 | 135 | 150 | 160 | 170 | 185 | 210 | 235 | 255 | 275 | 320 | 380 |
| D3 | 108 | 114 | 140 | 159 | 168 | 180 | 194 | 219 | 245 | 273 | 299 | 325 | 402 | 426 |
| Lm | 95 | 105 | 110 | 125 | 140 | 150 | 160 | 180 | 195 | 215 | 260 | 270 | 305 | 340 |
| K | 16 | 17 | 18 | 20 | 25 | 25 | 27 | 32 | 35 | 40 | 42 | 47 | 50 | 55 |
| T | 4 | 5 | 5 | 5 | 6 | 6 | 7 | 8 | 8 | 8 | 10 | 12 | 12 | 12 |
| N | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 16 | 16 | 16 | 16 |
| D | 15 | 17 | 17 | 17 | 19 | 19 | 21 | 23 | 23 | 25 | 28 | 31 | 31 | 38 |
| B | 20 | 24 | 32 | 32 | 40 | 40 | 40 | 40 | 50 | 70 | 80 | 90 | 100 | 100 |
| G | 6.0 | 7.0 | 9.0 | 9.0 | 12.5 | 12.5 | 12.5 | 15.0 | 16.0 | 18.0 | 20.0 | 22.5 | 22.5 | 25 |
| MI(Kg) | 2.57 | 3 | 3.85 | 3.85 | 5.17 | 6 | 6.75 | 8.25 | 10.6 | 13 | 18.50 | 23.75 | 29.12 | 38.08 |
| Size | M14 | M16 | M16 | M16 | M18 | M18 | M20 | M22 | M22 | M24 | M27 | M30 | M30 | M36 |
| Tightening torque(Nm) | 180 | 270 | 270 | 270 | 372 | 372 | 526 | 710 | 710 | 906 | 1340 | 1820 | 1820 | 3170 |
1. Notations:
L=Standard length, or compressed length for designs with length compensation;
LV=Length compensation;
M=Weight;
Tn=Nominal torque(Yield torque 50% over Tn);
TF=Fatigue torque, I. E. Permissible torque as determined according to the fatigue strength
Under reversing loads;
β=Maximum deflection angle; MI=weight per 100mm tube2. Millimeters are used as measurement units except where noted;
3. Please consult us for customizations regarding length, length compensation and
Flange connections.
Prod Model: |
Cardan Shaft |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Colour: |
Orange Black Yellow |
OEM/ODM: |
Available |
Load: |
Drive Shaft |
Stiffness & Flexibility: |
Stiffness / Rigid Axle |
Axis Shape: |
Straight Shaft |
Shaft Shape: |
Hollow Axis |
Wuxi Wei Cheng driveshaft Co., Ltd. Has been focused on the research and development, production and sales of the universal shaft 15 years. Annual production of 15000 sets of universal shaft.
Company independent research and development of light, medium, short, heavy universal shaft are to achieve the leading domestic level, the product is not only supporting the domestic large and medium-sized enterprises, but also exported to India, Vietnam, Laos, Ukraine, Russia, Germany, the United Kingdom and other countries.
In the fifteen years, the company has accumulated rich experience, learning foreign advanced technology, and to absorb and use, the universal shaft for many times to improve, so as to improve the structure, performance is significantly improved. Firm belief: "innovation, optimize the structure, persevere" creating a high quality universal shaft excellent production enterprises. We always adhere to the quality of ISO9001 system management and control quality, from the details of the process, and to achieve processing equipment, special machine, CNC product quality is rapidly increased, not only won the majority of customers reputation, but also get peer recognition.
We continue to strive for: "to create the greatest value for customers, to build the best platform for employees", we must realize the mutual benefit and win-win between customers and enterprises.
