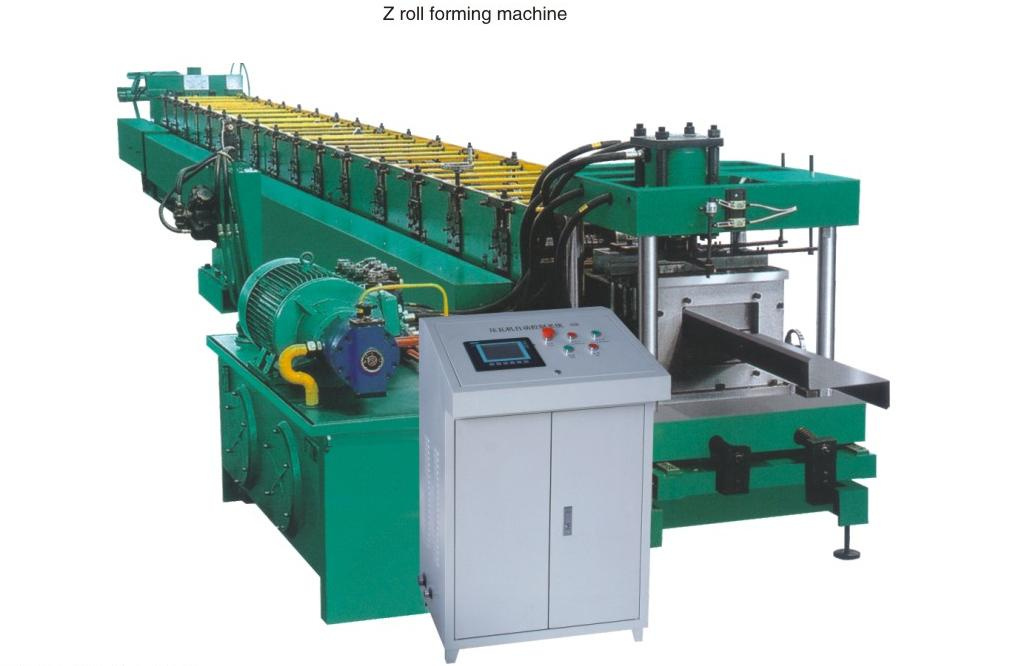

Z purline roll forming machine
Detailed Product Description
Features:
1. Can produce many sizes of C shaped purlins
2. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C forming system, punching equipment, post cutting equipment, hydraulic station, and controlling system
3) Fixing dimensions: 23, 000 x 2, 400 x 1, 400mm
4) Total weight: About 13, 000kg
5) Controlling system: PLC
6) Main motor power: 15kW
7) Hydraulic station power: 15kW
8) Quantity of stands: About 16 groups
9) Working speed: 8, 000 - 10, 000mm/min
10) Hydraulic pressure: 18 - 20MPa
11) Material of roller die: GCr15 bearing steel with quenched treatment
12) Material of cutting die: Cr12 mould steel with quenched treatment
13) Product range: All the types from 100 to 250
14) C purlin mainly use hot roll steel strip or hot DIP galvanized steel strip at thickness 1.5 - 3.2mm; It is roll formed by C shape roll forming machine
15) Working flow: Decoiling the sheet-sheet guiding -coil strip leveling roll forming-punching for horizontal hole-punching for vertical hole-measure length-cutting the panel-panels to the supporter
16) The products of C shape purlin forming machine have excellent anti-bending property and are easy to install
17) They are widely used as the supporter of roof and wall in large scale and MID-scale construction, such as factories, warehouses
Service:
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
Suitable accommodation and pay the service fee to the technician with $50/days.
|
Suitable to process |
Hot and cold rolling plate |
|
Thickness of the plate |
13-30mm |
|
Width of the plate |
80-300mm |
|
Productivity |
6-8m/min |
|
Rollers |
13 |
|
Rolling material |
Forging steel 45# |
|
Diameter of the roller |
Φ 90mm |
|
Mould material |
Bearing steel, lathe-turning , 63° quenching, hard chrome plating |
|
Frame |
400H |
|
Specifications of frame |
Q235 |
|
Side board thickness |
20mm |
|
Drive |
1inch chain |
|
Reducer |
NO. 8(speed ratio1: 76) |
|
Control system |
PLC |
|
Size |
10*1.5*1.5m |
|
Weight |
7t |
|
Main motor power |
15kw |
|
Hydraulic power |
5.5kw |
|
Voltage |
380V OR 220V |
|
