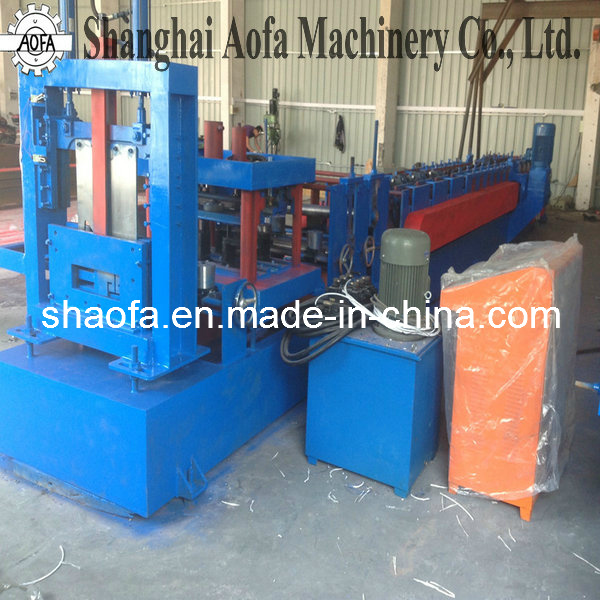

Automatic C Purlin Roll Forming Machine (AF-C80-300)

Automatic C Purlin Roll Forming Machine (AF-C80-300)
Price: US $ 35000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T
Contact Supplier
Shanghai Aofa Machinery Limited Company
Showroom Product Company Profile
Shanghai Automatic C purlin roll forming machine
C-shaped purlin is good in bending resistance, straightness, and it can cut, punch automatically, it is very easy and convenient to use. It can be used as bearing structure in big and medium sized building, such as factories, warehouses, garages, hangars, gyms, exhibitions, theater and so on.

Working flow:
Decoiler------guiding------leveling------roll forming-------punching-----cut to length-----output table

Machine components:
Uncoiler
Punching device
Roll Forming Unit
Cutting device
PLC Automatical Controll Cabinet
Product Run Out Table

Techincal Description
Items  spc.  qty.
Decolier (1)Max. Width: 400 mm
(2)Inner Diameter: Φ350 – Φ400 mm
(3)Out Diameter: 1500 mm

 		  1set
Roll forming device (1)Rolled Material: Cold Rolled Steel Sheet
(2)Material Thickness: 1-3 mm
(3)Rollers: 13 Group
(4)Material for Rollers: GCr15 steel
(5)Material for shaft: GCr15 steel
(6) Hardness for Heat Treatment: HRC55 – 60
(7)Diameter of shaft: 80mm
(8)Frame panel thickness: 16mm
(9)Bottom frame: 36# H-section steel
(10)Motor Power: 15 kw
(11)Speed Reducer Model: QZ 400
(12)Rolling Speed: 2 – 8 m / min; Adjustable
(13)Driven type: 2"Chain

 		  1set
Punching device (1)Adopted with 3 independent 4 pillar hydraulic punches.
(2)Length for Punch Table: 6 m
(3)Motor for Hydraulic Punch: 5.5 kw
(4)Hole-Punching Modular: 3 Pics		 1set
Cutting device (1)Material for Cut-Off Modular:Cr12 steel
(2)Hardness for Heat Treatment:HRC59 – 61
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off
(4)Cut-Off Modular:1 set
(5)Motor for Hydraulic Stand: 2.2 kw

 		  1set
Output table  simple output table for finished product  1set
Prod Model: AF-C80-300
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Shanghai Automatic C Purlin Roll Forming Machine
Machine Color: as Require
Machine Size: 13m*1.2m*1.4m
Machine Weight: 6tons
Delivery Time: 35days
Warranty: 12monthes
Usage: Construction
Control System: PLC
Cutting Type: Hydraulic
Driven Type: Chain
Forging Forming Method: Mold Forging
We mainly supply high quality roll forming machine. We have achieved good performance up to now, sincerely welcome businessmen overseas to establish a long-term cooperation to create a beautiful tomorrow!
Our factory mainly produce all kinds of roll forming machine, for example, rofo sheet roll forming machine, c purlin roll forming machine, glazed tile roll forming machine, deck floor roll forming machine, sandwich panel production line and so on.
Our factory is established form 2010, up to now, we have sold machines to Canada, Bolivia, South Africa, Dubai, India, Russia and many other countries,
Hope we can cooperate happily
