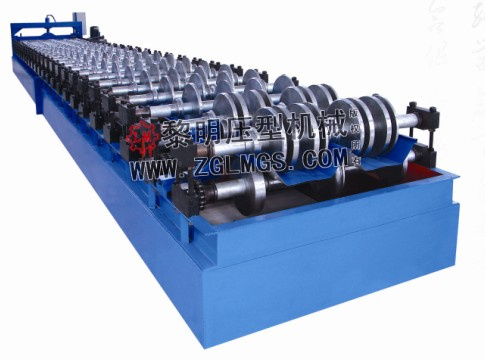

Apical Teeth Roll Former LM-666a
1. Technical parameter of product line
Suitable process material: Colored steel sheet, aluminium steel sheet, and galvanized steel sheet
Applied slab thickness: 0.2---1.2mm
Chargein width: 1000mm
Line speed: 16-18m/min
Roll diameter: 80mm
Dimension: 11.5m*1.9m*1.4m
Weight: 5t
Power: 4kw
Hydraulic station power: 4kw.
2. Processing flow:
Decoiling----loading----molding----cutting----off-discharging
3. Equipment parts
@Feeding platform
@Automatic shearing system
@Hydraulic system
@Computer control system (imported computer)
@High-precision automatic counter
@Productivity: 10-18m/min, 3500 m2/8h
4. Optional equipment:
@Manual uncoiler frame in different tons
@Hydraulic automatic uncoiler.
Liming Stamping Form Machine Manufactured Co., is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffic-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, Cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of line of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.
Liming has advanced production equipment. Engineering personnel and technicians of Bohai are rich in experience of designing, developing, and manufacturing of machineries, They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high flexibility and low production cost.
