Main Components:
1. Manual Decoiler
2. Roll forming machine
3. PU foaming & injecting Device
4. Punching machine
5. Automatic tracking cutter
6. Product table
7. PLC control Cabinet
Component Specifications:
1. Decoiler: Manual decoiler, capacity 3 tons, coil inner diameter according to user's demand.

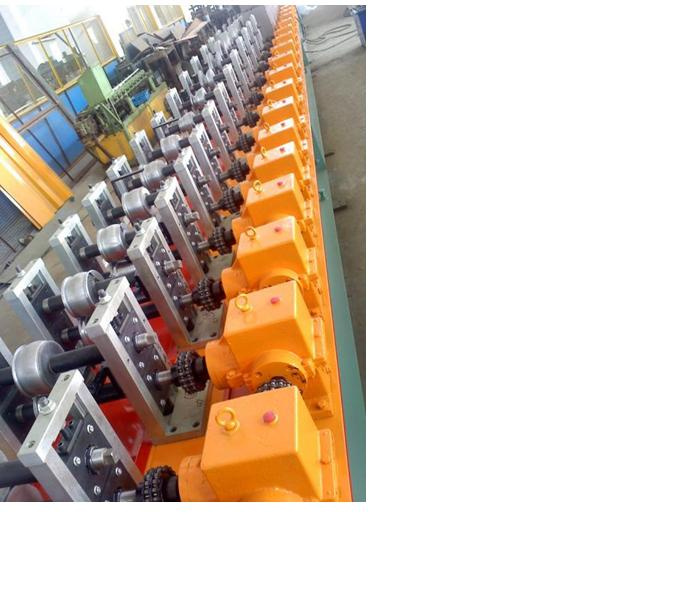

2. Roll forming machine:
1) Suitable aluminum coil thickness: 0.3mm, 0.35mm, or other
2) Roll forming: 36 stands
3) Roll shaft: High grade 45# steel material(precision machining, heat treatment)
4) Roller material: GCr15, quenching and electroplating
5) Main motor power: 5.5KW
6) Way of drive: 1.0'' chain transmission
7) Screw and bolt material: SS304
8) Wall panel thickness: 20mm
3. PU foaming & Injecting Device:
1) Low pressure perfusion machine, flux adjustable
2) Use imported high precision nozzle
3) Automatic heating, constant temperature
4. Punching Machine: Punching holes according to user's need. Hydraulic station power 3kw, punching moulds material Cr12
5. Automatic Tracking Cutter:
1) Pneumatic compaction and replacement, flying cutting without stopping machine, automatically controlled by PLC system
2) Motor power: 1.5kw
3) Use imported high grade alloy blade, high quality & precision cutting
6. Product table: Simple roll table, 4 meter length
7. Control cabinet:
1) Outline: 700mm x 300mm x 1000mm
2) Panasonic PLC system, touch screen operation
3) Control the whole line like speed, cutting length, quantity, etc
