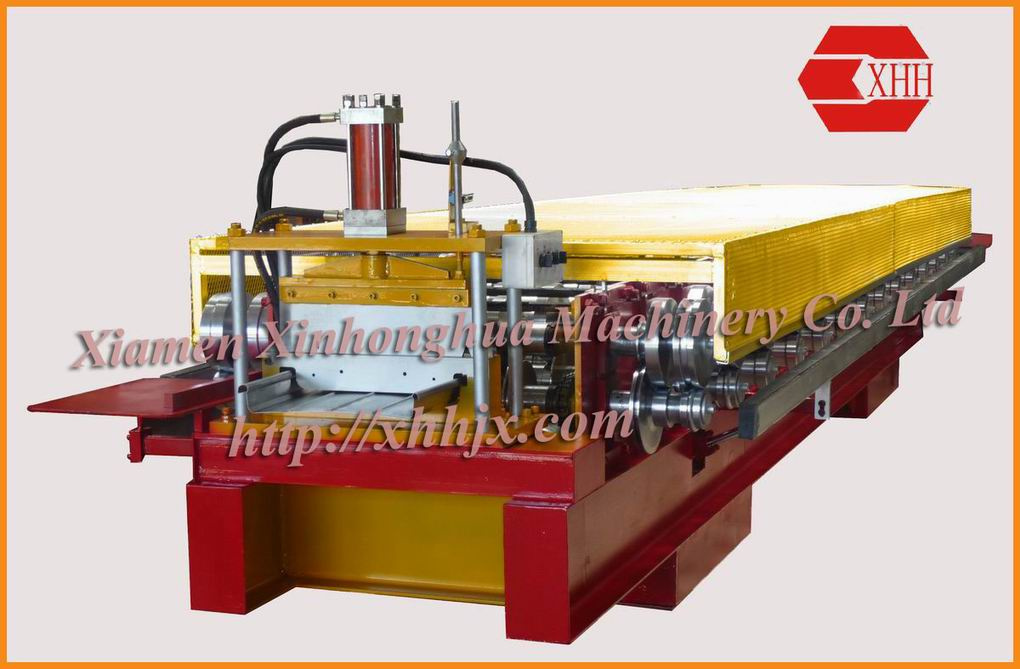

YX65-400-425 Al-Mg-Mn Sheet Standing Seam Roofing Machine, Forming Machine and Roll Forming Machine:
Main Accessories:
A. Main roofing forming machine;
B. 5 tons manaul decoiler;
C. Hydraulic system;
D. PLC computer controlling system;
E. Hydraulic Forming Cutter (2 sets, one for YX65-400, another one for YX65-425);
F. Protective cover;
G. Run out table(3PCS);
H. 20'FT Container (mark your company name and logo);
I. Auto seamer (2 sets);
J. Manual seamer (2 sets);
K. Oparetion Manual.
|
1. |
Size |
5800*1600*1400mm |
|
2. |
Weight |
7000KGS |
|
3. |
Motor Power |
7.5KW*2 sets |
|
4. |
Hydraulic Power |
2.2KW |
|
5. |
Voltage |
380 V/60HZ/3PH |
|
6. |
Forming Steps |
13 |
|
7. |
Forming Speed |
8-14m/min |
|
8. |
Effective Width |
300mm,400mm,500mm |
|
9. |
Material Width |
470mm,575mm,680mm |
|
10. |
Material of AL-Mg-Mn,Galvanized Sheet Thickness |
0.4-1.0mm |
|
11. |
Material of Colored Prepainted Sheet Thickness |
0.5-0.8mm |
|
12. |
Material for All Roller |
high grade no.45 forged steel,plated hard chrome and polished the rollers |
Established in 2004, Xiamen Xinhonghua Machinery Co., Ltd which is load in nice island city of Xiamen is specialized in manufacturing roll forming machines with hydraulic systems and PLC computer controlling systems. Our company has advanced technologies and great experience in the R&D, manufacture, installation, testing and training.
Our company can supply a wide range of Al-Mg-Mn panel forming machines, standing seam roofing machines, C/Z shaped Auto full adjustment purline machines, tapered-shaped standing seam roofing machines, colored roof panel machines, glazed tile machines, shaft forming machines, rolling door machines, flattening machine with slitting and cutting device, floor decking machines, highway guardrail machines, auto adjustment curving machine and hydraulic bending machines.
We enjoy a good reputation with the enterprise spirit of "Innovation chases the development; Management earns benefit". We insist on the service philosophy of "Satisfying our customers' needs".
Our products sell well at home, and are exported to clients in the Philippines, Indonesia, India, Malaysia, Ameria, Dubai, Singapore, Brazil, Turkey, Canada, Africa, Tailand, Columbia, the Middle East and other countries and regions.
