| Prod Model: |
JJM-R |
| Markets: |
South America,Eastern Europe,Mid East |
| Type: |
Metal Rolling&Drawing Machine |

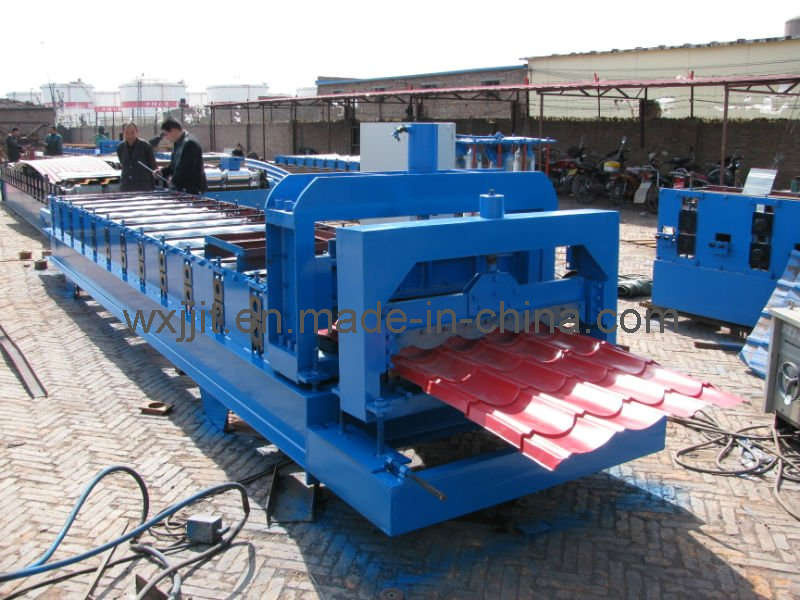

Product Description
Product No.: JJM828-1035
Size(m): 7*1.5*1.3
Weight: 3T
Capacity: 2~3m/min
Quality: ISO9001: 2000
Technical parameter:
Material: Galvanized sheet or colored armor plate
Equipment operation: Automatically
Votage: AC380/50-60Hz
Number of roller: 14
Thickness of sheet (mm): 0.3-0.8
Material width mm: 1000 or 1200mm
Formed width mm: 828 or 1035mm
Productivity: 0-14m/min
Output/shift(8hs): 5000m
Producing capability: 3500/8hs
Diameter of shaft:? 70mm
Dimension of main structure(mm): 7000*1500*1300
Material of rollers: 45#steel
Weight: 3050kg
Total power(km): 8kw
Driven system: Single
Power of hydraulic system: 4kw
Power of main molding core: 4kw
Equipments components:
Material-fed supporting frame
Automatic shearing mechanism
Hydraulic system
Computer control cabinet with imported PLC
Step-formed mechanism
Automatic length-measured system
Panel supporting table
Driven system protective covering
Options:
Manual uncoiling frame of different supporting capacity
Hydraulic uncoiler
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!
To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.
Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.
Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
