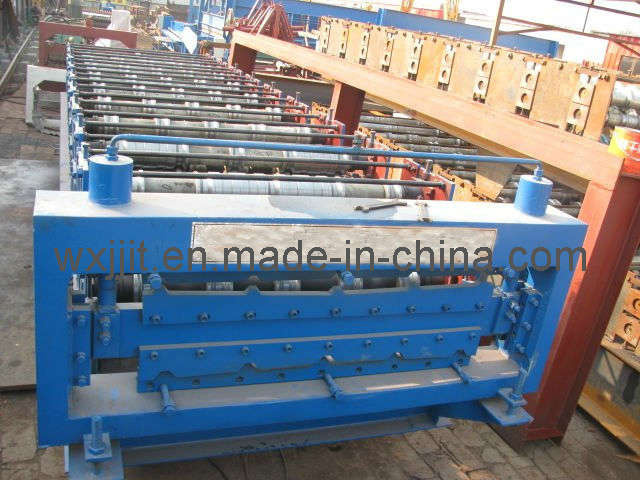

Product No.: JJM480
Size(m): 5.5x1.3x1.4m
Weight: 4.5T
Capacity: 5m/min
Quality: ISO9001: 2000
1)Process Flow:
Decoiling-feeding-forming-straightening --punching-cutting-production
2)Decoiler:
1. Coil inner diameter (ID): 400-470mm
2. Coil outer diameter (OD): 2000mm
3. Coil max width: 600mm
4. Max carrying capacity: 1500kg
3)Forming Machine:
1. Shaft material: 45# steel
Rollers material: Bearing steel (GCR15)
2. Roller: 12main forming steps
3. Transmission: Gear wheel
4. Forming speed: 12m/min (Including punching) 25m/min (without punching)
5. Motor: 7.5kw
6. Size: 5.5x1.3x1.4m
7. Voltage, Frequency, Phase: 380V, 50Hz, 3Phase
4)Cutting Blade
1. Material of blad: Cr12 steel with quenched treated 60-62°
2. Cutting after forming Cut the sheet after roll forming to required length
3. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
4. Tolerance of length: +/- 1.5mm
5)Control system
1. Displayer: Text screen
2. PLC: Control length and quantity Panasonic from China
3. Coder: ENC-1-1-1T-24
4. Automatic length and quantity measurement
5. Control voltage: 24V
6. Unit of length: In millimeter(mm)
7. Manual and Automatic
6)Hydraulic sysytem:
1. Advanced hydraulic system from Taiwan
2. Power: 3kw
7)Product table:
Length: 3 meters One piece
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!
To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.
Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.
Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
