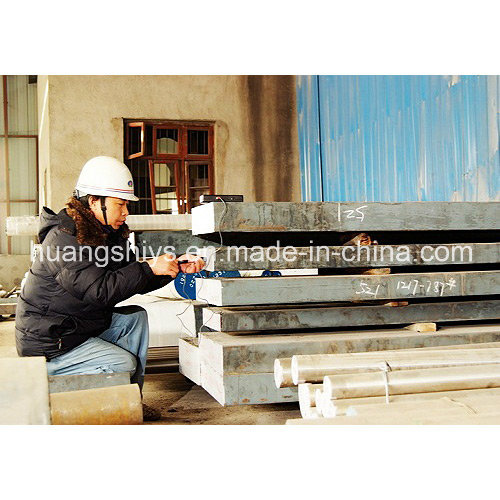

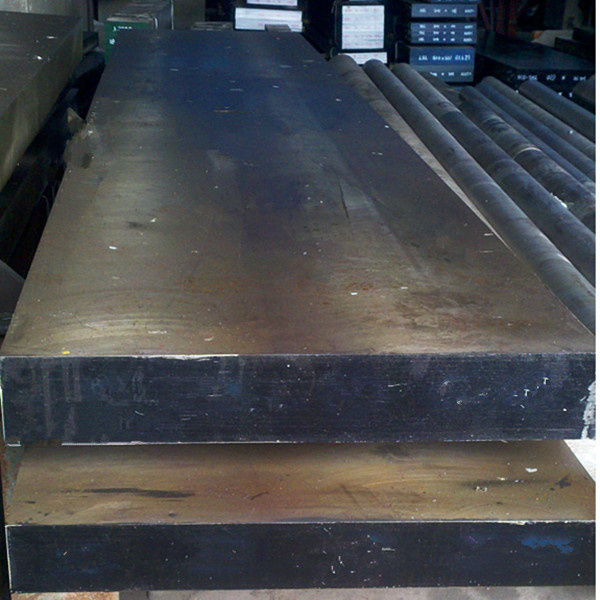

1.2343 Steel Plate
| Price: |
US $ 500-5000/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T |
The steel is widely used to manufacture hot extrusion dies and mandrels, forging die forging hammer die forging presses, forging machines, mold inserts and alloy die-casting mold.
2.the steel has high hardenability and thermal cracking capacity,good wear resistance,with good heat resistance, in higher temperatureshas good strength and hardness, high wear resistance
3.HOT WORK TOOL STEEL ROUND BAR
H11/DIN1.2343hot work mould steel feature:
Comparable steel:H11(USA,ASTM);DHA1(Datong,Japan);4Cr5MoSiV(China);1.2343(Germany DIN);SKD6(Japan,JIS)
4.Chemical composition(for reference only):
C | Si | Mn | Mo | V | Cr | P | S |
|
0.33-0.43 |
0.80-1.20 | 0.20-0.50 | 1.10-1.75 | 0.80-1.20 | 4.75-5.50 | ≤0.030 | ≤0.030 |
|
Delivery of hardness and quenching hardness
Steel name |
Delivery status |
Quenched specimens |
Hardness HBW |
Impressiondiameter (mm) |
Quenching temperature/°C |
Cooling medium |
hardness ≥HRC |
H11/4Cr5MoSiV |
≤235 |
≥3.95 |
A |
- |
60 |
Astand for: 4Cr5MoSiV steel: 790 °C preheat, 1000°C (salt bath) or 1010°C (controlled) heating , thermal insulation 5 ~ 15min air-cooled, 550 °C temper
SIMILAR STEEL GRADE:
standard |
GB |
JIS |
ASTM |
ISO |
DIN |
Steel grade |
4Cr5MoSiV |
SKD6 |
H11 |
137CrMoV5 |
1.2343
|
| Prod Model: |
1.2343 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness: |
20--300mm |
| Width: |
200--800mm |
| Type: |
Steel Plate |
| Standard: |
DIN |
| Technique: |
Forged |
| Special Use: |
Mold Steel |
| Application: |
Tool Steel Bar |
| Surface Treatment: |
Machined Surface |
| Composition: |
Alloy Steel |
| Steel Grade: |
Tool Steel |
| Shape: |
Plate |
Huangshi Young Sea Industry And Trade Co., Ltd. is located in Huangshi City, Hubei Province, construction in 2009 years. We offer Machining components to Huangshi Tri-Ring Forging Machine Co., Ltd. And Hubei Xinyegang Steel Auto Parts Co., Ltd.
We are also the tool steel and casting steel distributor & exporter in Huangshi China. And we are the exporting company of the factory:
Huangshi Shengda Mould Material Co., Ltd. The equipments of our factory are:
1. Two medium-frequency induction furnaces ( capacity 3.5 ton each);
2. Six forging hammers: One for 1.0 ton, one for 1.5 ton, one for 2.0 ton, one for 3.0 ton, one for 6.0 ton, one for 8.0 ton;
3. Four annealing furnaces: Two furnaces for 20.0 ton, two furnaces for 30.0 ton;
4. Three peeling machines;
5. One planomiller (4000*1000), One horizontal drilling machine and boring lathe.
We can produce one hundred kinds of products, including cold work tool steel, hot work tool steel, plastic mould steel and many other alloy tool steel. We are mainly supplying tool steels as below aboard:
AISI: D2, D3, D6, D7, A2, A6, A8, A10, H10, H11, H13, H21, S1, S5, S7, O1, O6;
DIN: 1.2080, 1.2316, 1.2343, 1.2344, 1.2379, 1.2510, 1.2601, 1.2713, 1.2714, 1.2767, 1.2842;
JIS: SKD1, SKD11, SKD61, SKS11, SKS41, DC53, NAK80;
GB: Cr12, Cr12MOV, Cr12Mo1V1, 6CrW2Si, 4Cr5MoSiV, 4Cr5MoSiV1, 3Cr2W8V, 2Cr13Ni2
We can offer Casting Steel against your detailed drawings. We mainly manufacture cylinder, parts of vessel such as anchor, anchor bolt, shackle, and other different kinds of valves, flanges, fittings, couplings.
Young Sea Industry's Mission:
Find right product to satisfy what customer need.
Optimize and control to adapt the discrepancy between our factory and purchaser.
Enhance the customer's advantage
We could accept the order base on your modified chemical composition, size and required manufacturing process. Welcome to Young Sea
