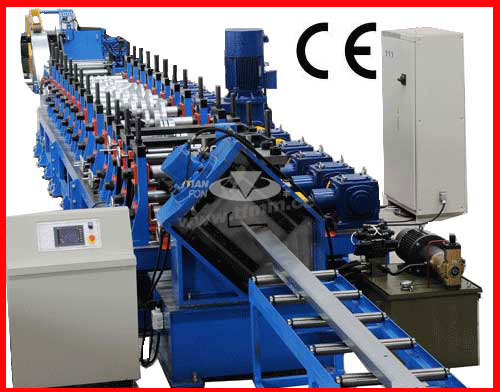

Z Purlin Roll Forming Machine

Z Purlin Roll Forming Machine
Price: Negotiable
Trade Terms: FOB
Min Order: 1 /Piece
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Working Flow:
Decoiling the Sheet_>Sheet Guiding _>Coil Strip Leveling_>Roll Forming_>Punching for Horizontal Hole_>Punching for Vertical Hole _>Measure Length _> Cutting the Panel_>Panels to the Supporter.

Technical Specifications of C Z Purlin Roll Forming Machine
Manual Un-coiler:
1) Un-powered;
2) Single head;
3) Max. Capacity: 3000kg;
4) Coil inner-diameter: 508mm

Leveling Device:
It used for making the material flat before feeding into the roll forming machine.

Roll-Forming M/C:
1) 13main steps and 7 auxiliary steps to form;
2) Material of Roller: GCr 15;
3) It can make all the size of profile in the table through changing the position of the rollers.
4) Voltage: 380V/50Hz
5) Forming speed: 0-10m/min

Hydraulic Cutting:
1) Stop to cut, Post cut Cutting tool material: Cr12,
2) Tolerance of the cutting length: 4mm
3) It has four cutting mould with the line.
4) If the customer wants more cutting moulds, he should pay for the extra moulds

PLC Control System:
1) Using Mitsubishi PLC to control the quantity, length automatically, LCD screen;
2) Option Hydraulic un-coiler
3) Hydraulic system to expand coil inner hole;
4) Frequency Inverter to regulate turning speed,
5) Automatic stop device;
6) Load capacity = Max. 3Tons;

Line Speed: 20m/min
Hydraulic Motor Power: 30KW
Material:
1)Suitable Coil Thickness: 2.0-3.0 mm
2)Suitable Raw Materials: Q235 A
Xinxiang Tianfeng Machinery Manufacture Co., Ltd a leading manufacturer for steel plate coiling machinery, cold-bending & rolling steel plate shaping machineries and automatic production lines. The products are mainly used in steel structure industry for producing C&Z type purlin, colored wall and floor protecting steel plate, thermal insulating plate and load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates, expressway railings, colorful decorating and protecting steel plates for high-grade steel structure residences.
