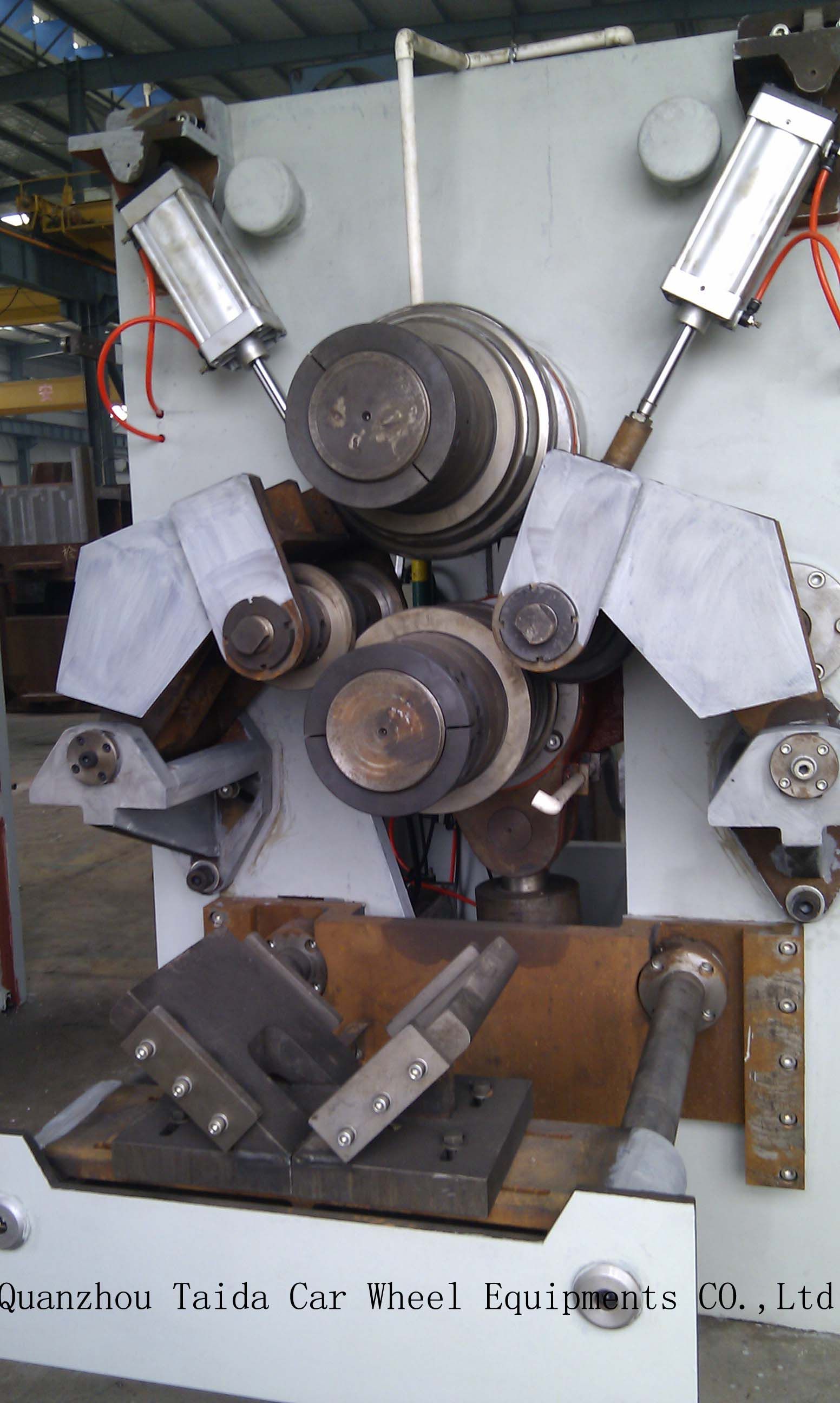

Wheel Machine

Wheel Machine
Price: Negotiable
Trade Terms: by Sea
Min Order: 1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Metal Rolling&Drawing Machine

Product Description

Main function
Rolling curved shape machines is the important machines which are used to form the wheel rims curved surface.Usually it is combination used with three lathe, they are sketchy rolling, medium rolling and precise rolling.After the processing, it may obtain the ideal curved surface and quality surface.

Main features
The main axle uses high quality alloy steel products that are go through strict heat treatment.Strict control stress corner, increase bending strength.The wheel rims semi-manufactured goods entire process completes automatically, including feed in, rolling, withdrawal.The main axle rotational speed may be change stepless according to the craft need.
Machine size

W*L*H  1560*3057*2500
Base size

W*L  1560*1390
Main axle pattern diameter

Φ200
Up and down axis center distance

340~480
Lower axle vertical traveling range

240
Largest diameter of wheel rims

950(28”)
Main axle pattern length

500mm
Main axle rotational speed

2~200r/min
Main axle torque

4807NM
Idler wheel feed in force

400KN
Rolling steel plate thickness

7~10
System fixed cylinder pressure

20MP
Electric motor power

55+55+7.5+1.1=118.6KW
Work table travel range

1000mm
Machine gross weight

11T

Quanzhou taida car wheel equipment Co., Ltd is a professional machinery manufacturer established in 1995 with certification of ISO9001: 2000 quality management system, carrying out the 6s management all around, . It lies at the golden triangle area in south of fujian province --wuli bridge development area, shuitou town.

with long years elaborate management, our company has been grown from a small workshop into a comprehensive enterprise, integrating research, CAD mechanical design, manufacturing, testing, debugging, as well as after sale-service.

Main products: Automobile spoke spinning machine, vertical tubeless wheel rim programme controlled web-plate lathe, vertical automobile rim programme controlled lathe, multi-shaft spoke spot facer, internal/external plane vertical lathe for steel-ring assembly, dig slag machine, roll flattening machine, de-crowner, and roll forming machine etc. For our products, equipments and machines that used to processing wheel rim is our main products. In our factory, you can find all the machines which is needed in processing a wheel rim. with our machines, you can process the steel plate to an perfect wheel rim. As tne good quality and competive price, our products share a grate part of the market.

The top management of taida always pay a close attention to the change of domestic and foreign markets, adjusting the industrial structure timely, leading our technician\s to develope and research the latest products ceaselessly, which cover heavy, medium, and light industries of varieties and complete car wheel equipments.

Adhering to the principle of "professional and perfect, trustworthy and people oriented", taida plays his rule actively on the market of automotive wheel equipment. Meanwhile, with the principle of the pursuit of perfection, innovation.

We sincerely welcome old and new friends from over the world to visit us for exchange, here, we shall be always here for u, to make great progress and step forward for good development together.
