Product Description

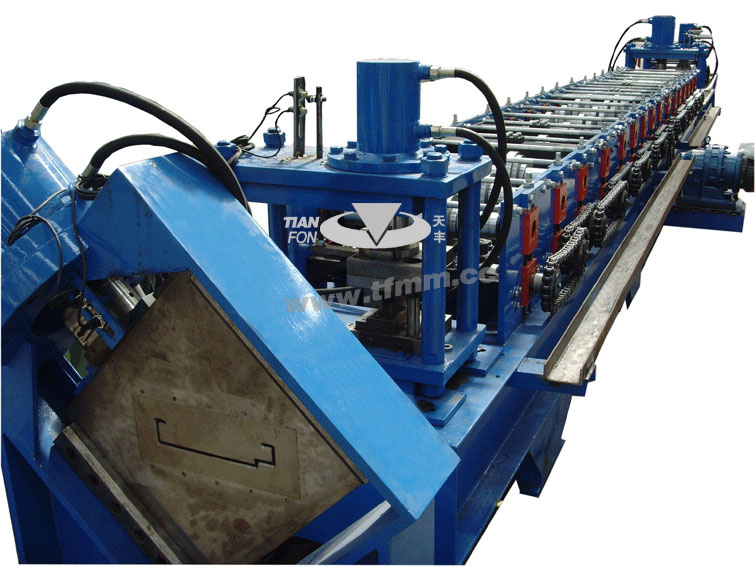

The Door Frame Metal production line includes manual decoiler, feeding device, leveling device, puchiing device, incising device, main roll forming machine, pressing device, hydraulic cutter, automatic, hydraulic station and PLC control system.
MATERIAL:
(1) Steel thickness: 0.5mm ~2.0mm
(2) Coil width: About 130mm, 176mm, 220mm
(3) Raw material: Galvanized steel
(4) Yield strength: About 235Mpa
(5) Forming station: About 12 station
(6) Rollers material: GCr15,
(7) Line speed: About 15m/min.
(8) Power supply: 380V/50HZ
(9) Motor power: 7.5kw
(10) Hydraulic pressure: 16 Mpa
Production Process:
Un-coil----roll forming----saw cutting----outlet finished product
Production line components:
(1) 3 Tons Hydraulic Un-coiler 1 set
(2) Roll-Forming M/C 1 set
(3) Saw cutter 1 set
(4) Product Rack (un-powered) 1 set
(5) PLC Control System 1 set
Xinxiang Tianfeng Machinery Manufacture Co., Ltd a leading manufacturer for steel plate coiling machinery, cold-bending & rolling steel plate shaping machineries and automatic production lines. The products are mainly used in steel structure industry for producing C&Z type purlin, colored wall and floor protecting steel plate, thermal insulating plate and load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates, expressway railings, colorful decorating and protecting steel plates for high-grade steel structure residences.
