Prod Model: |

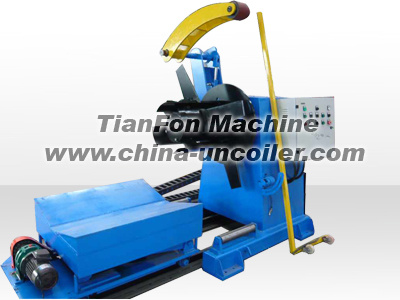

TF-3/5/8T Hydraulic single arm decoiler |
Product Description
Used for the coil support and release, the decoiler body is welded by section steel and steel plate, single arm structure, motor reducer drive the decoiler, hydraulic drive connecting rod tight the inner wall of coil. The decoiler with the clamp arm and outer block set prevent the coil loose, reasonable structure, convenient operation, reduce the labor intensity, Photoelectric device monitor the position of coil loop, A high degree of automation and can be select the coiler car
Applicable scope, technical parameters
Inner diameter of coil: φ 508mm
Outer diameter of coil: φ 1200mm
Width of coil 300/650/1000mm
Load capacity: ≤ 3/5/8T
Xinxiang Tianfeng Machinery Manufacture Co., Ltd a leading manufacturer for steel plate coiling machinery, cold-bending & rolling steel plate shaping machineries and automatic production lines. The products are mainly used in steel structure industry for producing C&Z type purlin, colored wall and floor protecting steel plate, thermal insulating plate and load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates, expressway railings, colorful decorating and protecting steel plates for high-grade steel structure residences.
