Symmetrical Plate Bender Drr-30X3200/Plate Bending Machine / Rolling Machine / Metal Roller / Metal Rolling Machine / Mechanical Rolling Machine

Symmetrical Plate Bender Drr-30X3200/Plate Bending Machine / Rolling Machine / Metal Roller / Metal Rolling Machine / Mechanical Rolling Machine
Price: US $ 2200-30000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: DRR-30X3200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Section Bending Function: Available
Beading Function: Available

Product Description

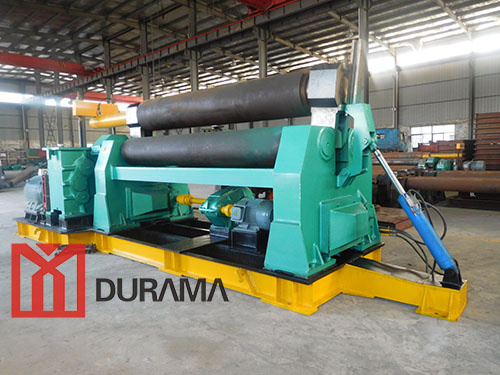

Three Roller Symmetrical Rolling Machine Mechanical Type
Brand: DURAMA
Bending thickness: 30mm;
Bending width: 3200mm;
Material: carbon steel, stainless steel, alumunium, etc.

Plate Bending Machine / Rolling Machine / Metal Roller / Metal Rolling Machine / Mechanical Rolling Machine / Symmetrical Plate Bender DRR-30X3200

The machine widely used in petroleum, chemical industry, cement, bioler, shipbuilding, aviation, water conservancy, power transmission towers and other machineary and equipment. Its working principle is rotating bending deformation. For the upper roller can be woved no matter up and down, but also horizontally, so no need additional press or equipment, can realize bending, as well as correction of the workpiece.
1.The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the lower rollers, wihch is achieved through the drive of the screw, the unt, the worm and the lead screw.
2. Large forigings: cylinder body, gear, gear shaft forging roughcast-surface imspection-roughing-UT flaw-UT flwa detector hear treatmenat-finishing semi-finishing-MT.
3.Welding structure: racks, chassis, wheel box plate into the factory(chemical compositon analysis, mechanical test)-pretreatment-for sheet metal cutting-welding-seam UT or RT flaw-annealing treatment-roughing-finishing-vibration destressing-hot blasting-finishing 5-4 major parts of the manufacturing process.





Model
Max. thickness of plate


(mm)
Max width of plate

(mm)
Min diameter of plate in full load (mm)Diameterof upper roller


(mm)
Diameterof lower roller


(mm)
Space between of two lower rollers

(mm)
Main motor power


(KW)
External dimensions (LxWxH)


(mm)
W11-6x1500615003801801602105.53310x1210x1330
W11-6x2000620003801801602205.53810x1210x1330
W11-6x2500625005001901702607.54310x1210x1330
W11-6x320063200500240200310115200x1400x1200
W11-8x2000820004501901702607.53810x1210x1330
W11-8x250082500500240200310114500x1420x1610
W11-12x2000122000500240200310114050x1420x1610
W11-12x2500122500750260220330115000x1500x1300
W11-12x3000123000650280240360155500x1500x1300
W11-16x2000162000750260220330114500x1500x1300
W11-16x2500162500750280240360155000x1500x1300
W11-16x3200163200900340280440226300x1600x1900
W11-20x2000202000750280240360154500x1500x1300
W11-20x2500202500850340280440305600x1600x1900
W11-25x2000252000850340280440305100x1600x1900
W11-25x2500252500900380300490376000x4600x2150
W11-30x2000302000900380300490375500x1460x2150
W11-30x25003025001100460380600456900x2300x2800
W11-30x30003030001200460400600457400x2300x2800
W11-30x32003032001200500400600457600x2300x2600
W11-40x20004020001200480400600456400x2300x2800
