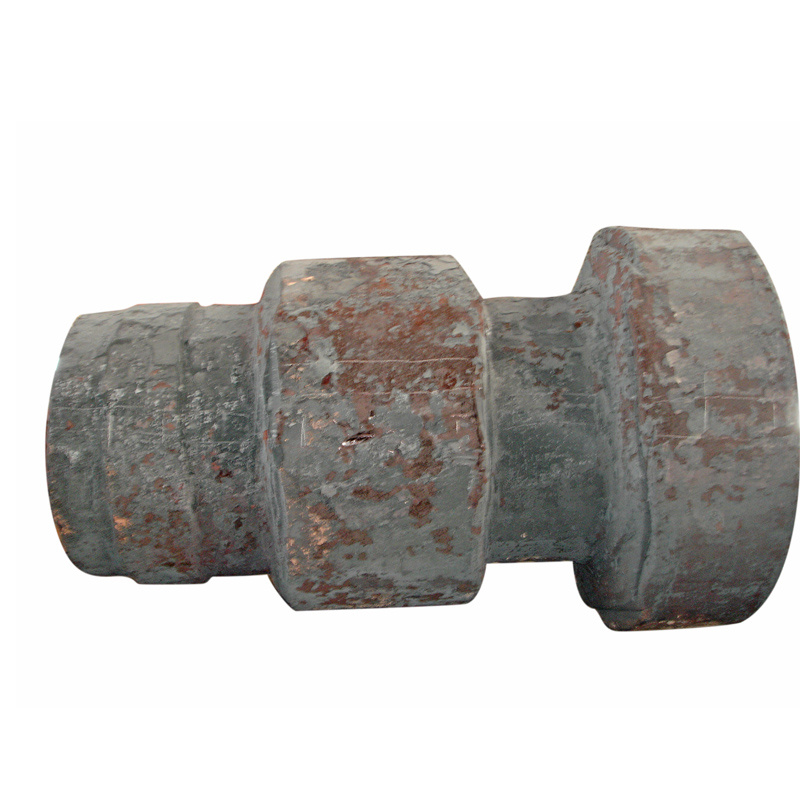

Steel Forged Shaft/Only Forging

Steel Forged Shaft/Only Forging
Price: Negotiable/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Carbon, C-Mn Steel, Alloy: Max Length with Heat Treatment: 12m
Max Length :20m For Forging,: Max Weight: 80t for Forging, 120t for Ingot

Product Description

Forging shaft:
We can supply all kinds of open-die forgings according to clients' requirment with competitive price and high quality. Including the marine shaft, wind shaft, upper and bottom shaft, intermediate shaft, turbine shaft and so on.

OPEN DIE FORGING
1. Material: Carbon steel, alloy steel, stainless steel
2. Weight: Up to 80Tons, 120Tons for ingot
3. Length: Up to 20M for forging, 12m with heat treatment
4. Material standard: DIN/ ASTM/AISI/ASME/BS/EN/JIS, C35, C45, 16Mn, 42CrMo4, 34CrNiMo6; 1040, 4130, 4140, 4340, and all kinds of other brand
5. Mechanical: According to customer requirement or standard.
6. Delivery Status: N+T or Q+T, rough machining or final machining to customer requirement
7. Production Process: Ingot Buying--Chemical Composition test--Heating--Forging--UT+Dimension check--N+T--First rough machining--UT+Dimension check--Q+T--Sample taken--Mechanical Property Test--Second rough machine--UT+Dimension check--Final Machining--MT+Dimension+Surfaceness Check.
8. Classification society: BV, LR, GL, ABS, DNV, NK, CCS and ISO9001: 2000.
9. Other certification: Pressure Vessel and Lifting Hook, ISO9001-2008
History:
has more than 20 years history in open die forging industry
Main Product:
forging parts, as shaft, ring, disk, tube, flange, bar, block etc.
Advanced Equipment:
In 2005, we introduced 70MN hydraulic oil press from Germany, it is the most advanced set in China, annual forging and production capacity could reach to 56000 tons or above.
Production Capacity:
ring could up to diameter 5.2 meters, forgeable piece length of 20 meters, weight of 120 tons.
Certificate:
Our company has got ISO9001-2008 quality certificate, GL, BV, NK, LR, CCS, ABS, DNV.
Cooperate Company:
Alstom in water and fire power, Siemens, TATA steel, GE, P&H in mining and so on.
