| Prod Model: |
Static casting steel roll |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Casting Method: |
Static Cast |
| Barrel Hardness: |
35-65hsd |
| Weight: |
2-150tons |
| Max Diameter: |
1500mm |
| Type: |
Steel Rolling Equipment |
| Certification: |
ISO |
Product Description

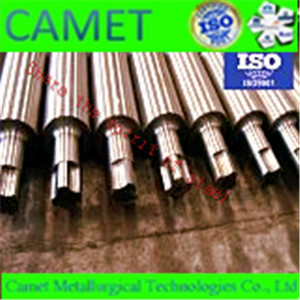

Static casting steel roll
Properties Microstructure consist of matrix and carbide with carbon content of 1.3-2.3%,depending on content of alloy and heat treatment process.The matrix consist of Pearlite or Bainite. With the addition of Cr,Mo and Ni for higher stability of carbide, enhanced high temperature resistence and strengthened matrix.The centrifugal roll has virtually no fall off in hardness throughout the shell as well as highly wear and high temperature resistance and high load resistance etc.
Chemical Analysis
| Grades | C | Si | Mn | P | S | Ni | Cr | Mo |
| AD140 | 1.3~1.5 | 0.3/0.6 | 0.7/1.4 | ≤0.035 | ≤0.03 | -- | 0.8/1.6 | 0.2/0.6 |
| AD140I | 1.3~1.5 | 0.3/0.6 | 0.7/1.1 | ≤0.035 | ≤0.03 | 0.2/0.5 | 0.8/1.2 | 0.2/0.6 |
| AD160 | 1.5~1.7 | 0.3/0.6 | 0.7/1.1 | ≤0.035 | ≤0.03 | -- | 0.8/1.2 | 0.2/0.6 |
| AD160I | 1.5~1.7 | 0.3/0.6 | 0.8/1.3 | ≤0.035 | ≤0.03 | ≥0.2 | 0.8/2.0 | 0.2/0.6 |
| AD180 | 1.7/1.9 | 0.3/0.8 | 0.6/1.1 | ≤0.035 | ≤0.03 | 0.5/2.0 | 0.8/1.5 | 0.2/0.6 |
| AD190 | 1.8/2.0 | 0.3/0.8 | 0.8/1.2 | ≤0.035 | ≤0.03 | 1.0/2.0 | 1.5/3.5 | 0.2/0.6 |
| AD200 | 1.9/2.1 | 0.3/0.8 | 0.8/1.2 | ≤0.035 | ≤0.03 | 0.6/2.5 | 0.6/2.0 | 0.3/0.8 |
Physical Properties
| Designation of rolls | Barrel hardness (HSD) | Tensile strength (MPa) |
| AD140 | 38~48, 45~55 | >490 |
| AD140I | 35~45, 40~50 | >490 |
| AD160 | 40~50 | >490 |
| AD160I | 40~50, 50~60 | >490 |
| AD180 | 45~55, 55~60 | >490 |
| AD190 | 55~65 | >490 |
| AD200 | 50~60, 55~65 | >490 |

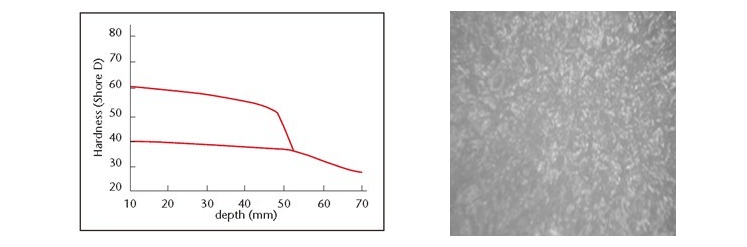

Microstructure
Microstructure of working layer in the barrel: pearlite + SG + carbide
Application
For hot strip mill, two-high reversing stands of plate mill, Roughing mill, billet rolling mill, section mill, barmill and roughing stands of high-speed wire-rod mill
