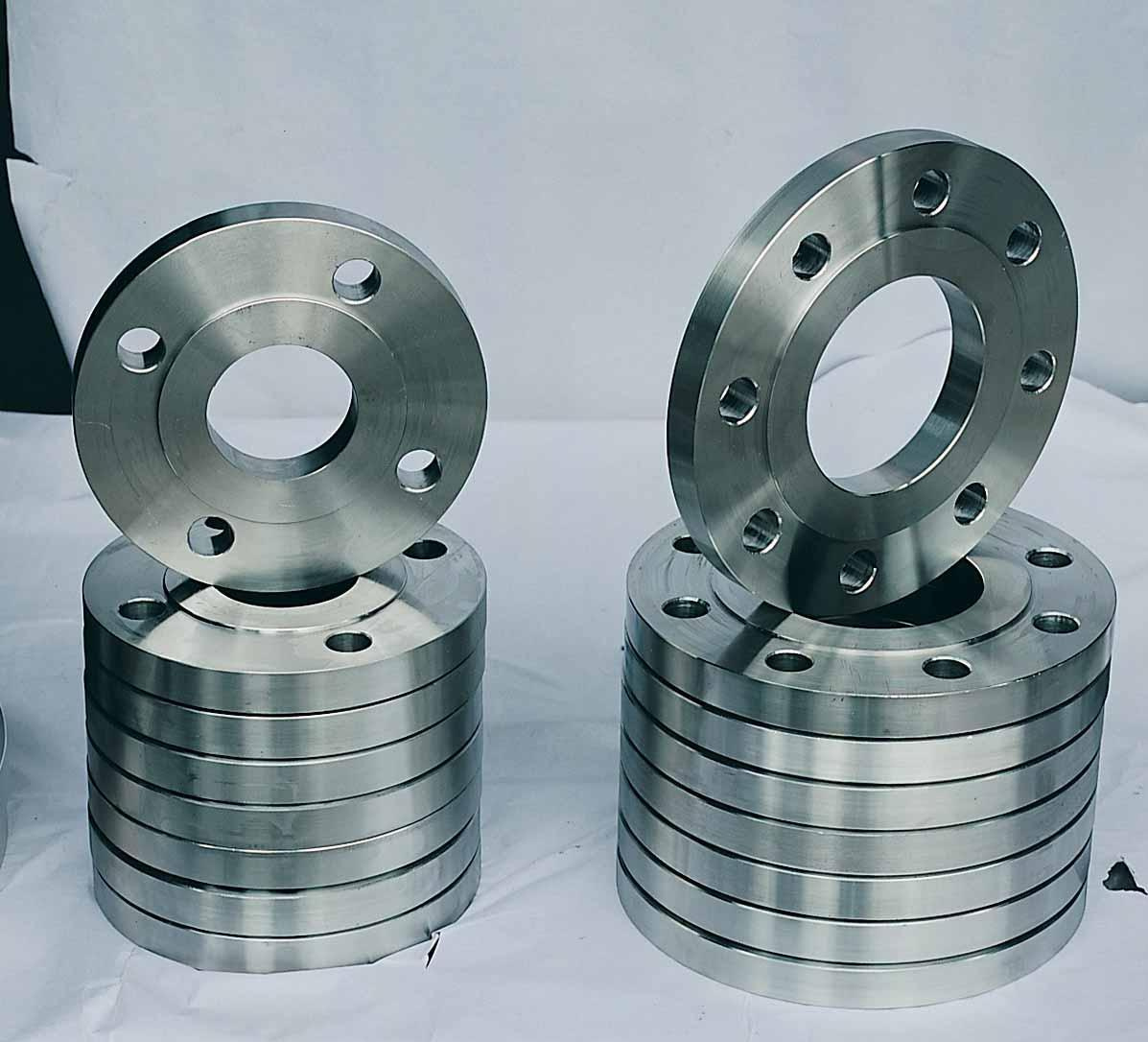

Stainless Steel Slip-on Flange 304L

Stainless Steel Slip-on Flange 304L
Price: US $ 1-100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T
Prod Model: flange
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Treatment: Black Painting,Golden Painting,Lightly Oiled
Standard: GOST
Type: Welding Flange
Manufacturing Way: Forging
Material: Stainless Steel, 20#, A105, Q235, 16mn304, 304L

Product Description

stainless steel Slip-on Flange 304L

1. Size: 1/2" to 48" NB

2. Pressure Ratings: Class 150, 300, 600, 900, 1500 and 2500

3.   Pressure Ratings: JIS 5K, 10K, 16K and 20K

4. Standard: ANSI, JIS/KS, DIN, AWWA4. Facing: TG, RF, MFM, FM, FF, RJ

5. Material: Stainless steel like 304, 304L, 316, 316L, 321, carbon steel like 20#, A105, Q235, 16Mn etc.

6.Types' Specification
Welding neck
1, Preferred for high-pressure, subzero or elevated temperature
2, Hub is tapered and bored to match pipe's inside diameter so flow is not restricted, preventing turbulence and reducing erosion
3, Easily radiographed and provides excellent stress distribution
Slip-on
1, Not normally used in high-stress applications due to low hub and weld attachment
2, Silps over outside of pipe
3, Inside of flange welded at hub and end of pipe
Lap joint
1, Used where bolt alignment or access for cleaning is required
2, Similar to slip-on flange when used with lap joint stub end
3, Radius at intersection of flange face and bore to match lap joint stub end
Threaded
1, Used where welding would would be hazardous
2, Designed for low-pressure and non-cyclic applications
3, Bore is threaded to match pipe thread
4, Tapered to seal pipe and flanges
Socket welding
1, For small-diameter chemical processes, hydraulic and stream distribution lines
2, Similar to slip-on flange
3, Counter bore matches pipe bore, allowing unrestricted flow
4, Counter bore from hub side fits pipe's outer diameter -  can insert pipe in socket with fillet weld at hub
Blind
1, Used to close ends of piping
2, Has no bore
3, Permits access to sealed lines
Other flanges
Orifice, Expander, Reducing, Lightweight, Studding Outlets, Long Weld Necks,Metric, Navy Drawings, Customer Drawings


WE, KINGMETAL, IS A PROFESSIONAL MANUFACTURER IN STEEL INDUSTRY SINCE 1989,

WITH OVER 20 YEARS  EXPERIENCE IN EXPROING,

WE BELIEVE WE CAN SUPPORT OUR CUSTOMER WELL AND GROW STRONGER AND STRONGER TOGETHER.
WE INSIST ON GOOD QUALITY, GOOD SERVICE, AND COMPETITIVE PRICE.


Guangzhou Kingmetal Steel Industry Co., Ltd., is an Industry Group Company. It is a professional company in designing, producing and selling steel pipe, pipefittings and prefabricated house. We have our own big factories with modern machine line to make high quality products, which is mainly to be exported to oversea markets.

We have two factories. One is located in Wenzhou city, it was established in 1989. This factory is a leading seamless stainless steel pipe and pipefitting manufacturer in China. It occupied 114, 000 square meters, with fixed capital over 200 million and total amount 300 million. It owns 500 staffs including 80 advanced engineers. It owns perfect management system, vigorous technology supports, advanced production equipment and completed inspection equipment. The factory pay highly attention to enterprise foundation establishment, successfully was approved the authentication of PED and AD by TUV from German company, and the national special equipment license. Our products greatly provide for petroleum chemical, metallurgy, pharmaceutical machinery, paper making, food, shipbuilding, environmental protection, boiler, heater exchanger, pressure container, condensation, water, electricity and so on. The mainly grades we can provide are 304, 304L, 316, 316L, 321, 321H, 317L, 310S, 347H, 31803 etc.

Another factory is located in Guangzhou city, it was established in 2002. This factory is one of the largest prefab house corporation in southern China. It occupied 30, 000 square meters, with fixed capital over 40 million and total amount 100 million. It owns 200 staffs. Annual out put is more than 2 million square meter, and there have a stock of about 50 thousand square meter. These products include slope top prefab house, flat top prefab house, non-standard steel structure (warehouse, industrial shed), container house, mobile fence wall, sentry box etc. Our goods not only sold to domestic market but also extended to Southeast Asia, Middle East, Europe, Australia, Africa, and South America etc.

At the same time, we also are the agency of Bao Steel, Hengyang, Tianjin, Anshan, Pangang etc. Big group steel company. We offer the seamless carbon, welded carbon steel pipe, GI pipe, and special pipe. Fittings elbow, tee, reducer, cap, lap joint, flanges etc...This is better for our customer to buy the different products from China, while they are saving their time, but they can enjoy in our best serves.

We have advanced technology of management, we win the trust because of our good quality.

We have clannish conscientious and passionate salesman, we gladden and steady the customers with our best service.

We are pure-hearted and awaiting for your kind attention to our company.
