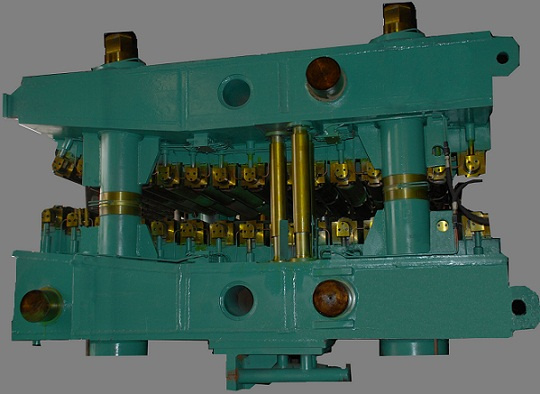

Slab Curved Segment for Continuous Casting Machine

Slab Curved Segment for Continuous Casting Machine
Price: Negotiable/Piece
Trade Terms: CFR
Min Order: 1/Piece
Pay Type: T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1, Curved segment for continuous casting machine
2, More options

To offer billet, round and bloom sized continuous casting machine and related spare parts.

Arc radius can be from 3.5m to 14m.

The strand can be 1-6.

Kinds of billet type continuous casting machine: 60mmX60mm to 700mmX700mm, of round one from Φ 80mm to Φ 900mm, of slab one from 120mmX850mm to 3600mmX1000mm.

The characteristics

Ladle turret: Straight arm type, and can be with automatic weighing device, emergency driven unit and driven by electric motor.
Oscillator: Guided by spring steel plate, it is outside the secondary cooling chamber, far away from the high temperature zone, easy for maintance.

Copper mold tube assembly: Our copper mold tube is supported by German KME technology. The products are used by well-known steel mill both at home and abroad.
Withdrawal and straightening unit: The straightener adopts the gradually straightening technic. The rollers are driven by three-ring reducers and hydro-cylinder.

Flame cutter: High-speed narrow slit cutter, along with the unpowered cutting car. Guidance mechanism decides the torch swing.
Dummy bar: Rigid dummy bar or flexible dummy bar.
Electric control system: This system uses Simens PLC control scheme, carrying on the surveillance by a computer.
Dalian Dashan Metallurgical Engineering Technology Co., Ltd. is the subsidiary company of Dalian Dashan Group. The company was founded in May 2008 with construction area of 40, 000 square meters. There are 170 employees, of whom 36 are managers, 29 are senior technical staff. Our core business is the production of continuous casting machine, billet, slab crystallizer and relevant spare parts. The R6m casters and rolling equipment have exported abroad to Kazakhstan, Vietnam, etc. Dalian Dashan Metallurgical Engineering Technology Co., Ltd. is the import and export window of Dalian Dashan Group.

DLDS Group is a one of the biggest producers and suppliers of copper mould tubes & plates located in China, we have long years' supply experience of copper mould tubes & plates all over the world. Copper mould tube is the heart of continuous casting machine, the mould tubes supplied by DLDS adopts most advanced European technology, and all production process are LED by Quality Management System in accordance with ISO9001: 2000 standards. We commit to supply products which comply exactly with customers' specifications and are competitive in terms of delivery, price and service, and we can also give technical guidance to help the customer to reduce the cost and increase productivity. Our specialized know-how, quality control and dedicated service enable us to satisfy the market's changing requirements. We had exported our copper mould tubes/plates to various foreign countries such as Germany, Italy, Greece, Brazil, Venezuela, Ecuador, India, Thailand, Philippine, Turkey, Syria, Pakistan, Egypt, South Africa, West Africa etc in last decade.
