| Prod Model: |
LM-C10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

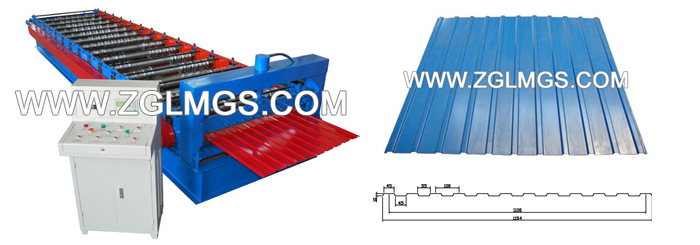

Russian Style Steel Sheet Cold Roll Former LM-C10
ABSTRACT:
The tiles produced by this machine are widely used as wall panel in all kinds of factories, houses, warehouses and the base plate for sandwich panel, as well as making billboard and guardrail for building in Russia.
It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.
Features of this producing line:
Lower cost
High efficiency
Reliable working
Low energy consumption
Technical parameter
Material: Galvanized sheet or colored armor plate
Equipment operation: Automatically
Voltage: AC380/50Hz or at buyer's requirement
Number of roller: 10-15
Thickness of sheet(mm): 0.3-0.8
Material width(mm): 1250
Formed width(mm): 1000
Productivity: 12-16m/min
Diameter of shaft: 70mm
Dimension of main structure(mm): About 8500*1800*1500
Material of rollers: 45# steel
Weight: About 3000kg
Total power(kw): 7kw
Driven system: Single
Power of hydraulic system: 4KW
Power of main molding core: 3kw(cycloidal planetary gear speed reducer)
Equipment parts
1. Decoiler, which can bear 5000kg
2. Feeding platform
3. Main molding core
4. Hydraulic system
5. Automatic shearing system
6. Computer control system (imported computer)
7. High-precision automatic counter
8. Driven system protective covering
9. Panel supporting table.
Liming Stamping Form Machine Manufactured Co., is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffic-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, Cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of line of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.
Liming has advanced production equipment. Engineering personnel and technicians of Bohai are rich in experience of designing, developing, and manufacturing of machineries, They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high flexibility and low production cost.
