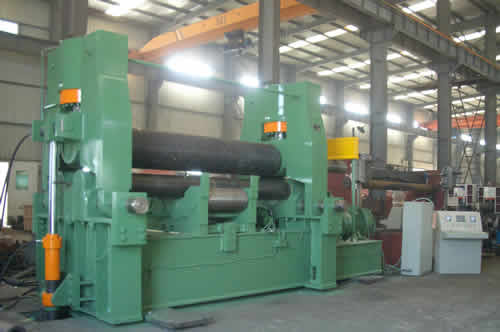

Rolling Machine (W11S) Upper Roller Universal

Rolling Machine (W11S) Upper Roller Universal
Price: US $ 10000-60000/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: W11S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: as Required
Non-Standard: as Required
Forging Forming Method: Free Forging

Product Description

1. High precission pre-bending. When pre-bending, the length of the edge can be set at ease. The upper roller presses and perfect cylinders can be made.
2. CNC operation. The CNC operations can improve the working efficiency greatly. Besides this, the operations are much more convinient. And this machine can also roll the plate into many kinds of shapes, such as O shaped, U shaped, cone shaped and so on.
Type Upper roller pressure
(Tons)
Max plate thickness   Width of plate
  (mm)
Dia.of upper roller
(mm)
Dia.of lower rollers
(mm)
Central distance
(mm)
Motor (kw)
End
(mm)
Central
(mm)
Driving Hydraulic Shift
W11S-45×3000 540 40 45 3000 590 340 610 55 22 11
W11S-40×4000 540 35 40 4000 630 340 610 55 22 11
W11S-36×5000 540 30 36 5000 670 340 610 55 22 15
W11S-32×6000 540 28 32 6000 700 340 610 55 22 15
W11S-55×3000 610 45 55 3000 620 360 650 75 30 15
W11S-45×4000 610 40 45 4000 660 360 650 75 30 15
W11S-40×5000 610 32 40 5000 700 360 650 75 30 15
W11S-36×6000 610 30 36 6000 730 360 650 75 30 15
W11S-60×3000 690 50 60 3000 650 380 700 75 30 15
W11S-50×4000 690 45 50 4000 700 380 700 75 30 15
W11S-45×5000 690 38 45 5000 740 380 700 75 30 15
W11S-40×6000 690 35 40 6000 760 380 700 75 30 15
W11S-70×3000 850 60 70 3000 710 420 780 75 37 15
W11S-55×4000 850 50 55 4000 750 420 780 90 37 15
W11S-50×5000 850 42 50 5000 790 420 780 90 37 15
W11S-45×6000 850 38 45 6000 820 420 780 90 37 15
W11S-75×3000 930 65 75 3000 740 440 820 90 37 15
W11S-60×4000 930 55 60 4000 780 440 820 90 37 15
W11S-55×5000 930 45 55 5000 820 440 820 90 37 18.5
W11S-50×6000 930 42 50 6000 850 440 820 90 37 18.5
W11S-80×3000 1050 70 80 3000 770 460 880 90 37 18.5
W11S-65×4000 1050 60 65 4000 810 460 880 90 37 18.5
W11S-60×5000 1050 50 60 5000 850 460 880 90 37 18.5
W11S-55×6000 1050 45 55 6000 890 460 880 90 37 18.5
W11S-85×3000 1150 75 85 3000 800 480 920 110 45 18.5
W11S-70×4000 1150 65 70 4000 840 480 920 110 45 18.5
W11S-65×5000 1150 55 65 5000 890 480 920 110 45 22
W11S-60×6000 1150 50 60 6000 930 480 920 110 45 22
W11S-100×3000 1350 90 100 3000 860 480 920 110 45 22
W11S-80×4000 1350 75 80 4000 900 520 1000 110 45 22
W11S-70×5000 1350 65 70 5000 940 520 1000 110 45 22
W11S-65×6000 1350 60 65 6000 980 520 1000 110 45 22
W11S-115×3000 1600 100 115 3000 900 560 1080 132 55 30
W11S-100×4000 1600 85 100 4000 940 560 1080 132 55 30
W11S-125×3000 1800 110 125 3000 960 600 1120 160 75 37
W11S-110×4000 1800 95 110 4000 990 600 1120 160 75 37
Nantong Taihe Machinery Group Co., Ltd. is located in Haian High-tech Development Zone of Jiangsu, east to the Huanghai Sea, south to the Changjiang River, with areas of 74000 square meters. Taihe belongs to Shanghai Economic Area and is one of the key enterprises of previous State Machinery Ministry.
Taihe now owns large floor-type milling and boring machine, planer-type milling machine and drilling machine, more than 100 sets processing equipments of high quality, high precision and advanced technology. All these greatly improve product's quality and meet various requirements of customers.
Taihe registered 54 million RMB, with 300 employees, 25 engineers, 12 after-sales service personnel and 38 salespersons. The company is authorized with the rights of self-managed import and export, the certification of ISO9001: 2008 international quality system and the CE certification of EU. We have various kinds of product in "Tah" brand, including QC12K, QC12Y, QC11K, QC11Y series of CNC hydraulic shearing machine; WC67Y and WC67K series of CNC hydraulic press brake; W11S, W11 and W12 series of rolling machine; YQ32 series of four-column universal hydraulic press. Besides domestic market, Taihe's product is also exported to Europe, USA, Middle East, South Africa and South Asia etc. More than 60 countries and regions.
Our product is applied in many areas, such as machine manufacturing, aviation, automotive industry, packaging, stainless steel products, wind power generation, shipping, oil industry and so on.
We always hold on to Taihe's operating principle "Advanced technology, Reliable quality, Excelsior attitude, Customer's satisfaction". Taihe sincerely hopes to collaborate with worldwide friends and altogether create brilliant.
