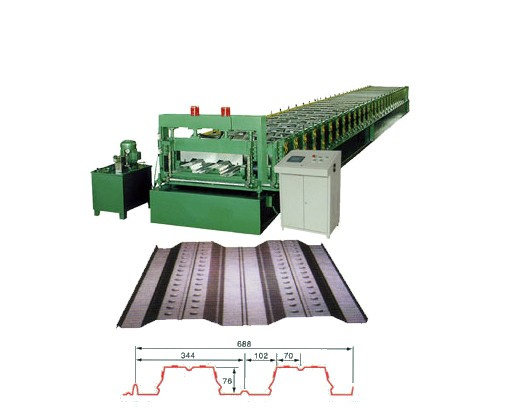

Product Description
Specialized in the filed of roll forming machine since 1990, with 21 years' experience. Manufacture both standard and customized Standard Floor Decking Machine, as per their specific needs and requirements.
Main technical parameters
1. General:
Material Spec Q235 or 34 KSI, 1.5-3.0 mm
Material Width 1000/1200/1220/1250mm
Forming Steps 24
Controlling System PLC
Main Application steel floor for light steel structure
Dimension about 11.2*1.3*1.5m (L*W*H) ( depend roofing style )
Total weight About 13.5ton
2. For the produced panel:
Width 600mm (Depend on your request)
Length Any length as your requirement (set by PLC)
Speed 10-12 m/min
Type of cutting Roll-formed and length-set cut
3. Components:
Roller Material High grade No. 45 forged steel, with digital-controlled procession, Painted with hard chrome
Out diameter of shaft 100mm
Cutting Blade Cr12 mould steel with quenched treatment, 58-62 degree.
Electric Elements Touch screen: MITSUBISHI
PLC: MITSUBISHI
Products Warranty One year. And we will provide the technical support for the whole life of the equipment
