| Prod Model: |
YT-R2 |
| Markets: |
South America,Southeast Asia,Africa,Eastern Asia |
| Suitable Material: |
Thickness:0.30_0.70mm/Width:According to Profile |
| Product Specs: |
Refer to Drawing |
| Machine Materia: |
Cutting Blade:Cr12 Quenched/Roller:No. 45 Steel CH |
| Production Speed: |
3-6m/Min |
| Forming Stand: |
About 18 Group |
| Transmission Style: |
Chain, Sprocket |
| Main Machine Structure: |
Wall Panel |
| Type Of Cutting: |
Length-Set Cutting |
| Control System: |
Mitsubishi PLC& Transducer |
| Product Support: |
Run out Table |
| Forging Forming Method: |
Mold Forging |
Product Description
This Roll Forming Machine consist of 5T uncoiler, sheet feeding device, roll forming system, step pressing device, hydraulic post-cutting equipment, run out table, hydraulic station and PLC controller.
Optional: Hydraulic decoiler /automatic stacker
Working Flow
Decoiling--sheet feeding--roll forming--step pressing--automatic cutting--run out table
Detailed Picture& Decription
1. Decoiler
Manual Decoiler with brake (Hydraulic decoiler/Hydraulic decoiler with loading car)
2. CNC processed high precision roller with chrome coated, ensure the roll forming precision and lifetime

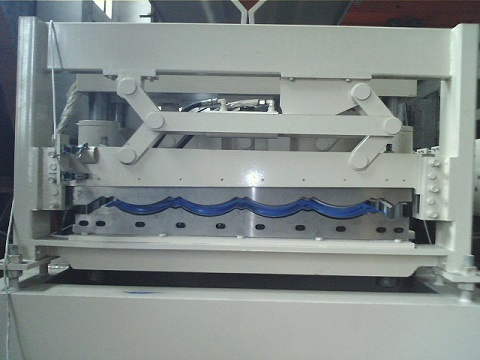

3. Pillar style post-cutting equipment, photoelectric switch ensure cutting precision and lifetime.
4. PLC system
5. Hydraulic unit
6. Container Loading
As a professional roll forming machinery and related product company, Hangzhou Yutong Machinery Co., Ltd. Has 12 years' experience in R&D and production. The rich practical experience can help us produce the high quality, low cost, high efficiency product.
