Product Description

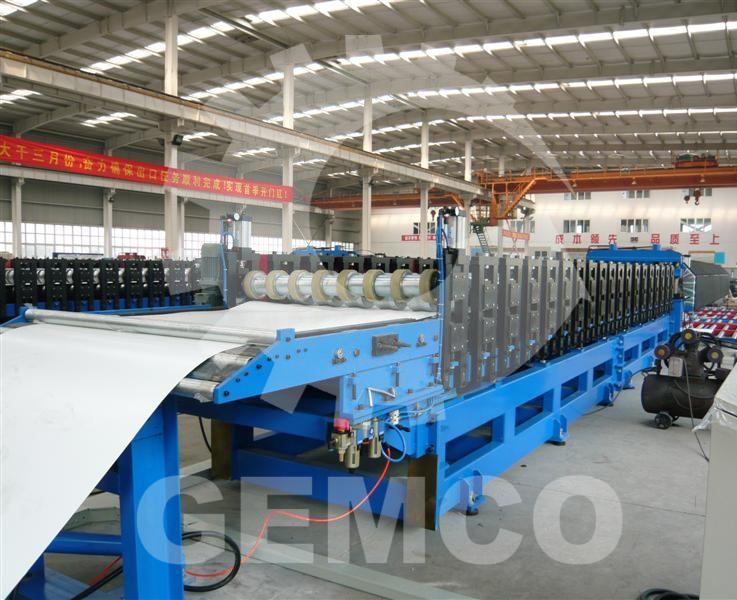

Roll Forming Machine/Rollformer
MATERIAL:
(1)Suitable Coil Thickness: 2.0-3.0 mm
(2)Suitable Raw Materials: Q235 A
MACHINE COMPONENTS:
(1) Manual Un-coiler 1 set
(2) Leveling Device 1 set
(3) Roll-Forming M/C 1 set
(4) Hydraulic cutting (with four cutting mould) 1 set
(5) PLC Control System 1 set
(6) Product rack (un-powered) 1 set
TECHNICAL SPECIFICATION
(1) Manual Un-coiler:
Un-powered; Single head; Max. Capacity: 3000kg;
Coil inner-diameter: 508mm
(2) Leveling Device:
It used for making the material flat before feeding into the roll forming machine.
(3) Roll-Forming M/C:
13main steps and 7 auxiliary steps to form; Material of Roller: GCr 15;
It can make all the size of profile in the table through changing the position of the rollers.
Voltage: 380V/50Hz Forming speed: 0-10m/min;
(4) Hydraulic Cutting:
Stop to cut, Post cut Cutting tool material: Cr12,
Tolerance of the cutting length 4mm
It has four cutting mould with the line.
If the customer wants to more cutting mould, he has to pay for the extra moulds.
(5) PLC Control System:
Using Mitsubishi PLC Control the quantity, length automatically, LCD screen,
Option Hydraulic un-coiler
Hydraulic system to expand coil inner hole;
Frequency Inverter to regulate turning speed,
Automatic stop device; Load capacity = Max. 3Tons;
|
|
Model |
Section Area |
|
h(mm) |
b1(mm) |
b2(mm) |
C(mm) |
t(mm) |
|
Z100 |
100 |
50 |
54 |
20 |
2.0-3.0 |
|
Z120 |
120 |
50 |
54 |
20 |
2.0-3.0 |
|
Z140 |
140 |
50 |
54 |
20 |
2.0-3.0 |
|
Z160 |
160 |
60 |
64 |
20 |
2.0-3.0 |
|
Z180 |
180 |
70 |
74 |
20 |
2.0-3.0 |
|
Z200 |
200 |
70 |
74 |
20 |
2.0-3.0 |
|
|
Model |
Section Area |
|
h(mm) |
b(mm) |
c(mm) |
t(mm) |
|
C80 |
80 |
50/60/70/80 |
20 |
2.0-3.0 |
|
C100 |
100 |
50/60/70/80 |
20 |
2.0-3.0 |
|
C120 |
120 |
50/60/70/80 |
20 |
2.0-3.0 |
|
C140 |
140 |
50/60/70/80 |
20 |
2.0-3.0 |
|
C160 |
160 |
50/60/70/80 |
20 |
2.0-3.0 |
|
C180 |
180 |
50/60/70/80 |
20 |
2.0-3.0 |
|
C200 |
200 |
50/60/70/80 |
20 |
2.0-3.0 |
