Prod Model: |
rock wool sandwich roll forming machine |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Voltage: |
380V 50Hz |
Control System: |
Automatic CNC Control System |
Cutting System: |
Hydraulic Shearing System |
Warranty: |
12 Monthes |
Type: |
Building Machine |
Product Description

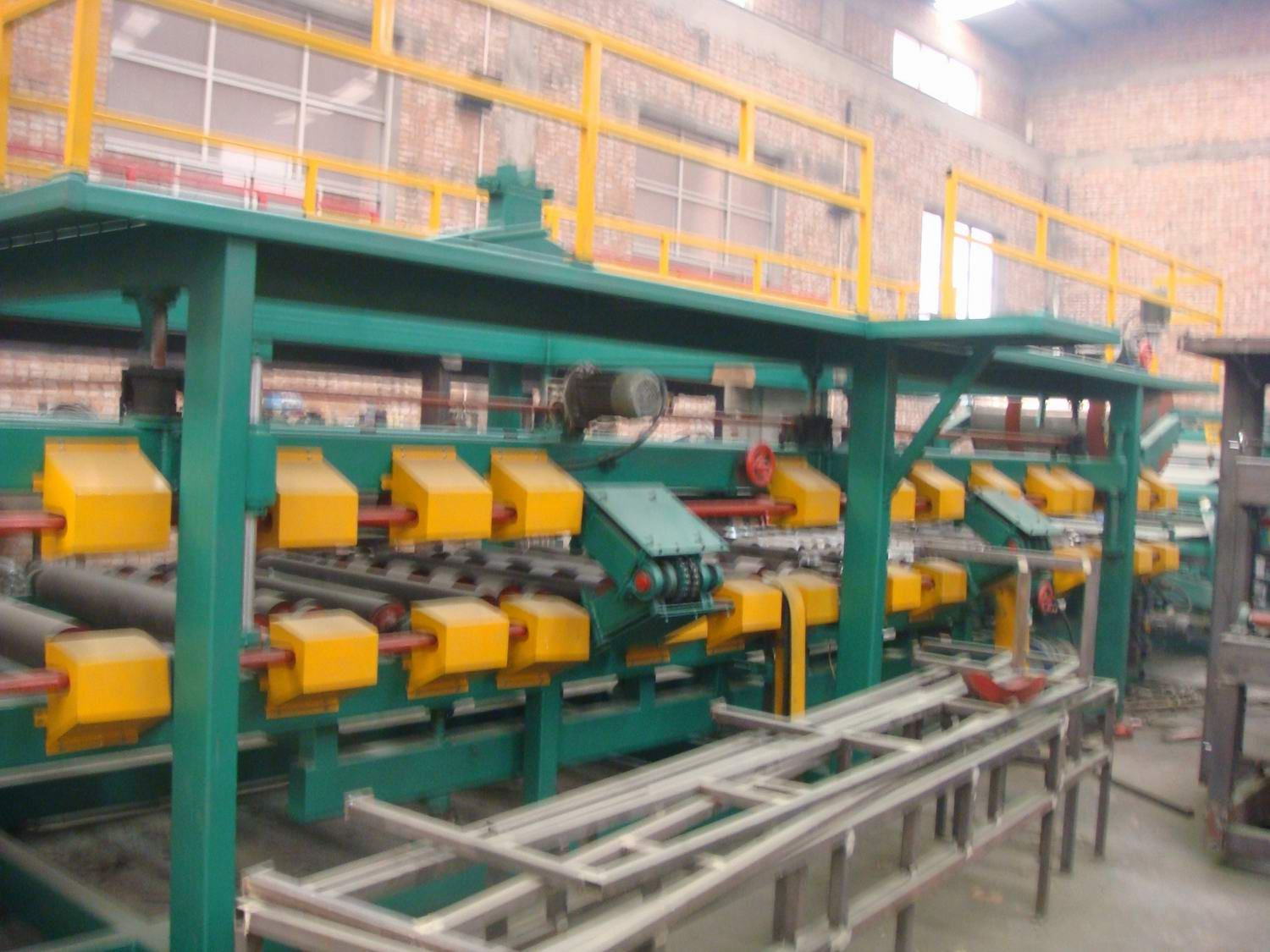

Rock wool sandwich roll forming machine made in China
Main parameters
Constituent parts Decoiler, roll forming machine, composite mainframe, cutting parts, find product rack
Forming size: 45000*3000*2800
Feeding width 1000mm/1200mm
Main motor power 32KW
Working speed 0-6m/min
Equipment weight 15-16 T
Electrical system PLC Taiwan fengwei
Rolling thickness 25cm
Power source AC380V/50-60Hz
Decoiler Bearing 5-7tons
Number of forming rollers 35-43 rows(9-11 row made the steel molding, 26-32 row glue shaft)
Thickness of chain 0.4 inches
Out diameter of shaft: 70 mm
Middle plate 12mm
Big frame 300 channel steel
Composite mainframe Squar Steel tube 80*160 Glue shaft: 150 19roots
Host size 15000mm*2300mm*2500mm
Total power 32kw
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
