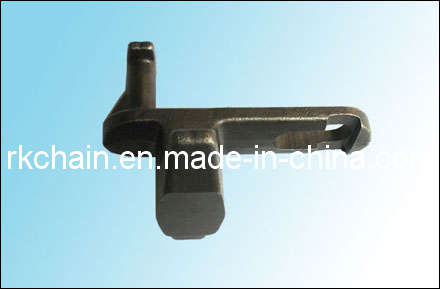

Pusher Dog for Drop Forged Conveyor Chain X698

Pusher Dog for Drop Forged Conveyor Chain X698
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
Prod Model: X698
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Process: Forging
Type: Conveyor Device
Surface: Self Colored, Zinc Plated,Blacken
Chain: X348,X458,X678,X698

Product Description

Conveyor device
All dimensions are to be specified by customer.

1)Power and free conveyor with pusher means operable on curved sections of conveyor track
2)Power-and-free conveyor
3)Overhead conveyor system having a pusher device with overload and blockage protection
4)Conveyor device
Specifications
I-beam monorail systems components.
RIVET LESS CHAIN, POWER & FREE TROLLEY, BEARING, "H" ATTACHMENTS

Available products:
1) Rivetless chain X228, X348, X458, 468, X678, 698, F100x16, F100x17, F160x24 drop forged
2) Relevant trolleys ,carriers and spare parts
3) Relevant wheels
4) Samples or customer drawings are welcome

Chain link feature and advantages

1. Friction press machine produced by forged process.

2. Continuous mesh belt furnace heat treatment.

3. High quality alloy steel material.(40Cr,20CrMnTi)

4. High temperature resistance.

5. High tensile strength.

Chain link application

The chain link is used for chain conveyor, scraper conveyor and  conveyor system and so on.

The user can select the appropriate type, material and specifications of chain link according to the different transport material and  environment.


The overhead conveyor components including drop forged rivetless chain, drop forged overhead trolley, caterpillar drive chain, trolley attachment, side link pusher dog, rollers turn roller, enclosed track chain, free carrier trolley and so on.

Material
Alloy steel
ProcessAssembled
Heat treatmentCase hardening, Meshbeltfurnace quenching heat treatment
Surface treatmentBlackened, Zinc galvanized, Nickel galvanized, Chroming, Colour Painting, or as per customer's request
PerformanceHigh precision, high wear resistance, low noise, smooth and steady, high strength
Model numberX348, X458, 468H, X678, 698, 698H, F100x16, F100x17, F160x24
Packagingplywood case

We are one of the China Conveyor, Conveyor Components and transmission Spare parts factory which earlier trial-produced and manufactured many kinds of Overhead and Floor Conveyor and components, Drop Forged chain, Overhead Conveyor trolleys, carriers, I beam steel track and Load bar, Driving Device, Tension Device, Back Whirling Device, Sliding Ramp Device, and Electrical Controller, Poultry Chain and pulley for slaughterhouse Equipment, Slaughter hook and hanger, Plastic conveyor chain for automatic conveyor system, Steel and stainless steel roller chain, chain conveyor, Conveyor Chain, Scraper Chain, elevator chain, welded steel chain, link chain, snow chain, Bearing bush, shaft, gear and sprockets. Specialized chains for sugar and palm oil industries are also available.

It has more than 20 years of chain manufacturing experience. Our factory has very strong engineering capabilities, a complete range of equipment and thorough range of inspection methods. Owing to better quality and competitive price, our products are sold well in China and been exported to Europe, America and other countries and regions.

Main products are Forged chain Conveyor and components, welded link chain, Standard and non-standard stainless steel and carbon steel roller chain, Leaf chain, standard and non-standard conveyor chain, Scraper conveyor chain, Cranked link chain, double plus chain, double pitch transmission chain, plastic chain, Bearing bush, shaft, gear, sprocket and Other accessories.

Our Conveyor and Conveyor components, Transmission spare parts are made from high quality steel and stainless steel with advanced technology. They are widely used in the mechanical Conveyor and transmission assembly line of foodstuff, pharmaceutics, rubber, printing &dying, rinsing, electronics and other industries.

According to customer's requirements, we can also produce non-standard products. We assure our customers of our best service. We like to establish business relationship with customers all over the country and the world. If you have requirements, please feel free to contact us. We are trying our best to meet the needs of the customers and serve them whole-heartedly and sincerely.
