PU Sandwich Panel Forming Machine

PU Sandwich Panel Forming Machine
Price: Negotiable
Trade Terms: FOB
Min Order: 1 /Piece
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Metal Rolling&Drawing Machine

Product Description

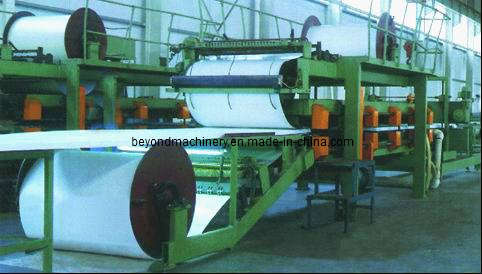

PU sandwich panel forming machine
The technical plan made below includes the following parts: Hydraulic powered uncoiler, film covering equipment, roll forming machine, preheating oven, polyurethane system, double belt conveyor, double belt heating device, cutting device, automatic stacker, packing system.
Specifications:

Sandwich panel Spec.
1. Min. Cutting length 3 meters
2. Max. Stacking length 15 m
3. Panel width 1000mm
4. Panel thickness Min thickness: 40mm(corrugated sandwich panel) 50mm (wall panel)
5. Max. Thickness: 150mm(excluding corrugated sandwich panel)

Steel Sheet Spec.
1. Thickness 0.4-0.8mm(the don't have any corrugation, the width accuracy need to be ± 2mm)
2. Width 1250mm
3. Max. Coil weight 5tons
4. Inner Dia. Of coil 508mm, 610mm
5. Whole line Spec
6. Working speed max. 7m/mm(adjustable)
7. Total length about 115m
8. Working height 1200mm (height of panel coming out)
9. Pressure for foaming 150-200 bar
10. Double belt conveyor 21m
11. Controling system PLC
12. Total power about 300Kw
13. Power required 380/3 phase/50Hz
14. Control voltage 24V 110V 220V
15. Air Pressure 0.7Mpa (for buyer to prepare)
Beyond Machinery Industrial Co., Ltd is a professional supplier mainly specialized in R&D, manufacturing, sales and technical service of construction machinery, especially in the field of roll forming machine. Located in Shanghai, our company has very convenient transportation networks, about 30 min drive to Pudong International Airport and 30 minutes to Shanghai Yangshan Seaport. Our staff members have been tirelessly devoted to research and development, and have helped significantly to promote product quality and make the product quality meet international standards.

Company follows the principle of "people oriented & independent innovation", taking the aim of "quality first, faithful cooperation, professional service and reasonable price", We achieve a considerable market share in domestic and foreign markets. We have established favorable relationships with many clients in more than 20 countries in North America, East Europe, South America, Australia, Middle East, Southeast Asia and Africa.

In particular, we are a leading supplier in the field of roll forming machine and slitting machine, we can provide professional service for commissioning up, supplying raw materials, through design, final products etc. Working to extend our presence internationally, we are looking forward to cooperating with you for mutual benefits.
