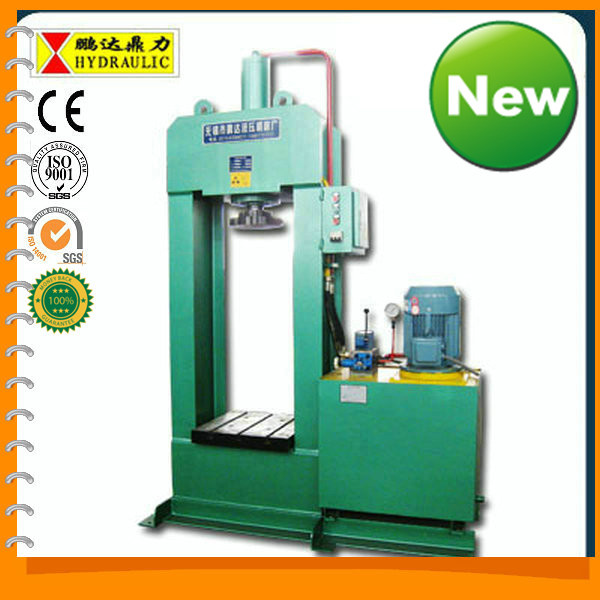

Pengda CE ISO9001 ISO14001 Hydraulic Shop Press

Pengda CE ISO9001 ISO14001 Hydraulic Shop Press
Price: US $ 8000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: YP35
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control System: Nominal or CNC
Voltage: 220V/380V
PLC: Mitsubishi / Siemens
Electric Units: Schneider
Motor: Tatung
Pump: Anson / Yuken
Pressure Gauge: Skon
Certificate: CE, ISO, SGS
Warranty: 2 Years
Forging Forming Method: Mold Forging

Product Description

Pengda H Frame Hydraulic Press Feature ? 1). Working pressure and slider stroke can be adjusted. ? 2). Completed steel plate design guarantee machine to be strong and stable. ? 3). Oil cylinder adopt welded steel frame rigid to deflection moment.?Shot blasting and specially treated against RUST. ? 4). Overload overflow protection is outfitted to hydraulic system,?can assure no leakage, and the oil level can be read or seen directly ? 5). Hydraulic support insurance circuit to prevent go-down of slider out of control. ? 6). Electrical panel with cooling system designed to meet CE Standards and composed?of automation and electrical equipments with SIEMENS brand. Package & Shipping 1. Outside package: Standard export wooden cases or shell feed plate 2. Inner package: Stretch film Guarantee and After-sale Services * one year guarantee for whole machine except consumables * 24 hours technical support by e-mail and telephone * use-friendly English software, user manual and detailed videos/CD * abroad installation, commissioning and training(charge) Company Information
Type Unit   63T 100T 160T 200T 315T
Nominal force KN   630 1000 1600 2000 3150
Maximum working pressure of the fluid MPa   24.7 26.3 26 25 25
Maximum stroke of the cylinder mm B 500 600 800 800 1000
Pressure head down speed Mm/s   23 16 24 19 15
Pressure head return speed Mm/s   77 48 93 43 55
Motor power KW   5.5 5.5 11 11 15
Maximum opening from pressure head to the table mm A 1400 1600 1800 2200 2400
The best moving out stroke of the table mm H 550 600 700 800 900
Table size L-R mm C 800 850 950 1000 1000
F-B mm D 500 600 850 1000 1000
Distance between left and right mm E 900 1100 1150 1200 1200
Total height mm F 2480 2688 3000 3200 3300
Body width mm I 3200 3800 4100 4500 4700
Deep of the machine pit mm G 600 600 734 734 850

Wuxi Pengda Hydraulic Machine Factory is specialized in hydraulic press machine. We are located in a beautiful and strong economy city and near Shanghai.

We are the largest company in China Hydraulic Press Town, founded in 2003, with 30, 000 square meters worrkshop. We have 5 best engineers and over 30 technological elite, all of them have good technological skills and rich experience. We have advanced design capabilities, strong technical force and rich experience in installation and debugging. Company has a strong processing power, with all sorts of lathe machine, milling machine, planing machine, grinding machine, floor type boring and milling machine, horizontal boring machine, plano-boring and milling machine, numerical controlled flame cutting machine, CNC milling machine production equipment. Complete testing process guarantee each products working well after leave factory.

Our products have 11 series and more than 100 kinds. Single column hydraulic presses, four-column hydropresses, hydraulic rectifying machines, motor press mounting machines, motor aluminum casting machines, digital controlling hydropresses, plastic product hydropresses, thin plate stretching machines, universal hydropresses and desktop hydraulic presses are Our main products. It is mainly applicable in various motor industries, such as thin plate stretching, powder metallurgy, electronic meters, plastic products and motorcycle and automobile manufacture etc. We got CE, ISO9001, ISO14001 certificate, and till today, our products spread most China city, Europe, South Africa, Middle East, South America and Southeast Asia etc.

Hydraulic press, of course Pengda! We are looking forward to cooperation with you!
