Overhead Conveyor Components (hanging spare parts)

Overhead Conveyor Components (hanging spare parts)
Price: US $ 3/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
Prod Model: X458, X348, X678
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fuction: Overhead Conveyor Line
Usage: Transport
Structure(for Chain): Forging Chain
Type: Hanging Conveyor

Product Description

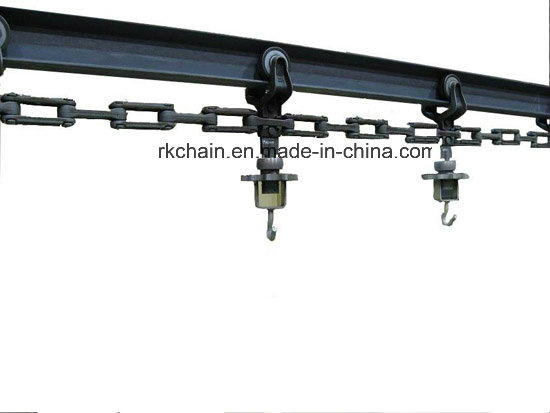

348 Trolley-63.5mm drop
Standard trolley has a rivetted 59mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover, weight of two wheel trolley 1.35kg
458 Trolley-81.0mm drop
Standard trolley has a rivetted 80mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover, weight of two wheel trolley 2.70kg
458 Trolley-104.0mm drop
Standard trolley has a rivetted 59mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover., weight of two wheel trolley 2.90kg

678 Trolley(4"-6")-88.0mm drop
Standard trolley has a rivetted 59mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover, weight of two wheel trolley 3.20kg
678 Trolley(6"-6")-101.6mm drop
Standard trolley has a rivetted 59mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover, weight of two wheel trolley 7.8kg.
X348   63.5mm1.35kgs
X458   81.00mm2.70kgs
X458   104mm2.90kgs
X678   88mm3.20kgs
X678  101.60mm7.80kgs

We are one of the China Conveyor, Conveyor Components and transmission Spare parts factory which earlier trial-produced and manufactured many kinds of Overhead and Floor Conveyor and components, Drop Forged chain, Overhead Conveyor trolleys, carriers, I beam steel track and Load bar, Driving Device, Tension Device, Back Whirling Device, Sliding Ramp Device, and Electrical Controller, Poultry Chain and pulley for slaughterhouse Equipment, Slaughter hook and hanger, Plastic conveyor chain for automatic conveyor system, Steel and stainless steel roller chain, chain conveyor, Conveyor Chain, Scraper Chain, elevator chain, welded steel chain, link chain, snow chain, Bearing bush, shaft, gear and sprockets. Specialized chains for sugar and palm oil industries are also available.

It has more than 20 years of chain manufacturing experience. Our factory has very strong engineering capabilities, a complete range of equipment and thorough range of inspection methods. Owing to better quality and competitive price, our products are sold well in China and been exported to Europe, America and other countries and regions.

Main products are Forged chain Conveyor and components, welded link chain, Standard and non-standard stainless steel and carbon steel roller chain, Leaf chain, standard and non-standard conveyor chain, Scraper conveyor chain, Cranked link chain, double plus chain, double pitch transmission chain, plastic chain, Bearing bush, shaft, gear, sprocket and Other accessories.

Our Conveyor and Conveyor components, Transmission spare parts are made from high quality steel and stainless steel with advanced technology. They are widely used in the mechanical Conveyor and transmission assembly line of foodstuff, pharmaceutics, rubber, printing &dying, rinsing, electronics and other industries.

According to customer's requirements, we can also produce non-standard products. We assure our customers of our best service. We like to establish business relationship with customers all over the country and the world. If you have requirements, please feel free to contact us. We are trying our best to meet the needs of the customers and serve them whole-heartedly and sincerely.
