Prod Model: |
CF-52 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |

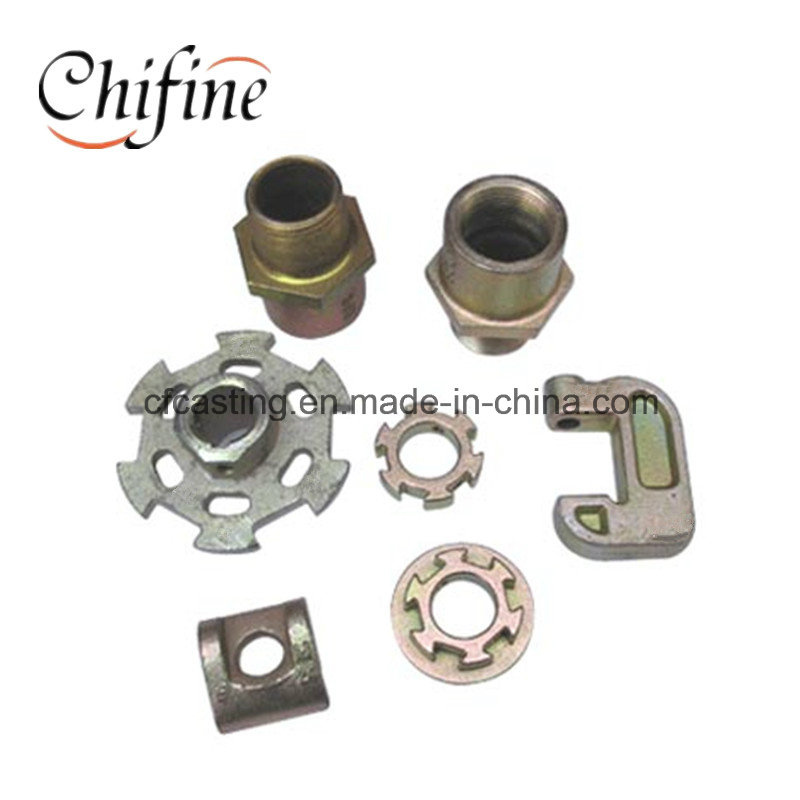

Carbon Steel Investment Casting |
Model No.: |
Machining Part 37 |
Usage: |
Automobile, Agriculture, Engineering,etc |
Brand: |
Chifine |
Material Available: |
Carbon Steel, Stainless Steel, Alloy, Ductile Iron |
Dimension: |
Can Be Customized as Your Requests |
Country Of Origin: |
China |
Package: |
Wooden Case or as Your Requirement |
Leading Time: |
30 Days |
OEM: |
Available |
Casting Method: |
Thermal Gravity Casting |
Material: |
Carbon Steel |
Surface Preparation: |
Sand Blast |
Product Description
Product Description:
1. Carbon steel investment casting by lost wax investment casting
2. Moulding process: Water glass Precision Casting
3. Material: Carbon steel
4. Possible Heat Treatment: Normalizing, tempering, hardening and tempering
5. Industry involved: Agricultural& Engineering& Automotive industry
6. Part Unit Weight range: 0.01Kg~100kg
7. Wall thickness requirements: Min 2mm
8. Manufacturer certification: ISO9001 (2008)
9. OEM service is available
10. We can do the parts according to the clients' drawings or sample or special requirement.
Service
*OEM&ODM are provided.
*24 hours online technical support.
*Equipped with advanced inspection facilities and the professional inspectors for the products' testing and inspection.
*Customized orders are welcomed.
*Sample will be offered before the trial order.
Description | Material | Technical process |
Carbon steel casting | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205,450-240,485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446),GS-52(1.0552),GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting |
Stainless steel casting | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi189(1.4308), G-X7Cr13(1.4001),G-X20Cr14(1.4027),1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
Alloy steel casting | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
Ductile iron casting | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2 | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
Grey iron casting | ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
