| Prod Model: |
MH145 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Centrifugal Pump |
| Structure: |
Multistage Pump |
| Power: |
Electric |
| Type: |

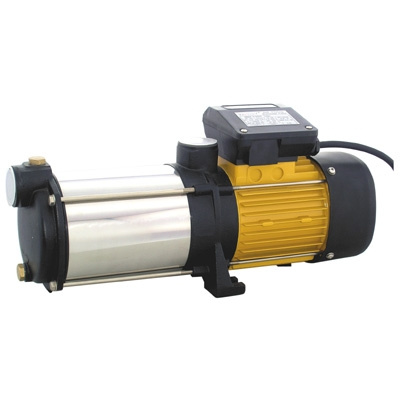

Horizontal Multistage Centrifugal Pump |
Product Description
APPLICATIONS: For domestic and industrial applications, irrigation and hydropneumatic sets.
Quiet running multistage centrifugal pump. Built-in self priming value, not very sensitive to the impurities. Self-priming up to 8 m.
PUMP
--- Delivery up to 145l/min (8.7 m3/h).
--- Head up to 75m.
--- Temperature of pumped liquid: 0-40 C
--- Maximum operating pressure: 8.0 bar.
MOTOR
--- Asynchronous, two poles.
--- Protection class: IPx5.
--- Class F insulation.
--- Single phase version 220-240V 50Hz with automatic reset overload protection.
--- Three phase version: 220-240V/380-415V 50Hz, the overload protection must be provided and installed by the user in the control panel.
--- Maximum ambient temperature 40 C
MATERIALS
--- Suction/discharge mounting in Cast Iron (Casting brass are available).
--- Pump Housing in SUS 304 stainless steel.
--- Diffussor in PPO (Noryl® )
--- Impellers in PPO (Noryl® ) (SUS 304 Stainless steel are available).
--- Motor Shaft in SUS 416 stainless steel (Carbon Steel and SUS 316 stainless steel are available)
--- Mechanical seal with Ceramic/graphite, NBR elastomers, other parts are made of SUS 304 stainless steel.
--- O-Ring made of NBR ( EPDM are available).
OPTIONAL FEATURES
--- Different voltages and frequencies.
--- Different materials for the mechanical seal.
|
PERFOMANCE DATA AT n=2850 min |
|
|
|
PUMP MODEL |
INPUT |
OUTPUT |
Q m3/h |
0 |
1.2 |
2.4 |
3.6 |
4.8 |
6 |
7.2 |
7.8 |
8.7 |
|
KW |
KW |
HP |
l/min |
0 |
20 |
40 |
60 |
80 |
100 |
120 |
130 |
145 |
|
MH145 2M |
0.90 |
0.55 |
0.75 |
H (m) |
25 |
23 |
20 |
17 |
14 |
10 |
6 |
4 |
0 |
|
MH145 3M |
1.25 |
0.75 |
1.00 |
37 |
35 |
33 |
30 |
25 |
19 |
13 |
8 |
2 |
|
MH145 4M |
1.65 |
1.10 |
1.50 |
50 |
48 |
45 |
41 |
35 |
28 |
18 |
14 |
5 |
|
MH145 5M |
2.00 |
1.50 |
2.00 |
62 |
60 |
57 |
52 |
46 |
37 |
25 |
19 |
7 |
|
MH145 6M |
2.40 |
1.85 |
2.50 |
75 |
73 |
68 |
62 |
53 |
43 |
31 |
25 |
12 |
