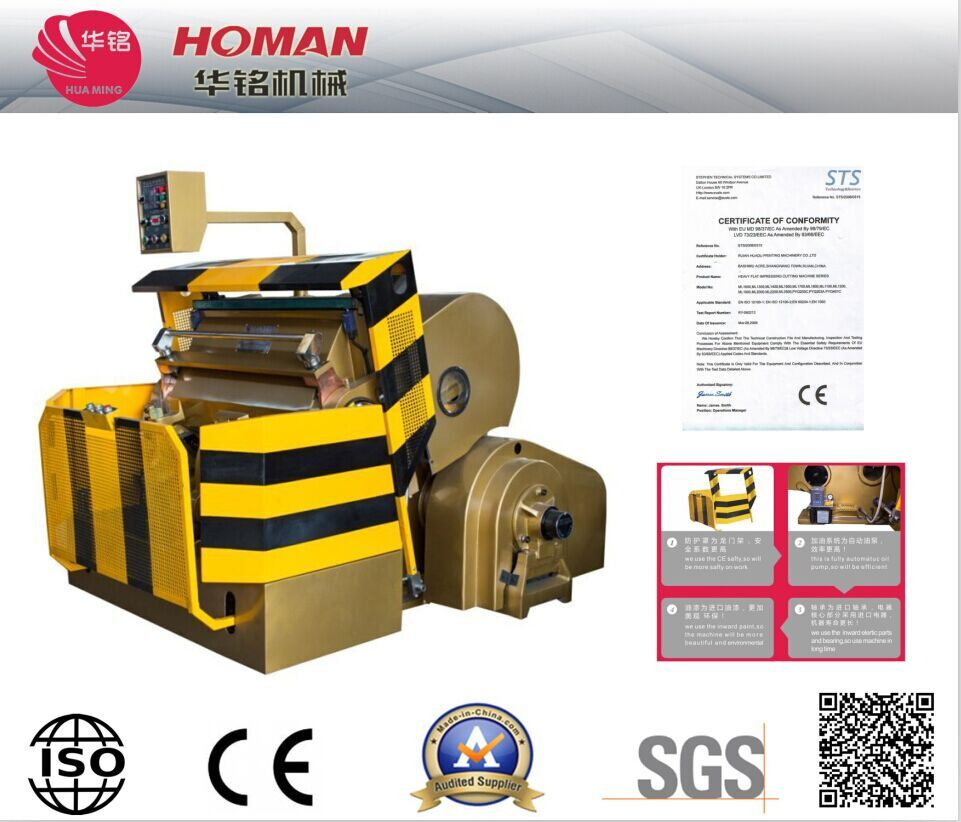

Ml1500 Die Cutting Machine

Ml1500 Die Cutting Machine
Price: US $ 9000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Money Gram
Prod Model: ML1500
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Price: Best
Imprinting Type: Platen
Placing Form Of Template: Horizontal
Die Cutting Tool: Metal Mold
Automatic Grade: Semi-Automatic
Application: Paper Packaging Materials

Product Description

Product Description:
Creasing and Die Cutting Machine is special equipment for creasing and cutting ordinary cardboard, corrugated board, plastic and leather. It's very applicable to printing packaging decoration and plastic industries. The machine has compact structure, in workmanship, big pressure, high precision and easy and reliable operation etc.
Main Specification :
* High strength due to one piece casting by using top quality material for the machine body.
   *Smooth running, big pressure and low noise are obviously remarked as lnter gear input and helical gear output mechanism is adopted.
   *Single plate electromagnetic clutch is sensitive and reliable.
   *Operational altitude is reasonably arranged, movable platen opens to its optimum.
   *The electrical system is designed in conformity with IEC standard.
   *With functions as single, continuous operation and opening dwell. And the dwell time is adjustable.
   *The safety system is reliable.
   *With concentrated lubricating system.

Model


Inner Chase Size


Speed


Max.Rule Length


Motor Power


Machine Weight


Overall Dimensions

PYQ401C

750×520mm

25

15m

2.2kw

2000kg

2300×1500×1500mm

PYQ203C

930×670mm

23±3

25m

4kw

3000kg

2350×1900×1800mm

PYQ203A

930×670mm

23±3

30m

5.5kw

3500kg

2350×1900×1800mm

ML1040

1040×720mm

23±3

30m

5.5kw

3800kg

2350×1900×1900mm

ML1100

1100×800mm

20±2

35m

5.5kw

4500kg

2450×2100×1900mm

ML1200

1200×820mm

20±2

35m

5.5kw

5000kg

2500×2100×1900mm

ML1300

1300×920mm

15±2

40m

7.5kw

6000kg

2550×2100×1950mm

ML1400

1400×1000mm

15±2

45m

7.5kw

6500kg

2650×2100×2000mm

ML1500

1500×1050mm

14±2

45m

7.5kw

7000kg

2700×2100×2150mm

ML1500A

1500×1150mm

14±2

45m

7.5kw

7300kg

2700×2100×2200mm

ML1600

1600×1250mm

13±2

50m

11kw

11500kg

2800×2250×2300mm

ML1800

1800×1280mm

13±2

60m

15kw

13000kg

3000×2250×2350mm

ML2000

2000×1400mm

12±2

65m

15kw

15500kg

3100×2330×2600mm

ML2500

2500×1400mm

12±2

70m

18kw

18500kg

3600×2330×3100mm

*Shipping time
Delivery within20 days upon your payment.

*Packaging
Plastic film wrap and export standard wooden case
Huaming Machinery Co., Ltd. is a professional manufacturing plant of post-printing equipment which was recently invested by Ruian Huadu Printing Machinery Co., Ltd. The original Company was founded in 1999. It integrates R&D, design, manufacturing, sales and services into one. Over the past 15 years, the Company has been committed to the R&D of high and new technologies and manufacturing of products, constantly introducing the most advanced foreign technologies, and combining with the advanced technologies, rich experience and leading manufacturing techniques of domestic senior engineers to build and launch a new generation of high-efficient post-printing equipment.

The equipment manufactured by Huaming includes die cutting machine(heating system), hot foil stamping and die cutting machine, film laminating machine, UV coating machine. Our equipment are sold to 50 foreign countries. We have established 96 sales outlets and 8 offices around the country, as well as 68 agents around the world, so as to provide high-quality and fast before-sale and after-sale services for our customers.

Huaming has become a national hi-tech enterprise by constantly drawing advanced technologies from international similar products and giving play to their own outstanding innovation ability. Its products owns 23 national patent technologies and have successively passed the ISO9008 system certification, CE certification and other professional quality certifications. Huaming manufacturing base II is located in the Ruian, Wenzhou City, Zhejiang, covering an area of over 13000 square meters and construction area of over 20000 square meters. It has more than 200 employees, including 20 senior engineers in the R&D center. By implementing the 5S site management mode, from inspection of outsourcing parts, processing of parts, whole machine assembly, ex-factory inspection and each process has the system guarantee.

Huaming is striving to build a internationally famous brand from the perspective of internationalization. It adheres to the principle of "market-oriented, service-driven, survive with quality and Science and technology for development".

In the light of such policies as adapting to market demands, basing on science and technology and seeking market share through quality, Huaming aims to reduce cost and market competition, provide better services for customers at home and abroad, and enable customers to obtain greater benefits.
