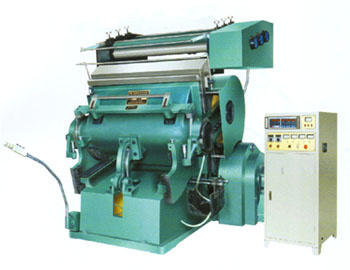

Micro-Computer Control Hot Foil Stamping Machine

Micro-Computer Control Hot Foil Stamping Machine
Price: US $ 8000-13000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P
Prod Model: TYMK750/930/1100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Main Platen Working Area: 720*510mm
Main Stamping Area: 670*480mm
Working Pressure: 150tons
Foil-Feeding Length: 500mm
Working Speed: 25stroks/Min
Main Machine Power: 2.2kw
Overall Power: 4.5kw
Classification: Intermittent Stamping Machine
Color & Page: Single Color
Suitable Material: Paper
Automatic Grade: Semi-Automatic
Application: Paper
Plate Type: Metal Plate

Product Description

Micro-Computer Control Hot Foil Stamping Machine with Die Cutting.

TYMK series Computer control hot stamping and die cutting machine is new generation products with high precision and excellent effect. They are used for hot stamping all kinds of colored foil and embossing upon pictures, Advertisement samples, paper label, covers of books, season greeting cards, packaging cartons, and high grade decoration and printing materials, etc. The suitable base materials are including paper, cardboard, plastics and leather products, etc. So that they are ideal equipments for printing, packaging and plastics post printing process fields.

Features of hot foil stamping machine:
High strength due to one piece casting by using high quality material for machine body. Single plate electromagnetic clutch is sensitive and reliable.
Operation position is reasonably arranged, moving-bed can open to its optimum.
Computer controlled system is reliable.

Skipping is accurate, so as to save foils.

With functions of continuous and opening dwell operation, dwell range is adjustable.

Safety system is reliable.

Central lubrication system guarantees fine lubrication and reduce friction.
Special size such as 1300 model also available.

Main technical specifications:
ModelTYMK750TYMK930TYMK1100
Max platen working area750x510mm930x660mm1100x800mm
Max gilding area690x480mm930x660mm1100x800mm
Skip order rangeBuilt-in processor in computer
Working pressure150Ton170Ton220Ton
Foil-feeding length500mm640mm800mm
Foil-feeding group2 groups3groups3groups
Working speed25stroks/min22stroks/min20stroks/min
Main machine power2.2kw3kw4kw
Overall power4.5kw9kw9kw
Dimension1.40x1.55x1.70mm1.83x1.67x2.20mm2.0x1.95x2.3mm
Machine weight1900kg3500kg4700kg


We have the pleasure of introducing ourselves to you as a professional manufacturer and exporter specializing in various printing and packaging machinery & materials, and machine parts in China for more than 16 years,

We have our own production bases to produce printing and packaging machinery, and materials etc. We supply industrial machine from single machine to turn key projects, from existing products to producing machine according to buyer's drawing and requirements. Particularly it is worth mentioning that we have a professional team who has been in printing and packaging industry for many years, this makes us in such an advantage that we can easily supply extensive machines for printing and packaging industry at very attractive prices. As it maybe not easy to contact and communicate with different factories, furthermore, you are difficult to know the reputation and credit of such factories, most of them are not authorized for export directly. Even for those who have approved to a direct export, we can do better in prices and services. All our products are under quality warranty and our professional staff will provide best service for you. Through our unremitting efforts in developing overseas market, we have won good reputation among customers worldwide. Therefore lots of manufacturers appointed us to be their sole export representative, we can get best price and prompt service to our customers.

We feel confident you will agree after first cooperation, that our products are both good in quality and competitive in price.

Our printing and packaging machines including:

1. Series semi or fully automatic die cutting and creasing machines

2. Automatic hard cover making machines or automatic case makers, rigid gift box machines

3. Series slitter rewinders, paper sheet cutting machine

4. Complete lines for making plastic bag: Rotogravure printing machine, dry laminating machine, various bag making machine, film blowing machine, flexographic press.

5. Multi-function coating machine for making various adhesive tapes and special materials.

6. Label making machinery such as flexo printing machine, label die cutting machine etc.

7. Automatic filling, capping, labelling machines.

8. Screen printing machines, hydraulic laminating machine, UV coating machine

9. Strapping machine, vacuum packaging machine, Auto-carton sealer, heat shrink packing machine, desktop vacuum packaging machine, pad printing machine, hand film sealer, pallet stretch film shrink wrapper.

10. Paper core or tube making machines

11. Paper cup, paper bowl forming machines, cheese box forming machine.

12. Machine parts such as rubber roller, rotogravure printing cylinder, tension controller, colour register system, still picturing video system, air shaft, EPC, LPC, magnetic powder clutch and brake, meter counter, electric shock device, viscosity controller etc.

13. Plastic thermoforing machine

14. Paper cutter, automatic folder gluer, embossing machine, automatic flute laminating machine etc. And other postpress equipment.

15. Printing&packaging materials.

16. Office Equipments: Paper shredder, paper cutter, laminator, binding machine, puncher, stapler and stationery.

17. Corrugated carton making machines.

18. Window & door assembling machines(AL, PVC).

Please don't have any hesitation to contact us for more information.

We are looking forward to cooperating with friends from all around the world!
