| Prod Model: |
Y83-5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Cold Pressing to Columniform Caky Block |
Product Description
Applications:

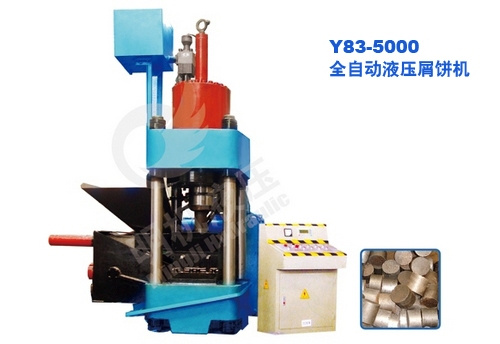

This machine is used for cold pressing of othe metal scraps including powdery grainy cast iron scrap, high grade ductile cast iron scrap, alloy scrap, steel scrap, aluminium scrap copper scrapect. To columniform caky block with the density ≥ 5.5~6.2T/m3(without any bond). The output of the shift is 8~20 tons. This machine is designed with vertical structure, upper & nether beams of cast steed, auto charging, auto discharging, PLC control, indicator of order adjusting and cooling system with circling water which can be operated by single person. The machine has been granted two national patents and been only produced by out factory in China.
Featurss:
1\Hyadulic drive, operation stable, no vibration, safe & reliable.
2\Simple foundation needed.
3\PLC control adopted; User can choose manual or automatic operation.
|
Type |
Y83-3150 |
Y83-3600 |
Y83-5000 |
Y83-6300 |
|
Nominal Force(KN) |
2850 |
3518 |
4453 |
5946 |
|
Inner diameter of main cylinder |
Φ360 |
Φ400 |
Φ450 |
Φ520 |
|
Size of briquette(mm) |
Φ90~Φ100*(60~100) |
Φ100~Φ130*(60~100) |
Φ110~Φ140*(80~120) Φ140~Φ160*(80~150) |
|
Density(T/m3) |
≥ 5.5 |
≥ 5.5~6 |
≥ 5.5~6 |
≥ 5.5~6 |
|
Weight of briquette(Kg) |
3~4 |
3~4.5 |
4~8 |
6~10 |
|
Productivity(Block/min) |
6 |
5 |
4~5 |
4~5 |
|
Output in one shift(T) |
8~12 |
8~14 |
12~16 |
16~20 |
|
Total power(Kw) |
30(26) |
30(26) |
30(26) |
37 |
|
Weight of machine(Kg) |
6650 |
6900 |
8950 |
10000 |
|
Overall dimension(mm) |
3100*2900*3200 |
3200*3000*3200 |
3300*3100*3600 |
3400*3100*4000 |
