Prod Model: |
GW-HY101 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Melting Material: |
Steel Alloy, Copper, Aluminum, Iron |
Product Description
Product Description
This is the device converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting and is applicable to melting, heating or holding of steel, copper, iron, aluminum, zinc, tin, nickel silver and other ferrous or nonferrous metal and alloy material, as well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.
1. Using a zero-voltage scanning soft-start mode, in any case may at any time to start or stop, will not have impact on power supply.
2. Fast smelting with low production cost; Low-pollution and environment-friendly;
3. A direct effect from the cold furnace melting. Dissolved material will be fully dumped clean. Molten material easy to replace.
4. Power adjustment flexibility. Be able to continuously smooth adjustment. Temperature uniformity can be easily controlled. Oxidation burning less. Metal components evenly.

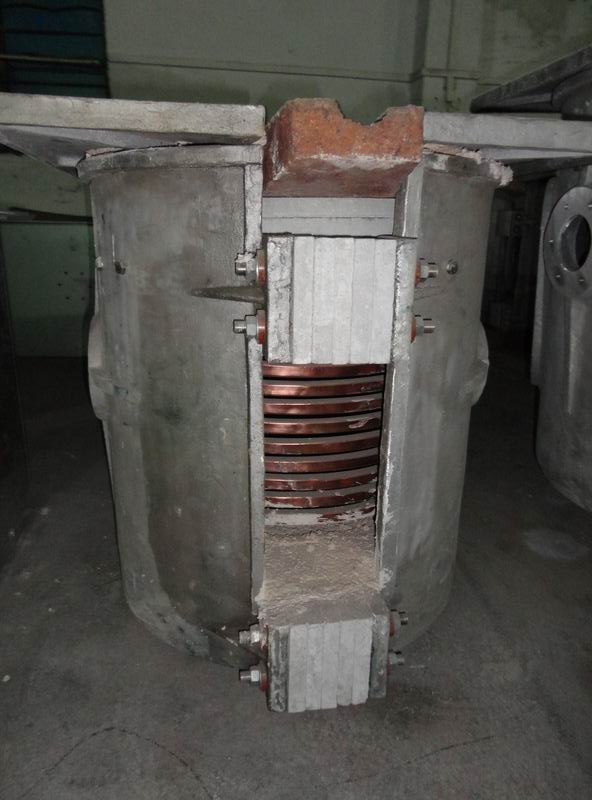

5. Furnace shell using cast aluminum or steel structure, small footprint; Furnace flip dump convenience, according to the need to use electric, manual, hydraulic tilting furnace and other means.
6. Designed to automatically adjust angle of inverter circuit that can automatically adjust the load impedance match, without adjustment of capacitance compensation and always run the equipment in good working condition; Power supply system diagnostic error function, easy maintenance.
Product Feature
1. High Reliability And Long Service Life.
2...It won a good reputation among customers
3. We have overseas company of hengyang
Product Specification/Models
Type: Induction Furnace
Power: 5000KW
Output Voltage: 880V
Supporting Transformer: 7500kVA
Input Voltage: 660V
Input Current: 4560A
Melting time: 70-100min
Furnace Capacity: 10000kg
Output Frequency: 1kHz
Furnace maximum temperature: 1650
We have stocks so we can arrange the delivery very fast!
We keep "First Quality, First Customer, First Service"
Sincerely provide service for you!
Furnace Capacity |
Rating Power |
Input Voltage |
Input Phase |
Input Current |
Assorted Transformer |
Output Voltage |
Output Frequency |
Melting Time |
Volume |
Weight |
10-50KG |
50KW |
380V |
3 |
80A |
60KVA |
750V |
2.5KHZ |
20-60Min |
1.2 m³ |
350KG |
100KG |
100KW |
380V |
3 |
160A |
120KVA |
750V |
1KHZ |
20-60Min |
6 m³ |
1500KG |
150KG |
100KW |
380V |
3 |
160A |
120KVA |
750V |
1KHZ |
30-70Min |
6.5m³ |
1600KG |
200KG |
120KW |
380V |
3 |
192A |
150KVA |
750V |
1KHZ |
30-70Min |
7.5m³ |
1700KG |
300KG |
130KW |
380V |
3 |
208A |
150KVA |
750V |
1KHZ |
30-70Min |
8.5m³ |
1800KG |
500KG |
250KW |
380V |
3 |
400A |
315KVA |
750V |
1KHZ |
30-70Min |
9.5m³ |
2300KG |
600KG |
350KW |
380V |
3 |
560A |
400KVA |
750V |
1KHZ |
40-80Min |
11m³ |
2500KG |
750KG |
450KW |
380V |
3 |
720A |
500KVA |
750V |
1KHZ |
40-80Min |
12m³ |
3800KG |
1000KG |
600KW |
380V 380V-2 |
3/6 |
960A 480A |
600KVA 800KVA |
750V 1300V |
0.8KHZ |
50-90Min |
13m³ |
4500KG |
1250KG |
800KW |
380V 380V-2 |
3/6 |
1280A 640A |
800KVA 1250KVA |
750V 1300V |
0.8KHZ |
50-90Min |
14m³ |
5000KG |
1500KG |
1000KW |
380V 380V-2 |
3/6 |
1600A 800A |
1250KVA 1500KVA |
750V 1300V |
0.8KHZ |
50-90Min |
15m³ |
5500KG |
2000KG |
1250KW |
660V 380V-2 |
3/6 |
1120A 1000A |
1500KVA 1800KVA |
1300V |
1300V |
50-90Min |
17m³ |
6000KG |
3000KG |
1500KW |
660V 380V-2 |
3/6 |
1350A 1200A |
1800KVA 2000KVA |
1300V |
1300V |
60-100Min |
20m³ |
7000KG |
5000KG |
2500KW |
1000V 660V-2 |
3/6 |
2000A 1120A |
3000KVA 3500KVA |
1300V |
1300V |
60-100Min |
23m³ |
8500KG |
