Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Light Steel Keel Machine |
Product Description

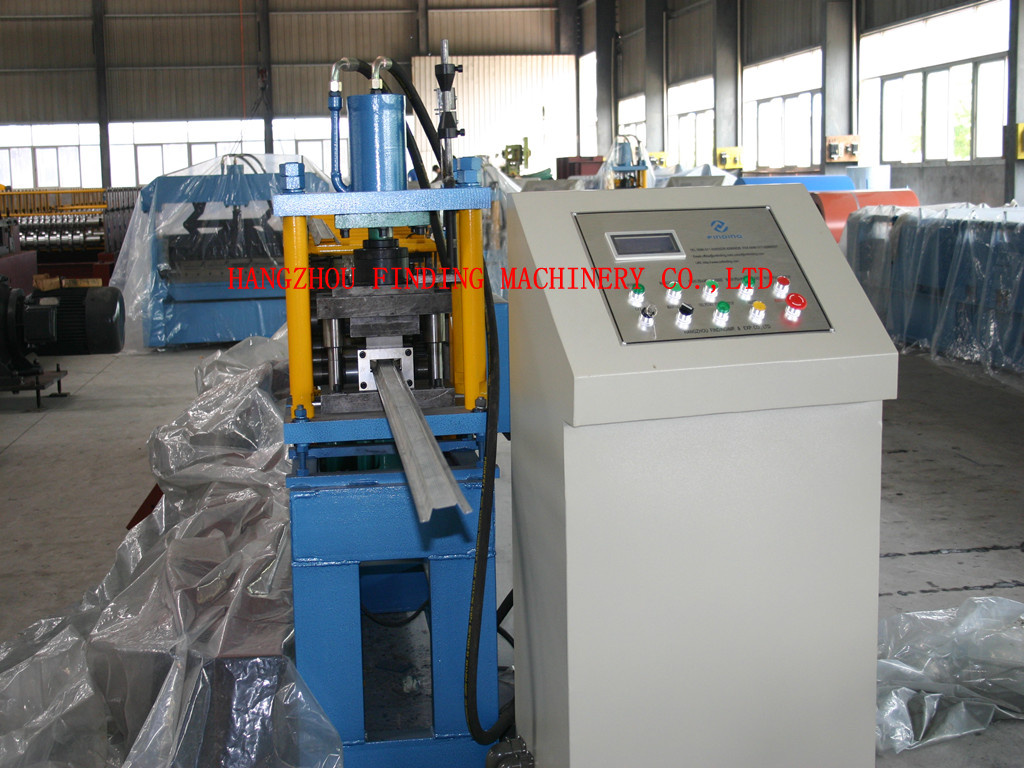

Our product: Cold roll forming machine, roll forming machine, dry wall forming machine.
Machine's components:
1. Uncoiler and its base.
2. Coil sheet guiding and adjusting device.
3. Roll forming System.
4. Punching System(optinal).
5. Hydraulic post cutting System
6. PLC control System.
7. Support table.
Main technical parameters
Suitable material Galvanized Steel sheet
Thickness of material 0.3~0.8mm
Yield strength 235-345Mpa
Forming Speed about 15000 mm/min.
Power Requirement Main motor power: 5.5 Kw (Depend on final design)
Hydraulic station power: 2.2 Kw (Depend on final design)
Decoiler Max. Capacity: 3000kgs
Control system Mitsubishi PLC and converter
Type of cutting length-set cutting and post forming style
Electric condition 400V/3Phase/ 50Hz or as per buyer's requirement
Total weight About 4500kg.
Hangzhou Finding Co., Ltd, is a Group company, we have our own factory to make steel roll forming machine, such as tile forming machine, corrugated steel sheet forming machine, c or z purline machine, floor decking sheet forming machine, sandwich panel machine line, cut to length machine line, shutter door forming machine, embossing machine, etc.
Factory to make Steel coils( GI, PPGI, GL, PPGL )
Factory to make corrugated steel sheet
Factory to make EPS and PU sandwich panel
Factory to make solar cell and solar panel
Success of our company comes from success and development of our customers. We bear this in mind in the whole process from design, product research and development to after-sales service.
