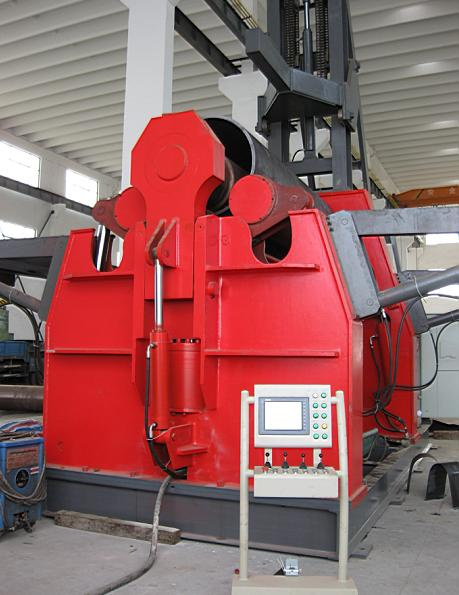

Hydraulic Rolling Forming Machine (W12NC-30*2500)

Hydraulic Rolling Forming Machine (W12NC-30*2500)
Price: Negotiable
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: W12NC-30*4500
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Red
Control: CNC
System: Hydraulic
Type: Metal Rolling&Drawing Machine

Product Description

Rolling forming machine
Leveling easily
Once cycle forming
Large cone rolling more efficient
Easy to corect

Rolling forming machine
1. Superiority and some features usually only in large size plate rolling machine:
2. Fully hydraulic-driven (as opposed to the usual manual and mechanical movement)
3. Multiple independent hydraulic motor (as opposed to only one set of electric motors, reduction unit and gear)
4. Automatic hydraulic line speed compensation (as distinct from inefficient clutch)
5. Clamping pressure control (as opposed to holding without control)

Machine model options
1. Roller surface hardened
2. Hydraulic roller cone winding attachment
3. Surface finishing
4. Hydraulic top support system
5. Hydraulic side pressure
6. Brace perimeter security fence
7. CNC control system
8. Automatically oil cooler

Model standard device
1. LCD digital electronic reading devices
2. Two clamping pressure rollers, driven by two independent hydraulic motor
3. Driven hydraulic front controller more speed,
4. Control of the entire machine
5. Emergency security emergency stop

Following users apply to use the machine
1. First use of the user, because this is one of the most easy-to-operate machine
2. Operators lack of inspection requires high productivity,
3. Increase profitability requires high accuracy,
4. Improving quality want only one operator, reducing labor costs
5. Due to the large size of the Board, production of high-or for security reasons require handling device
6. Want to use CNC operations.
Model Plate width (mm)
Max.   plate
thickness (mm)

Pre-bending thickness

(mm)
Minimum reel diameter (mm) Plate yield limit (MPa)
Diameter of

upper roller
  (mm)

Diameter of

lower roller
  (mm)

Diameter of

side roller
  (mm)
W12NC-12× 4000 4000 12 8 800 245 380 340 280
W12NC-16× 3200 3200 16 12 800 245 380 340 280
W12NC-20× 2500 2500 20 16 800 245 380 340 280
W12NC-25× 2000 2000 25 20 800 245 380 340 280
W12NC-32× 2500 2500 32 25 1500 245 520 500 350
W12NC-32× 4000 4000 32 25 1300 245 650 580 480
W12NC-40× 3200 3200 40 32 1300 245 650 580 480
W12NC-45× 2500 2500 45 40 13600 245 650 580 480
W12NC-50× 2000 2000 50 42 1300 245 650 580 480
W12NC-50× 3200 3200 50 40 1800 245 680 650 520
Nantong Shengli Heavy Machine Manufacturing Co., Ltd. is a professional machinery manufacturing company which is engaged in the research and development of rolling machines(W11S, W11, W12series), shearing machines(QC11Y series) and press brake(WC67Y), tube benders and other project large scale machineries. Located in Nantong, Jiangsu Province, China

In recent years, our company has been focusing on the principles of "people-first" and aims to manufacture products in line with ISO2000: 9001, CE international management standards. We strengthen management and keep the overall capability in this industry, and the quality of our product has been greatly improved. Our advantages lie at quality, prices and services

Our company owns the import and export licenses. Our products are mainly exported to Asia, America and Europe. Our company has won the recognitions from foreign and domestic customers with good quality and has established long-term co-operative relationships with them.

We are willing to provide the most satisfactory services for customers around the world and sincerely welcome foreign and domestic friends to visit our company and co-operate on win-win situations.
