| Markets: |
South America,Africa,Mid East,Eastern Asia,Western Europe |
| Usage: |
Stone Cutting, Drilling |
| Manufacturing Arts: |
Sinter |
| Kind: |
Diamond Drill |
| Model No.: |
DHD SD |
| Processing Type: |
Forging |
| Application: |
DTH Drilling, Coal Mining, Quarrying |
| Size: |
76, 90, 100, 110, 120, 130, 140, 150, 170mm |
| Package: |
Plastic Box |
| Payment: |
LC or Tt |
| Material: |
Steel +Carbide Bit |

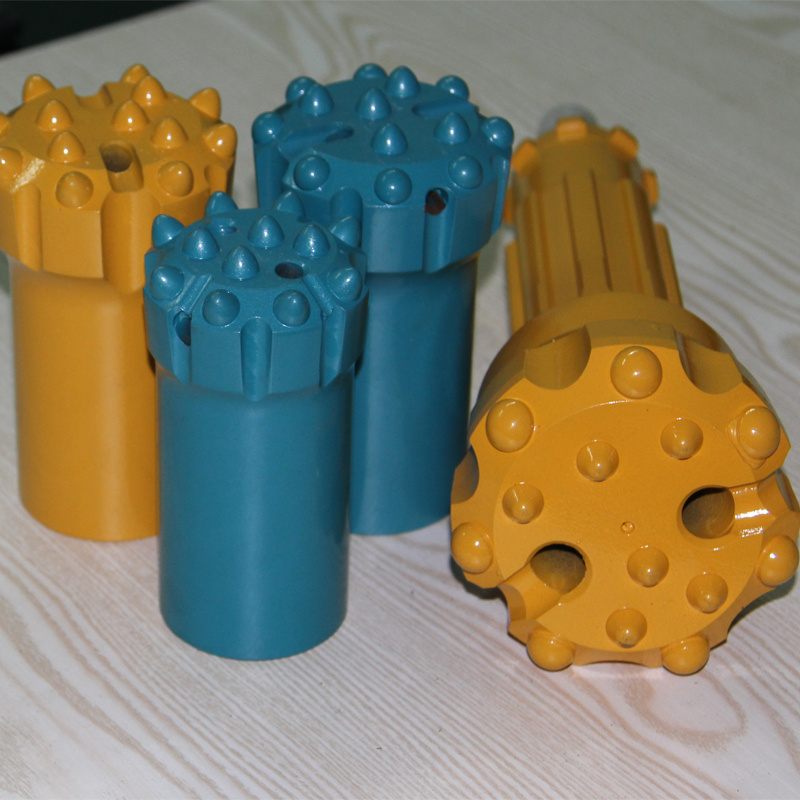

Product Description
Specifications:
Bit face shape selection:
1. Drop center bit
2. Concave face
3. Convex face
4. Double gauge face
5. Flat face bit
Carbide button shape selection:
1. Domed/round button
2. Parabolic/semi-ballistic buttons
3. Ballistic button
4. Sharp button
5. Flat button
Product details:
1. Product name: Flat face high air pressure dth bits.
2. Application: Flat face high air pressure dth bits down the hole caride bits were used for blast hole drilling. Working with dth hammer, mainly applied in mining, marble quarry or well drilling and other construction projects.
3. Feature: Tapered drill bits connect tapered drill steel of rock drill for drilling holes
4. Material: High quality carbide and high quality steel
5. Moq: No requirement for testing and trial order
We can design and manufature according to your requirment of diameter, number air holes and carbide button shape.
The information you may like to know before order:
1. Method of payment: T/t(telegraphic transfer)or western union or l/c at sight.
2. Handing time for an order: Based on order quantity, normally it takes 25 days for production. Only 2 or 3 days if we have stock on your request size.
3. Shipping way: Sample order, we suggest courier express like dhl/ups/tnt by air. Bulk order we suggest by sea or by air.
4. Quality control: We have our own experienced qc, there will be strict inspection and testing for every order before shipping out.
Production process:
1. Raw material-2. Making bits body-3. Making bit face-4. Heat treatment-5package.
About us:
Our factory has been specialized in manufacturing drilling tools and spare since 2000.
We have advanced technology and equipment.
Our technician has more that 10 years professtional working experience.
Rock drilling tools are exported throughout the word. Main market: Norway. Turkey. Canada. Australia. Brazil. Iron. India. Uae
We have professional technicians, advanced machine, responsible sales team
|
diam(mm) |
No.*Button dia |
connection |
item no. |
|
76 |
3*12 5*12 |
CIR76 |
QDZ876-CIR76 |
|
90 |
4*13 6*14 |
CIR90 |
QDZ1090-CIR90 |
|
100 |
5*13 6*14 |
CIR90 |
QDZ11100-CIR90 |
|
110 |
7*13 6*14 |
CIR90 |
QDZ13100-CIR90 |
|
120 |
8*13 6*14 |
CIR90 |
QDZ14120-CIR90 |
|
130 |
8*13 7*14 |
CIR90 |
QDZ15130-CIR90 |
|
120 |
8*13 6*14 |
CIR110 |
QDZ14120-CIR110 |
|
130 |
8*13 7*14 |
CIR110 |
QDZ15130-CIR110 |
|
140 |
8*13 7*14 |
CIR110 |
QDZ15140-CIR110 |
|
150 |
10*13 9*14 |
CIR110 |
QDZ19150-CIR110 |
|
160 |
10*14 9*16 |
CIR110 |
QDZ19160-CIR110 |
|
170 |
10*14 9*16 |
CIR110 |
QDZ19170-CIR110 |
Famous brand stems from the lasting quality, which is based on strict management and technological innovation. Located in TaiZhou city with flourishing economy and well-developed transportation system. Starting from the production of high quality mine tool drill bit, as chisel drill bits, cross drill bits and button drill bits. We import foreigner' S advanced technology and equipments to research and development DTH drilling products and hydraulic drifters drill bits. Through company' S efforts in recent years, Our products get continuous improvement, and obtained the domestic and foreign customers consistent high praise.
Product positioning market gradually shift from domestic to international markets, products exported to the United States, Germany, Britain, South Africa and so on more than 30 countries and regions, the international market established a good brand image and reputation.
Company can provide customers with regular import drilling machine, 90 domestic drilling tools, high air pressure DTH drilling tools and other products, can also according to customer' S use habit and requirements for design and processing, meet the demand of individual character. We warmly welcome the masses of customers to our company to visit, guide and communication, give us valuable comments and Suggestions.
