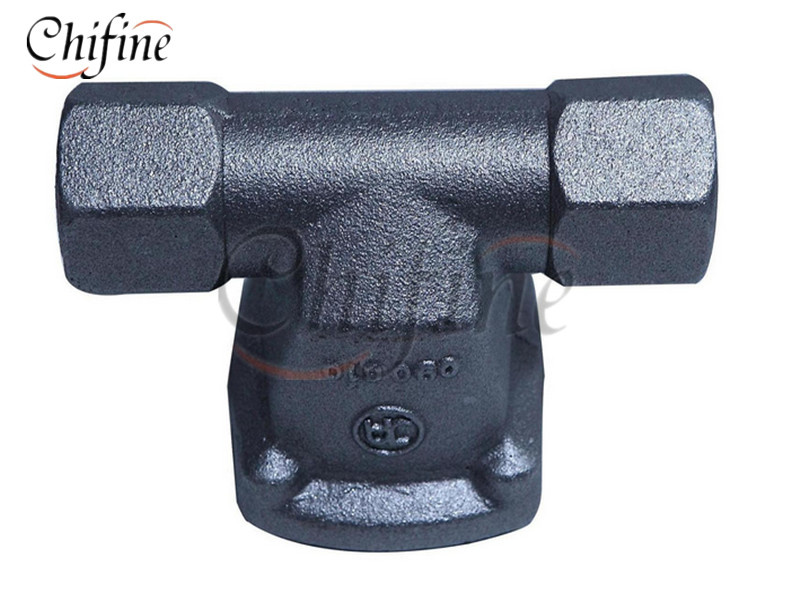

Grey Iron Sand Casting Machine Parts

Grey Iron Sand Casting Machine Parts
Price: US $ 1000-1500/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: CF-084
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Package: Pallet, Manmade Wooden Case or as Your Requirement
Certificate: ISO 9001 SGS
Origine: Qingdao China
Service: OEM and ODM
Delivery Time: 30 Days After Receiving The Payment
Tolerance: CT7-CT9
Machining Type: CNC Turning Milling Drilling Lathe
Process: Sand Casting+Machining
Heat Treatment: Normallizing ,Tempering ,Anealing ,
Brand: Chifine
Type: Clay Wet Sand
Machining: CNC Machining, CNC Tunring Miling Drilling Lathe
Material: Iron, Grey Iron
Surface Treatment: Sand Blast, Shot Blasting,Sand Blasting,Acid Clean

Product Description

Product Information:
1. Material: Grey Iron, Ductile Iron, Malleable Iron, Carbon Steel, Aluminum, Brass, Bronze, copper, zinc, Stainless Steel(Little) etc

2. Tolling process: Resin sand/Green Sand

3. Part unit weight range: 0.5kg-20000kg

4. Max/Min wall thickness requirements: 4mm-250mm

5. Heat Treatment: Annealing, Quenching and tempering, Normalizing

6. Surface treatment: Paint, Anti-rust oil, Hot dipping galvanized, Powder coating

7. Foundry Certification: ISO9001(2008)

8. Products application: Machinery applications, automotive industry, lighting equipment, household appliances etc

Our Inspection Equipment:
Direct-reading spectrograph,metallographic microscope,hardness tester,brinell hardness tester,thermometric indicator,universal testing machine,carbon and silicon analysis meter,magnetic powder flaw detector,digital ultrasonic flaw detector etc.
Our Service:
1.Your inquiry related to our products or prices will be replied in 12 hours.
2.Individual formula according to customers' special drawing requests.
3.Manufacturer with large capacity,ensures the fast production cycle after
confirming the order.
4.Protection of sales area and private information for all of our customers.

Quality Control:
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
Raw material control
Chemistry spectrum analysis
Mechanical property
Metallographic analysis
Ultrasonic testing
Magnetic testing
Radiographic testing
Dimension inspection
Visual inspection
Penetrant testing
Leak testing
Hardness test
Micro-structure tester after heat treatment

Machining Ability
Our machining shop located in Qingdao using the latest CNC equipment to provide our customer with high quality products.
Horizontal and Vertical Machining Center
CNC lathe and normal lathe
CNC drilling and milling Center
Other assistant equipment


.
Ductile Iron Castings:
1) molding process:Resin sand/Green Sand
2) Material:EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
3) Molding:Hand molding/Molding machine Z145/146/148/Molding line.
4) Possible Heat Treatment:Annealing
5) Industry involved:Municipal Construction / Fluid
/Automotive
6) Part unit weight range:0. 5kg-2000kgs
7) Max/Min wall thickness requirements:4mm-250mm
8) Manufacturer Certification:ISO9001(2000)/ TS16949
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.

Automative Casting Line:

• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);

Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).

• Product Size: 0-1000mm.

• Weight: 0.2kg-100kg

Resin Sand Casting

• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);

Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).

Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)

• Product Size: 0-1500mm.

• Weight: 10kg-5000kg

Shell Mould Casting

Shell casting is one of resin sand casting process.

It is suitable for thin-wall casting parts, be free from porosity.

• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);

Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).

Steel alloy; Aluminum alloy; Copper alloy.

• Product Size: 0-500mm.

• Weight: 50g-100kg.

• Wall thickness: 4-20mm

Lost Wax Casting

• Advanced wax-injection-machine and tool to ensure accurate wax-patten.

• Stable temperature and humidity environment make the wax-patten no deformation.

• Material:

Carbon steel; Stainless steel; Alloy steel.

Grey iron(GG20-GG35).

Ductile iron(GGG40-GGG60);

Malleable cast-iron

(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).

Aluminum alloy; Copper alloy.

• Casting size: 0-500mm.

• Casting weight: 50g-100kg

Stamping and Forging Line

• Stamping and forging equipment: 16T-300T press machine

• Automatic transport forging line

• Material: Carbon steel; Stainless steel; Alloy steel.

Aluminum alloy; Copper alloy.

Machining Shop

Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.

• Horizontal and Vertical Machining Center

• CNC lathe and normal lathe

• CNC drilling and milling Center

• Other assistant equipment
