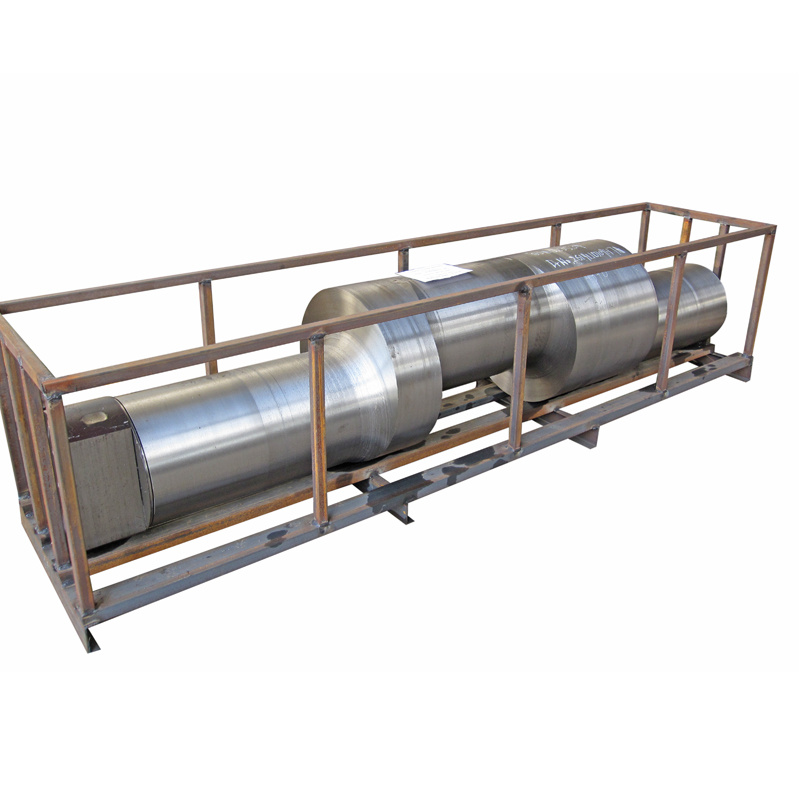

Forging Crank Shaft/Forged/4340/4140

Forging Crank Shaft/Forged/4340/4140
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Carbon, C-Mn Steel, Alloy: Max Length with Heat Treatment: 12m
Max Length :20m For Forging,: Max Weight: 80t for Forging, 120t for Ingot
Molding Style: Forging
Processing Object: Metal

Product Description

Forged Crank Shaft/Forging Crank Shaft/Forging/Forged Shaft
Others:
Forging generator shaft, forged crusher shafts, custom forged shaft, forging ship shaft, forged drive shaft, forged long shaft, forging steel shafts, forged propeller shaft, forging flanged shaft, forging round shaft, hot forging shaft, open die forging shaft, die forged shaft, free die forging shaft, forged rotor shaft, forging square shaft, forged industrial shafts, forging drum shaft, forged hollow shaft, forging wind power shaft, forged water turbine shaft, carbon/alloy/stainless steel shaft, forging shaft with step, forged step shaft, forging round shaft, heavy forging shaft, high-pressure rotor forged shaft, forging shaft with wind power, forging blower shafts.
Material:
42CrMo4, 4140, 4340, C45, SAE1045, AISI1045, S355JR, Q345, 18CrNiMo7-6, 30CrNiMo8, 34CrNiMo6, 17CrNiMo6, C20, 304, 316, H13

1. Forging style: Open die forging/free forging
2. Materials: Alloy steel, carbon steel, stainless steel
3. Specification: Max weight: 80tons for forging, 120tons for ingot, Max length: 12m with heat treatment, 20m for forging
4. Production Process: Ingot Buying---Chemical Composition Test---Heating---Forging---UT and Dimension Test---Normalizing & Tempering, Proof Machining---UT and Dimension Test---Sample Taken---Mechanical Property Test---Quenching & Tempering---Second Machining---UT and Dimension Test---Final Machining— MT and Dimension, surfaceness Test.
5. Application: Used for ship, power generation, metal processing machinery, metallurgy machinery, mine industry, etc.
6. UT test: 100% ultrasonic test according to EN10228, ASTM388, Sep 1921 C/c etc.
7. Factory Report: EN10204 3.1-----Chemical Composition, Mechanical Property, UT and MT, Heat Treatment report, Dimensions etc.
8. Inspection: Factory self respection or by the third party
9. Standard: ASTM, GB, DIN, BS, JIS, etc
10. Ship Classification Society: GL, BV, NK, LR, DNV, CCS, ABS
Quality Control System: ISO9001-2008
History:
has more than 20 years history in open die forging industry
Main Product:
forging parts, as shaft, ring, disk, tube, flange, bar, block etc.
Advanced Equipment:
In 2005, we introduced 70MN hydraulic oil press from Germany, it is the most advanced set in China, annual forging and production capacity could reach to 56000 tons or above.
Production Capacity:
ring could up to diameter 5.2 meters, forgeable piece length of 20 meters, weight of 120 tons.
Certificate:
Our company has got ISO9001-2008 quality certificate, GL, BV, NK, LR, CCS, ABS, DNV.
Cooperate Company:
Alstom in water and fire power, Siemens, TATA steel, GE, P&H in mining and so on.
