| Prod Model: |
G209 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Lifting Equipment |
| Model No: |
G209 |
| Surface: |
Galvanized Body |
| Package: |
Carton and Iron Pallet, Gunny Bag+ Iron Pallet, |
| Type: |
Bow Shackle |
| Certificate: |
CE, ISO |
| Shackle Material: |
45# |
| Loading Port: |
Qingdao |
| Progress: |
Forged |
| Material.: |
45# |
| Material: |
Steel |
Product Description

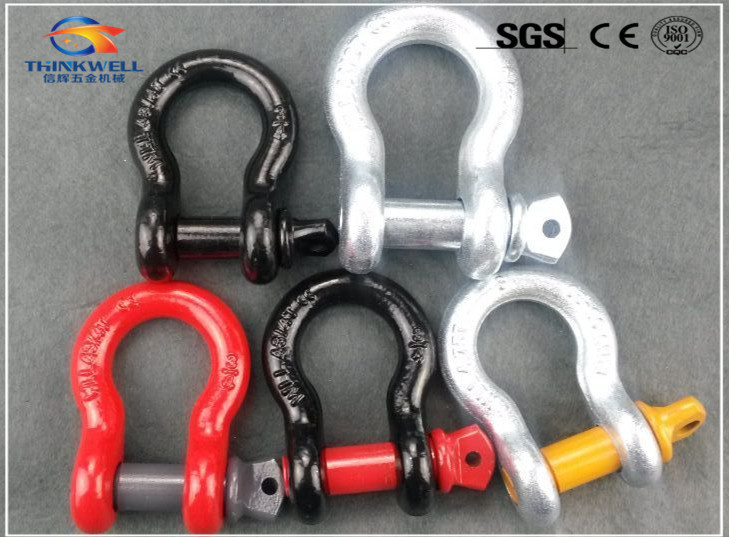

Forged Steel Us Type G209 Screw Red Pin Anchor Shackle
Material: Carbon steel,alloy steel, stainless steel also avaliable
Production Standards: American standard,
Surface: Galvanized (hot dip and electroplating), painting, self colored, zinc plated
Process: Drop forged Material: Bow and pin high tensile steel, quenched and tempered
Safety Factor: MBL equals 4 X WLL and 6 x WLL
Standard: EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A
Finish: Hot dipped galvanized
Temperature Range: -20° C up to +200° C
Packing: Gunny bag, wooden case, plastic drum
Stock No. | Nominal Size(in.) | W.L.L.(tons) | Weight(Lbs.) |
| TW-S017 | 3/16 | 1/3 | 0.06 |
| TW-S018 | 1/4 | 1/2 | 0.10 |
| TW-S019 | 5/16 | 3/4 | 0.18 |
| TW-S020 | 3/8 | 1 | 0.31 |
| TW-S021 | 7/16 | 1 1/2 | 0.38 |
| TW-S022 | 1/2 | 2 | 0.72 |
| TW-S023 | 5/8 | 3 1/4 | 1.37 |
| TW-S024 | 3/4 | 4 3/4 | 2.35 |
| TW-S025 | 7/8 | 6 1/2 | 3.62 |
| TW-S026 | 1 | 8 1/2 | 5.03 |
| TW-S027 | 1 1/8 | 9 1/2 | 7.41 |
| TW-S028 | 1 1/4 | 12 | 9.50 |
| TW-S029 | 1 3/8 | 13 1/2 | 13.53 |
| TW-S030 | 1 1/2 | 17 | 17.20 |
| TW-S031 | 1 3/4 | 25 | 27.78 |
| TW-S032 | 2 | 35 | 45.00 |
| TW-S033 | 2 1/2 | 55 | 85.75
|
Packing: Carton and iron pallet, gunny bag+ iron pallet, carton+ wooden pallet
Advantageous Service.
1. Customers' special need is welcomed, from mold to samples within 10 days.
2. With 10 years' exporting experience, all inquiries responded within 12 hours.
3. Exported to over 50 countries, products test reports provided on request.
4. ISO, CE Certificated, product quality strictly controlled by QC depart.
5. No MOQ limit, Timely delivery, High quality and competitive prices.
6. Our Creed: Better because of Specialization.
Qingdao Thinkwell Hardware & Machinery Co.Ltd is a professional factory to make rigging hardware, electric power fittings, etc, the factory covers an area of 10,000 square meters and its architectural area is 5,000 square meters, it has over 160 staff, including 5 engineers, 15 specialized Technician, two forging workshops, one mold workshop, main equipment are 1000T/630T/400T/300T/160T forging machine, air hammer, heating furnace, rolling machine, tapping machine, blasting machine and so on.
We also manufactures hooks, shackles, turnbuckles, wire rope clips, load binders and other rigging hardware accessories.
Our Service, Your Safety!
You are more than welcome to our factory!
Qingdao Thinkwell Hardware & Machinery Co., Ltd is the manufacturer deals in Rigging Hardware, Forged Engine Connecting Rod and Automobile Forging Parts over 10years.
Our rigging hardware factory covers an area of 8, 000 square meters and its architectural area is 5, 000 square meters. It has over 100 staff, including 3 engineers, 10 specialized technican, owned advanced machinery and equipment.
Rigging Hardware Equipment:
1)1000 T forged pressing machine,
2)160T/300T/400T/630 T forged pressing machine,
3)2 production line, include a set of punch, thread rolling machine, tapping machines, lathes, milling machines.
In 2009, our company invest over five millions to our cooperate company and bulit two new advanced intermediate frequency induction heating, forging forming, heat quenching forging production lines to produce Automobile forging parts and Engine Connecting Rod. In April of 2010, get TS16949 international quality system certification. Our Auto forging parts and Connecting Enjoying good reputation in domestic and world market because of good quality and competitive price.
Main Equipment for Automobile Forging parts and Connecting Rod:
1)1600T/1000T/630T Forged Pressing Machine
2)800 kw intermediate frequency induction furnace
3)The pusher-type continuous tempering furnace
Rigging Hardware Products: Load Binders, Turnbuckles, Shackles, Hooks, Wire Rope Clip, Wire Rope Thimbles, Eye Bolts&Nuts, Connecting Links, Anchor, Chain Accessories...etc.
Automobile Forging Products:
1. Automobile, engineering machinery forging parts.
2. Automobile steering arm, rack forging parts
3. Automobile, engineering machinery engine connecting rod assembly
Customized forging parts welcomed
"Our Service, Your Safety", "Customers Demand, Our Pursuit ". To provide the most suitable products and pragmatic services is our firm belief. We can design and manufacture varies of products according to customers requirements. We have been putting the priority to the QUALITY, SINCERITY, EFFICIENCY, and SERVICE.
Sincerely wish long-term cooperation between you and us. Warmly welcome to our company for a visit.
