| Prod Model: |
LZCK-55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy: |
0.5% |
| Standards: |
GB1208-2006;IEC 60044-1;Ntc 2205 |
| Safety Factor Rating: |
< 5 |
| Rated Frequency: |
50Hz or 60Hz |
| Environment: |
Outdoors or Indoors |
| Rated Secondary Current: |
5A or 1A |
| Secondary Winding Power Frequency Withst: |
3kv/1min |
| Application: |
Position Sensor |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

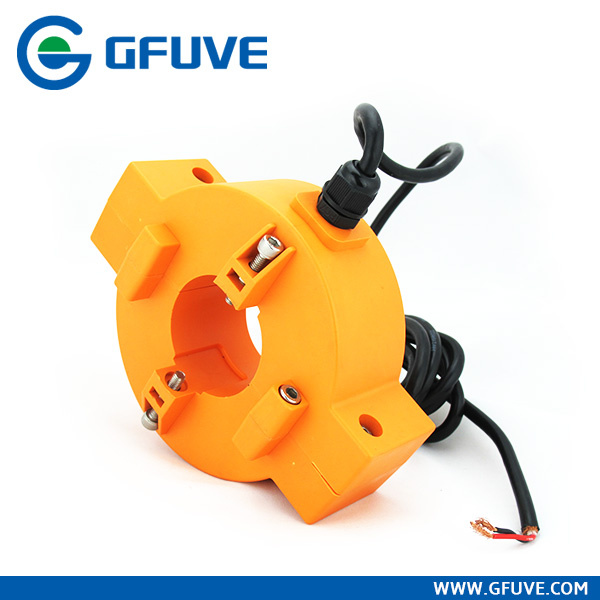

200/5A 0.5s class IP65 Outdoors Split Core Current Transformer
![]()
![]()
![]()
LZCK series instrument current transformers applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV, and microcomputer protection. This type of current transformer employs imported silican steel which with high permeability as magnetic material, have the characteristics of Small magnetic circuit loss and can be cut, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.
Working conditions:
Ambient temperature: -35~+55.
Environment: Outdoors or indoors
The Height of above sea level: 0~ 3000m.
Atmosphere conditions: No highly polluted, errosion, erosiveness, radioactivity gases.
(continuous working under the rated current is allowed)
(P2 represents for primary polar end, S1, S2 represent for secondary polar end
P2 and S2 are subtractive polarity.
Technical parameters: :
Rated frequency: : 50Hz or 60Hz
Rated secondary current: 5A or 1A
Secondary winding power frequency withstand voltage: 3kV, 1min
Safety Factor Rating (FS) < 5
Standard of Application: GB1208-2006; IEC 60044-1; NTC 2205
Accuracy Class: 0.5 or 1;
Flame retardant ABS plastic shell or PC inside the filling, jaw waterproof apron.
| Item Name | Range of primary rated current | Range of Rated load | Aperture
(mm) | Description (mm) | (Weight)
(kg) |
| LZCK-55 | 100-1500A | ≤10VA | Φ55 | 180×138×52 | 2 |
| LZCK-185 | 300-3000A | ≤5VA | Φ185 | 350×283×55 | 4.5 |
