Prod Model: |
QDYL |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Pneumatic Hydraulic Press Machine |
Character: |
H-Frame |
Power: |
Hydraulic |
Forging Forming Method: |
Mold Forging |
Product Description

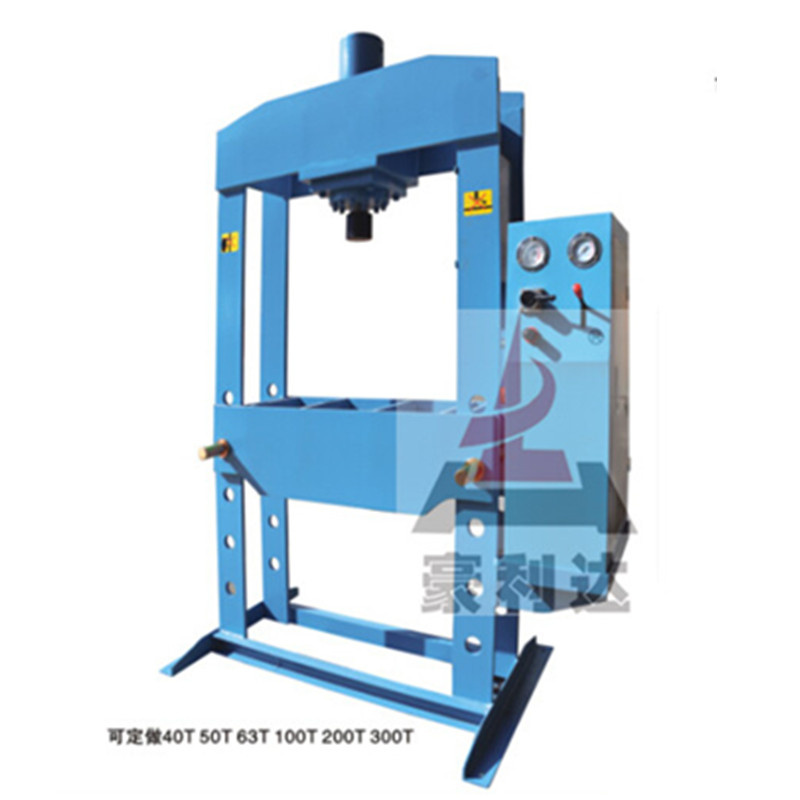

Pneumatic Hydraulic Press Machine
General introduction:
1.adopts door type steel structure and one piston and double oil cylinders
2.High-low pressure pump with parallel connection
3.Manual direction changing to control stroke of piston rod
4.hydraulic pressure drive workbench to lift
5.Fit for dismantling, installing, straightening, drawing and moulding for machinery industry
6.Fit for cold riveting and moulding of pot-angle tooth
7.It is safe and easy to operate
Technical parameter:
| A | B | F | D | Pressure | Stroke |
QDYL-25 | 1060 | 460 | 250~800 | 580 | 250KN | 250 |
QDYL-30 | 1060 | 460 | 250~800 | 580 | 300 KN | 250 |
QDYL-40 | 1110 | 480 | 300~800 | 620 | 400 KN | 300 |
QDYL-50 | 1220 | 560 | 300~800 | 650 | 500 KN | 300 |
QDYL-63 | 1220 | 560 | 300~850 | 650 | 630 KN | 300 |
QDYL-100 | 1310 | 650 | 350~850 | 700 | 1000 KN | 350 |
QDYL-150 | 1460 | 720 | 350~850 | 760 | 1500 KN | 350 |
QDYL-200 | 1520 | 760 | 350~850 | 800 | 2000 KN | 350 |
Why Choose us:
1.32 years' design,development and produce experience
2.Professional R&D team
3.Strict QC
4.A good pre-sale and after-sale service
5.Can design and make according to customer's requests
Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment. We obtained tens of national patent on some related products. Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.
We are located in Qingdao city, Shandong province, with convenient transportation access. Our factory is thirty minutes' drive to Qingdao airport, and two hours' drive to the loading port.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have passed the ISO9001-2008 international quality system authentication. We gained many honors in automobile maintenance and repair industry, we are a standing member of the China Automobile Maintenance and Repairing Equipment Trade Association, One of the ten most influential company in automobile maintenance and repair industry, we are also a designated factory by General Armament Department of CPLA.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Our sales network covers North America, South America, European, South Africa, Russia, Asia, Middle East, etc.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are also sincerely looking for steady and long-term cooperative local agents in different areas. We are looking forward to forming successful business relationships with new clients around the world in the near future.
