Prod Model: |
JIS1168 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
6mm-24mm |
Process: |
Drop Forged |
Quality: |
High |
Testing: |
Qualified |
Export Market: |
Global |
Other: |
Customized |
Material: |
Stainless Steel |
Connection: |
Common Bolt |
Head Style: |
Round |
Standard: |
JIS |
Grade: |
4.8 |
Finish: |
Polishing |
Type: |
JIS1168 Eye Bolt |
Application: |
Lifting Industry |
Product Description

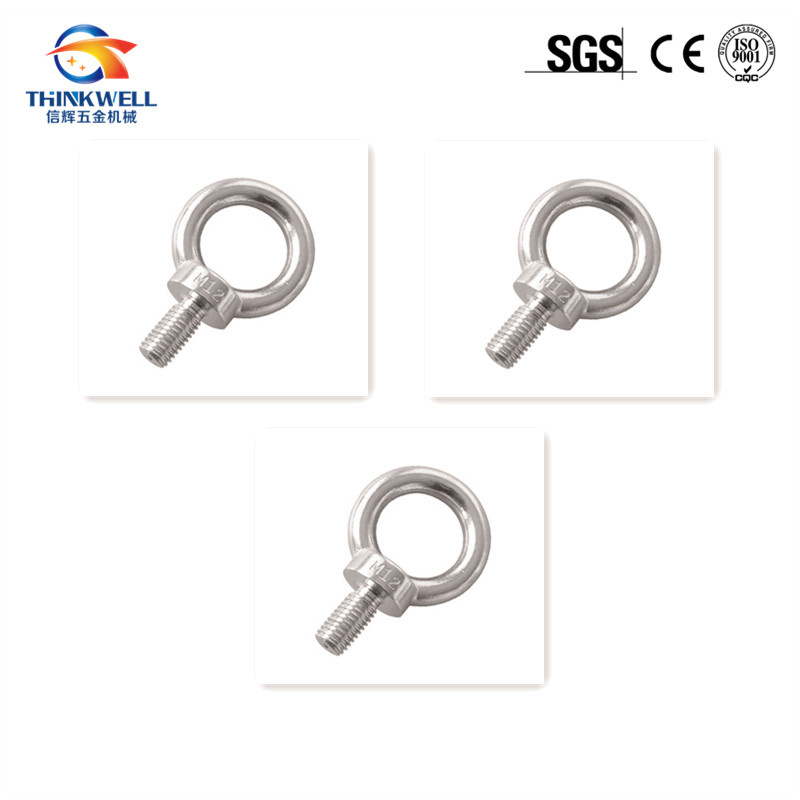

Factory Price Stainless Steel JIS1168 Eye Bolt
1. Model: JIS1168
2. Materials: stainless steel(AISI)304/316
3. Surface: Polished
4. Process: Drop forged
5. Packing: Carton, then in pallet
6. Special specifications and marks can be made according to customers' requirements
Origin: China
FOB port: Qingdao
Lead time: 15~45 Days
Main export market: US, Australia, European countries, India,etc
Standard: CE, ISO
Brand: Thinkwell
EYE BOLT JIS B 1168 |
|
Size | Dimension (in) | S.W.L.(Ton) | Weight(lbs) |
MM | INCH | A | B | C | D | H | L |
M8 | 5/16U | 1.28 | 0.79 | 0.25 | 0.63 | 1.31 | 0.59 | 0.08 | 0.09 |
M10 | 3/8 U | 1.61 | 0.98 | 0.31 | 0.79 | 1.63 | 0.71 | 0. 15 | 0. 15 |
M12 | 1/2 U | 1.97 | 1. 18 | 0.39 | 0.98 | 2.01 | 0.87 | 0.22 | 0.31 |
M16 | 5/8 U | 2.36 | 1.38 | 0.49 | 1. 18 | 2.36 | 1.06 | 0.45 | 0.57 |
M20 | 3/4 U | 2.83 | 1.57 | 0.63 | 1.38 | 2.8 | 1. 18 | 0.63 | 0.95 |
M22 | 7/8 U | 3. 15 | 1.73 | 0.71 | 1.57 | 3. 11 | 1.38 | 0.79 | 1.23 |
M24 | 1U | 3.54 | 1.97 | 0.79 | 1.77 | 3.54 | 1.5 | 0.95 | 1.87 |
M30 | 1-1/4U | 4.33 | 2.36 | 0.98 | 2.36 | 4.33 | 1.77 | 1.5 | 3.74 |
M36 | 1-1/2U | 5.24 | 2.76 | 1.24 | 2.76 | 5. 18 | 2. 17 | 2.3 | 6.61 |
M42 | 1-3/4U | 5.94 | 3. 15 | 1.4 | 3. 15 | 5.93 | 2.56 | 3.4 | 9.91 |
H48 | 2U | 6.69 | 3.54 | 1.57 | 3.54 | 6.69 | 2.76 | 4.5 | 14.76 |
H64 | - | 8.27 | 4.33 | 1.97 | 4.33 | 8.27 | 3.54 | 9 | 24.89 |
M80 | - | 10.47 | 5.51 | 2.48 | 5. 12 | 10.35 | 4. 13 | 15 | - |
M90 | - | 11.89 | 6.3 | 2.8 | 5.91 | 11.85 | 4.72 | 18 | - |
Ml00 | - | 13.39 | 7.09 | 3. 15 | 6.69 | 13.98 | 5. 12 | 20 | - |
Main products also comprise Chains, Hooks, Shackles, Turnbuckles, Wire rope clips, Load binders and other rigging hardware accessories.
Qingdao ThinkwellHardware & Machinery Co.Ltd is a professional factory to make rigging hardware, electric power fittings, etc, the factory covers an area of 10,000 square meters and its architectural area is 5,000 square meters, it has over 160 staff, including 5 engineers, 15 specialized Technician, two forging workshops, one mold workshop, main equipment is 1000T/630T/400T/300T/160T forging machine, air hammer, heating furnace, rolling machine, tapping machine, blasting machine and so on.
ADVANTAGEDS:
1 Quick response: all inquiries responded within 12 hours
2 Experience: reliable supplier & over 20 years in manufacturing rigging hardware, exported to over 50 countries
3 Timely delivery: from mold to samples within 10 days
4 Certification: CE, ISO, products test reports provided on request, control for each product
5 Strong ability for R&D
6 Transportation: close to Qingdao Port & Airport, providing great advantages to trade
7 Competitiveness: high-quality and the lowest ex-factory prices with a wide range of shipping ways
8 NO MOQ limit, customers' special need is welcomed
Our creed: better because of Specialization
Our Service, Your Safety!
You are more than welcome to our factory!
CONTACT:
Tel:0086 532 66968781
Fax: 0086 532 66968780
MOB: 0086 13589342312
Web:www.chinathinkwell.com
Add: NO107, Yanyang Road, Chengyang District, Qingdao China
Welcome to inquiry!
Qingdao Thinkwell Hardware & Machinery Co., Ltd is the manufacturer deals in Rigging Hardware, Forged Engine Connecting Rod and Automobile Forging Parts over 10years.
Our rigging hardware factory covers an area of 8, 000 square meters and its architectural area is 5, 000 square meters. It has over 100 staff, including 3 engineers, 10 specialized technican, owned advanced machinery and equipment.
Rigging Hardware Equipment:
1)1000 T forged pressing machine,
2)160T/300T/400T/630 T forged pressing machine,
3)2 production line, include a set of punch, thread rolling machine, tapping machines, lathes, milling machines.
In 2009, our company invest over five millions to our cooperate company and bulit two new advanced intermediate frequency induction heating, forging forming, heat quenching forging production lines to produce Automobile forging parts and Engine Connecting Rod. In April of 2010, get TS16949 international quality system certification. Our Auto forging parts and Connecting Enjoying good reputation in domestic and world market because of good quality and competitive price.
Main Equipment for Automobile Forging parts and Connecting Rod:
1)1600T/1000T/630T Forged Pressing Machine
2)800 kw intermediate frequency induction furnace
3)The pusher-type continuous tempering furnace
Rigging Hardware Products: Load Binders, Turnbuckles, Shackles, Hooks, Wire Rope Clip, Wire Rope Thimbles, Eye Bolts&Nuts, Connecting Links, Anchor, Chain Accessories...etc.
Automobile Forging Products:
1. Automobile, engineering machinery forging parts.
2. Automobile steering arm, rack forging parts
3. Automobile, engineering machinery engine connecting rod assembly
Customized forging parts welcomed
"Our Service, Your Safety", "Customers Demand, Our Pursuit ". To provide the most suitable products and pragmatic services is our firm belief. We can design and manufacture varies of products according to customers requirements. We have been putting the priority to the QUALITY, SINCERITY, EFFICIENCY, and SERVICE.
Sincerely wish long-term cooperation between you and us. Warmly welcome to our company for a visit.
