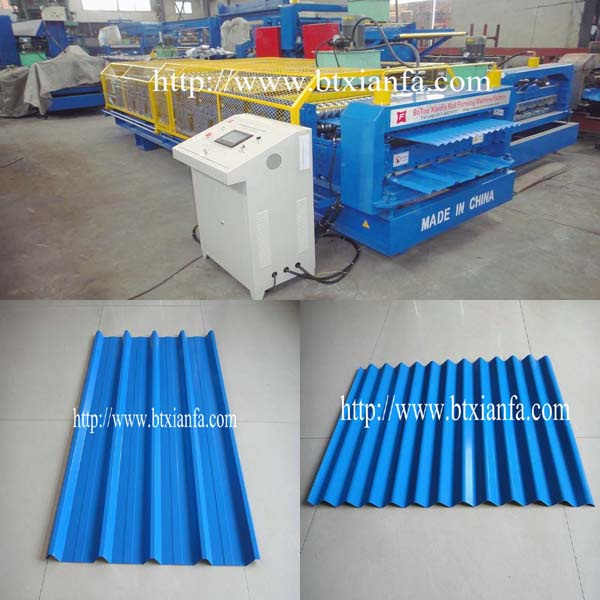

Double Deck Profile Roofing Forming Machine CE Standard (XF845-840)

Double Deck Profile Roofing Forming Machine CE Standard (XF845-840)
Price: US $ 16900-18900/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: XF845-840
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Process Precision: Within1.00mm
Control System: PLC
Color: Blue
Usage: Roof
Productivity: 8-10m/Min
Power(W): 4+4kw
Voltage: 380V 50Hz 3phase
Dimension(L*W*H): 7.4*1.48*1.71m
Weight: About 5.6t
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Type: Roll Forming Machine
Forging Forming Method: Roll Forming Machine

Product Description

Introducation

Machine consist of uncoiler and its base, coil sheet guiding equipment, roll forming system, post cutting equipment, pressing equipment, post-cutting system, hydraulic station, controlling system, supporter table.

Machine Feature:

1. Precise forming
2. High-solid forming stand guarantees the goods and uniform high quality of final productd
3. The operation automatically minimizes the tolerance of cutting length

Products Feature:

1. A stylish and attractive design, giving the apperance of a traditional roof tile.
2. Resistant to frost, heat, hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.
3. The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa, civil construction etc.


Components and Technical Specification


1. Manual Uncoiler

Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity: 5T
Inner diameter: 500-508mm

2. Feeding Table

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

3. Hydraulic System

Power: 4kw, Hydraulic oil: 40#
Hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

4. Computer Control Cabinet

The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: Automatic and manual one. The system is easy to operate and use.
PLC: EURA

5. Cutting System:

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment

6. Output Table

It adopts welded steel and supported roller to transmit the products, which is used to collect the finished products.

Main Roll Forming Machine:

Material of rollers: 45# steel, roller surfaces polishing, chrome hard plating, The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.


Double Deck Profile Roofing Forming Machine CE Standard

1. ISO/CE certificate
2. Solid shaft
3. PLC control, eura or Panasonic
4. Exported to Nigeria & Africa
5. Low energy cost
No. main parameter of Double Deck Profile Roofing Forming Machine CE Standard
1 Suitable to process Color steel plate
2 Width of the plate 1000mm
3 Rollers Up layer: 9 rows,
Down layer: 11 rows
4 Dimensions 7.4*1.48*1.71m
5 Power 4+4kw
6 Thickness of the plate 0.3-0.6mm
7 Productivity 8-10m/min
8 Material of the cutting blade Cr12
9 Diameter of the roller Φ 70mm
10 Weight About 5.6T
11 Voltage 380V 50Hz 3phases
12 Rolling material Forging Steel 45#
13 Processing precision within 1.00mm
14 Rolling material Forging Steel 45#
15 Control system PLC control

Botou Xianfa Roll Forming Machine Factory
It is established in 1996, specializing in colored steel tile forming machinery. With the development of the economy, colored steel tile is widely used in constuction industory. Therefor customers need not only large quantity but also high quality. Our factory produced many now machinery such as CNCauto forming machine. Colored steel tile forming machine, colored steel tile equipment, colored steel tile machinery, Antique glazed tile line, roof load bearing line, compound board line, roll shutter door forming machine and dainpipe on the basis of nomal roll forming machine. At the same time we also produce Anode pole equipment of ESP, fast guardrail equipment and exc. Our products such as C&Ztype purline machine cutting systom, automatic punching have already reached the advanced level of the other suppiers. Our products cover all over the country and also are exported to Russia, Myanmar, Mongolia, Rumania, Iraq, south Korea, Canada, Mozambique Bahrain, Bolivia, Angola, Paraguay, Turkey, Sri Lanka, etc. Beautifu appearence, reasonable construction, pretty design of the tile won good reputation from colored tile products line and oversea customers.
