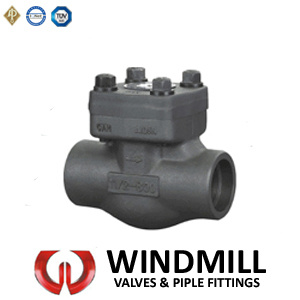

DIN API CE ISO Gear Forged Swing Check Valve A105 F304 F316

DIN API CE ISO Gear Forged Swing Check Valve A105 F304 F316
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Welding
Structure: Swing
Function: Ddcv Double Lobe
Application: Household Usage
Material: Forged Steel

Product Description

Production Standards:
Check Valve Design: API 6D; BS 1868
Face to face: ANSI B16.10
Flange Ends: ANSI B16.5; ANSI B16.47
Inspecting/Testing: API 598 / API 6D

Design Description:
Bolted Cover
Piston Lift Disc, Full Bore Design
Renewable Seat Rings / Integral Seat Rings.
Spring Loading Disc
Horizontal Servece
Size: 2" - 24"
Pressure: 150LB - 2500LB
Connection: Flanges, RTJ Flange, Butt Weld

Material:
Carbon Steel, Forged Steel, Stainless Steel
GS-C25, LCB, LCC, LC1, CF8, CF8M, CF3, CF3M,
WC6, WC9, C5, C12, C12A
Specifical Material:
Duplex Steel, Super Duplex Steel, Inconel
GR4A, GR6A, CY-40, Inconel 600

WINDMILL Swing Check Valve Feature:
Bolted Bonnet Cap
Pressure Seal Bonnet
Swing Type, Anti-rotation Disc
Renewable Seat Rings
Non-penetrate Disc Shaft
Horizontal Servece
Size: 1/2"-48"
Pressure: 150LB-2500LB
Connection: Flanges, RTJ Flange, Butt Weld, Groove

Material:
Carbon Steel, Forged Steel, Stainless Steel: WCB, LCB, LCC, LC1, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, C12A
Specifical Material: Duplex Steel, Super Duplex Steel, Inconel: GR4A, GR6A, CY-40, Inconel 600
Wenzhou Windmill Valve Co., Ltd., a valve manufacturer, located at China famous Pump&Valve Town--Oubei, Wenzhou. Our factory specialized in all kinds of
industrial valves, consistent conformed to international and national standards, we have gained worldwide market. The past years, 90% of our products offered for Europe, America, Middle East, Southeast Asia.
Product quality and service reliability are essential to the success of our business, we stric tly control every procession such as the purchasing of raw material, the development of innovative designs and the advanced checking method and so on, we consider it is our company's life to give every customer fully satisfaction.
Products range: ball valve, gate valve, check valve, globe valve, ect.
Pressure range: Class150-Class2500, Size range: 1/2"-42"
Temperature: -196 to 649 (-3200F to 12000F)
Operation type: manual, gearbox, chain wheel, pneumatic, electronic, hydraul IC-pneumatic etc.
Connection End: RF, BW, SW, NPT, wafer type, etc.
Materials (casting): WCB, WCC, LCB, LCC, LC1~3, CF8, CF3, CF8M, CF3M, CF8C, CN7M,
CA15, C5, WC5, WC6, WC9, GR4A, etc.
Materials (forging): A105, LF1, LF2, F11, F22, F5, F304, F304L, F316, F316L, F316H, F321,
F347, F51, F60, etc.
According to the different project and different medium, we effectively meet customer's
requirments with RT, UT, MT, PT test standard. The remarkable quality and service are the
WINDMILL person's forever pursue.
