Crystallizing Wheel Used for Copper Rod Ccr Line

Crystallizing Wheel Used for Copper Rod Ccr Line
Price: US $ 15000/Piece
Trade Terms: others
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: diameter 1820mm (1800mm)
Markets: Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Material: Silver & Copper Alloy
Life Span: 6000t-10000t
Casting Method: Special Casting
Casting Form Material: Cu-AG
Casting Metal: Copper
Casting Form Usage Count: to Produce 6000-10000t Copper Rod

Product Description

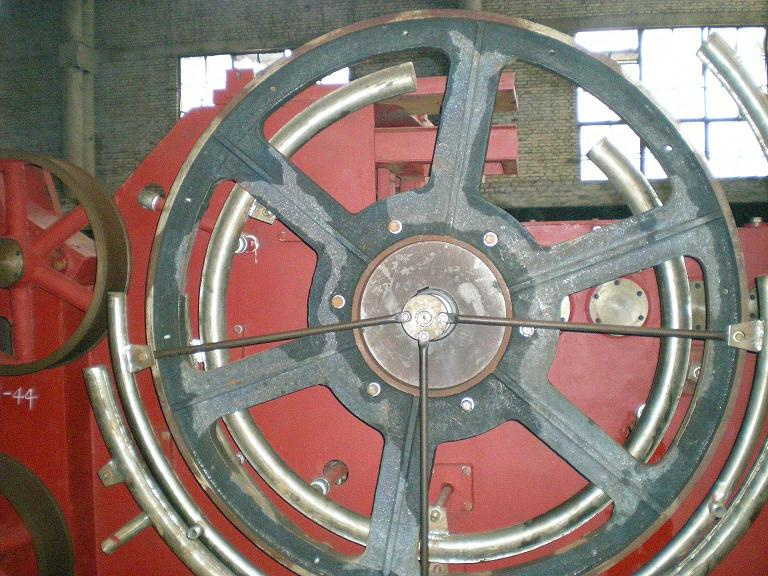

       Crystallizing wheel
Five-wheel continuous casting machine       1 set (patent No.: ZL00244512.3)
                                                φ1810mm
Crystallizing wheel dia.                                       φ1810mm
                                           1.84-2.814r/min
Rotation speed of crystallizing wheel                         1.84-2.814r/min
                                         10.17-15.56  m/min
Casting bar speed                                     10.17-15.56  m/min
                                                     2250mm²
Casting section                                                 2250mm²
Y132S-4                                     5.5 kw 1440r/min ()
Motor Y132S-4                       5.5 kw 1440r/min (frequency conversion)
                                                 0.3-0.5Mpa
Cooling water pressure                                         0.3-0.5Mpa
                                     170m³/h()
Cooling water consumption                    170m³/h (soften water is the best)
                                                        <35ºC
Cooling water temperature                                           <35ºC
                                           2.2KW 1400r/min
Lifting motor of casting ladle                                2.2KW 1400r/min
                                           0.75KW 1390r/min
Lifting motor of strobe                                     0.75KW 1390r/min
                                            QGBZ250-600-MB3
Tension pulley cylinder                                   QGBZ250-600-MB3
                                            QGBZ200-125-MB3
Pressing pulley cylinder                                   QGBZ200-125-MB3
                                              QGBZ160-125- MB3
Lifting cylinder                                          QGBZ160-125- MB3
We, Deyang Dongfang Zhuoyue Electrotechnical Equipment Co., Ltd are located in Deyang of China, the major technology and equipment manufacturing base. Now, our manufacturing factory building covers an area of more than 10, 000 square meters. We have more than 100 sets of large and medium-sized processing and manufacturing equipment, and a well-trained design, marketing, managing, machinery processing and equipping team composed of nearly 200 people.
We can manufacture various of complete plant(the latest model in domestic market), such as, Aluminium&Alloy Rod Continuous Casting And Rolling Line, Copper Rod Continuous Casting and Rolling Line, Tubular Stranding Machine, Rigid Frame Stranding Machine, Continuous Lead Extruding Line, Straight-line Aluminium &Alloy Rod Breakdown Machine, Straight-line Copper Rod Breakdown Machine, etc.
We have strong production ability and excellent sales team, we sell our products to our user directly, also, we always sell our products by some trading company or middle trader. We exported so many products to other countries such as Kazakhstan, Indonesia, India, Thailand, Korea, Ukraine, Mexico, Brazzil, Vietnam, Argentina, Kenya and so on.
We would like to provide the high-quality products and the good service, meanwhile, we will quote you the lowest market price.
We will be together with all the staff and workers, wholeheartedly offer our service, wait for your presence and stride forward with you hand in hand towards a brighter future.
